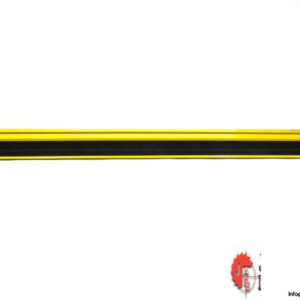

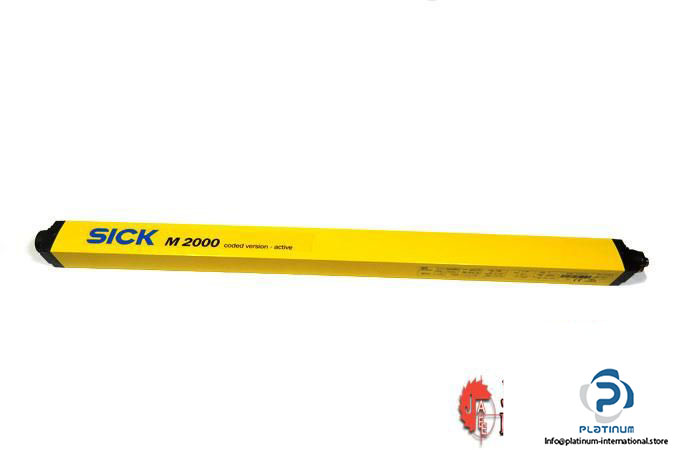

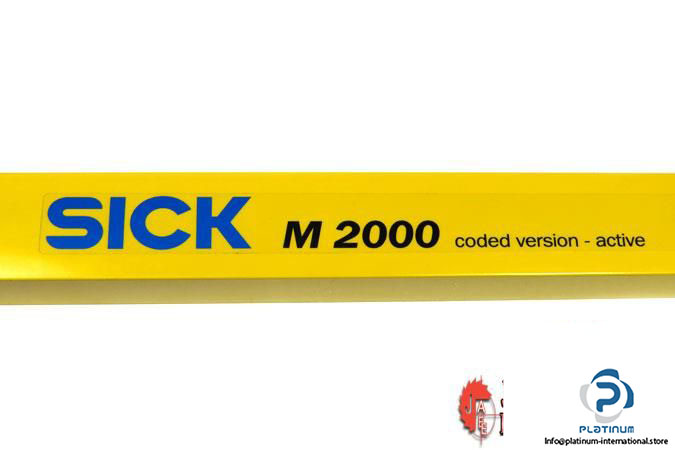

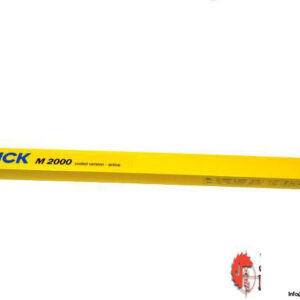

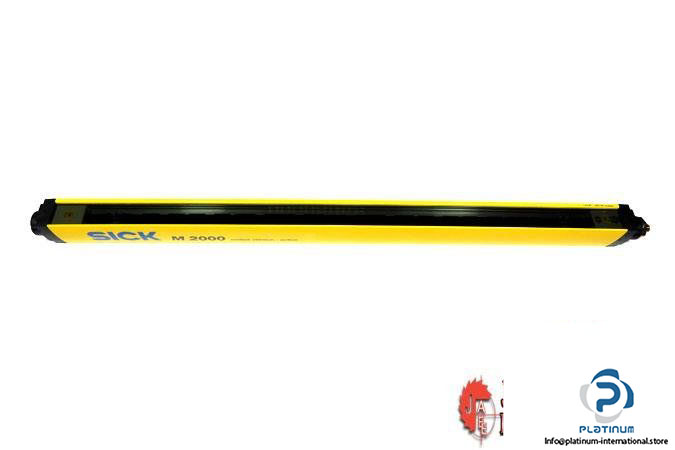

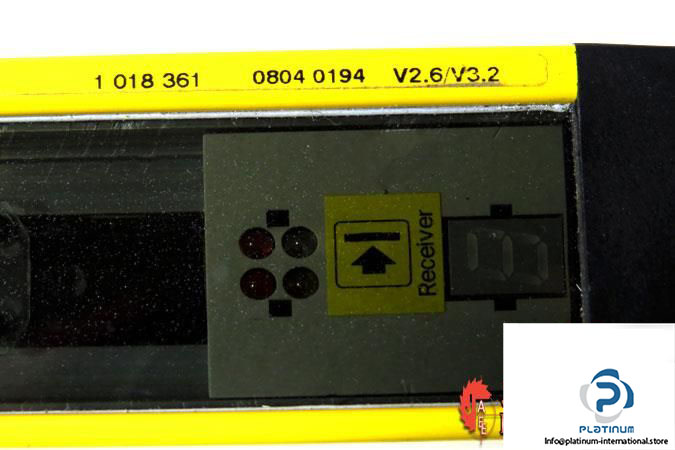

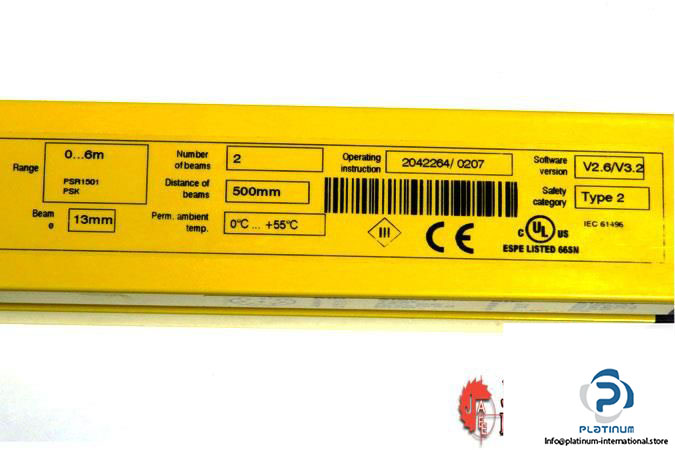

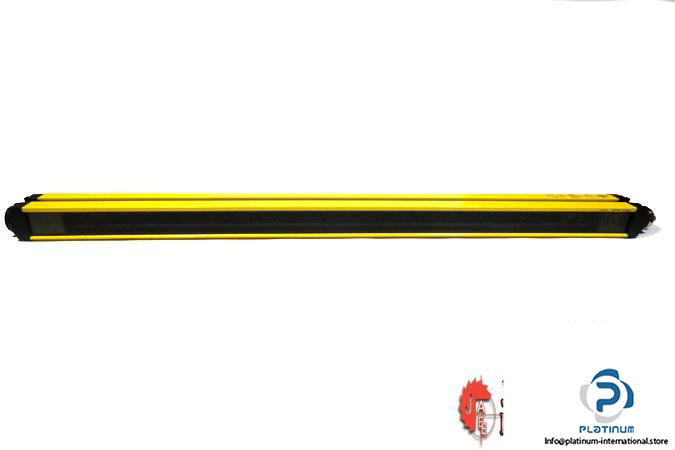

Sick M2000 Standard A/P M20Z-02550A122 Multiple Light Beam Safety Device

Manufacturer: SICK

Type: MULTIPLE LIGHT BEAM SAFETY DEVICE

Model: M2000 STANDARD A/P

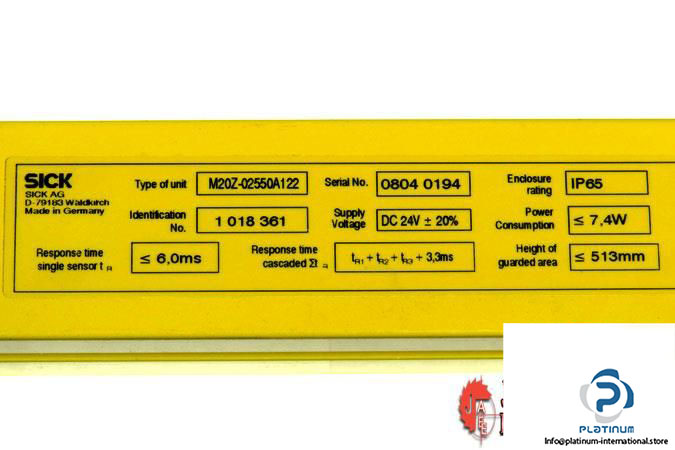

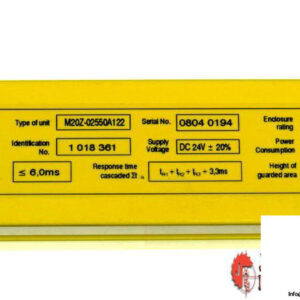

Type Code: M20Z-02550A122

Part No.: 1018361

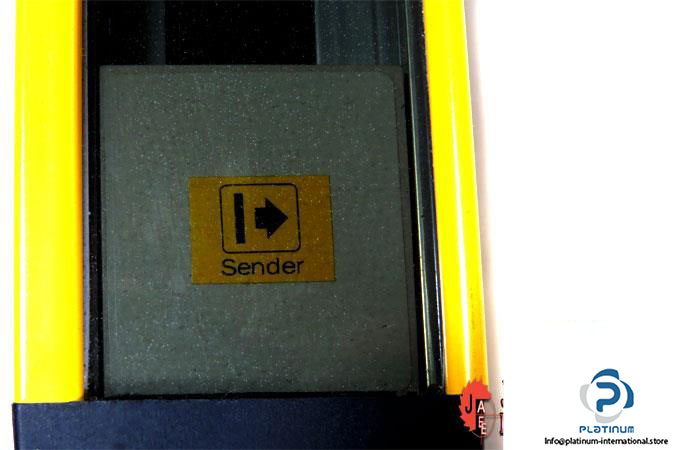

System Part: Sender / Receiver in One Housing

Scanning Range: 0 m … 6 m

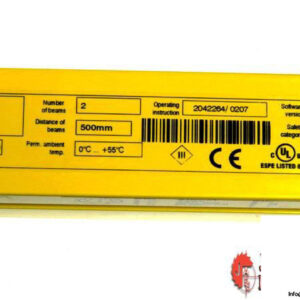

Number of Beams: 2

Beam Separation: 500 mm

Response Time: 7 ms

Beam Diameter: 13 mm

Wave Length: 950 nm

Synchronization: Optical Synchronization

Safety Type: Type 2 (IEC 61496-1)

Safety Integrity Level: SIL1 (IEC 61508) , SILCL1 (EN 62061)

Test Rate (Internal Test): 13 /s (EN ISO 13849)

Maximum Demand Rate: ≤ 8 min?¹ (EN ISO 13849)

Supply Voltage: 24 V DC

Power Consumption: ≤ 7.5 W

Output Type: 2 PNP Semiconductors

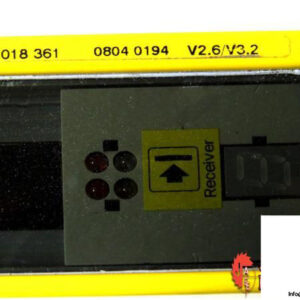

Software Version: V2.6/V3.2

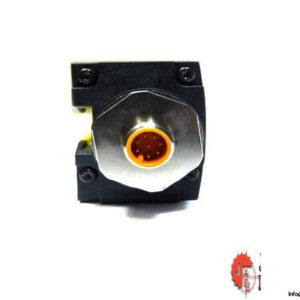

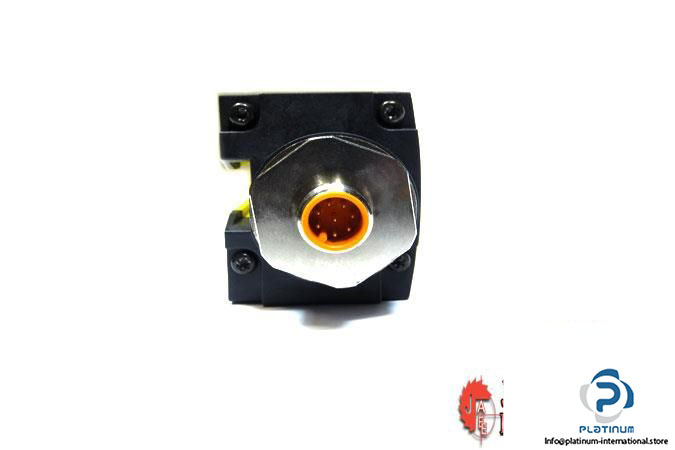

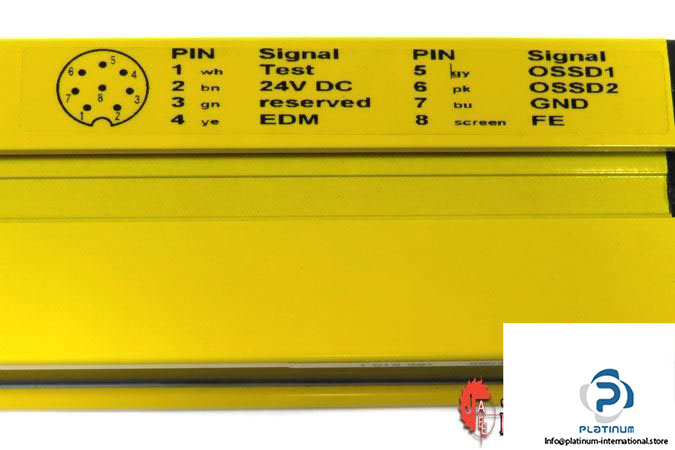

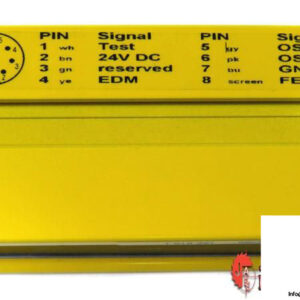

Connection Type: Male Connector M12, 8-Pin

Permitted Cable Length: ≤ 15 m

Permitted Cross-Section: ≥ 0.25 mm²

Display Elements: LEDs, 7-Segment Display

Mission Time:  20 years (EN ISO 13849)

Protection Class: III (IEC 61140)

Vibration Resistance: 5 g, 10 Hz … 55 Hz (IEC 60068-2-6)

Housing Cross Section: 48 mm x 40 mm

Ambient Operating Temperature: 0 °C … +55 °C

Enclosure Rating: IP65

Weight: 2.07
