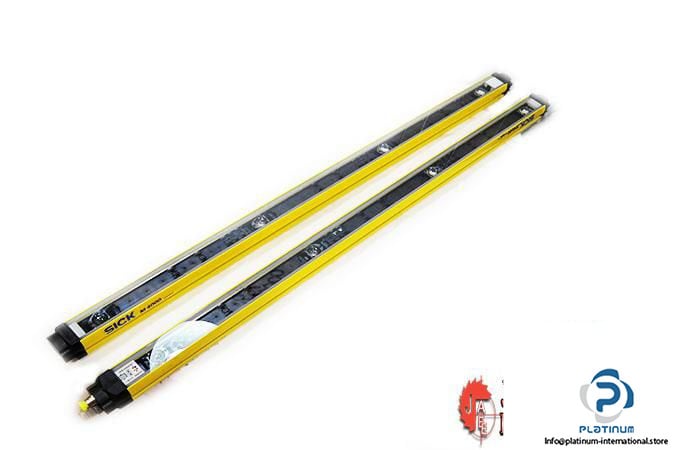

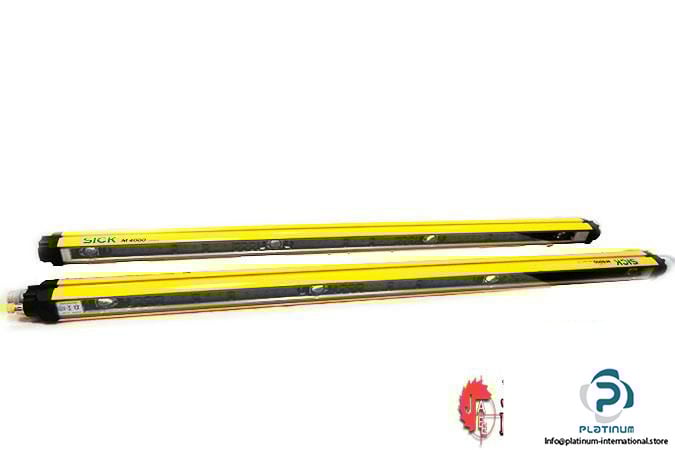

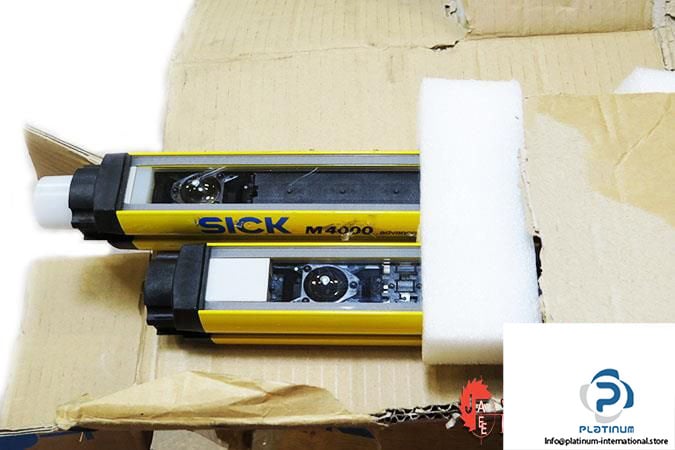

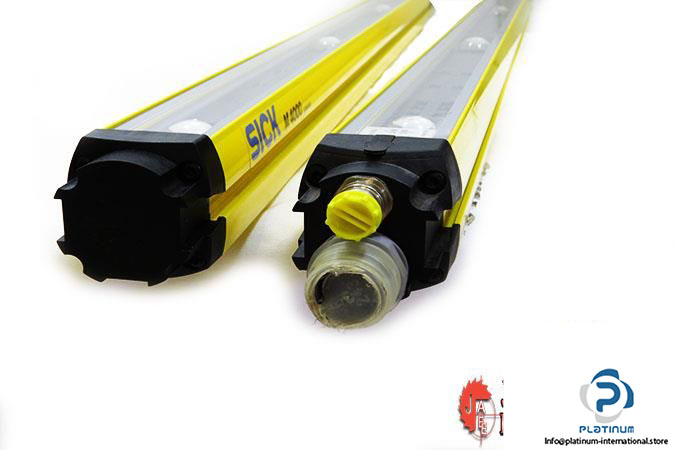

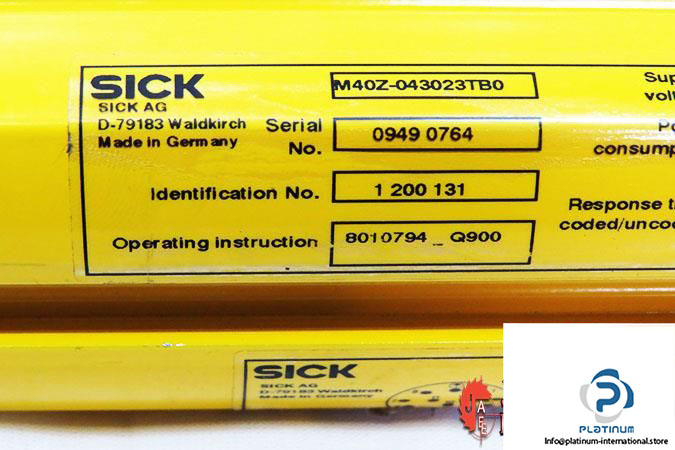

Sick M4000 Advanced AP M40Z-043023TB0 Multiple Light Beam Safety Device

Manufacturer:  SICK

Type: MULTIPLE LIGHT BEAM SAFETY DEVICE

Model: M4000 ADVANCED AP

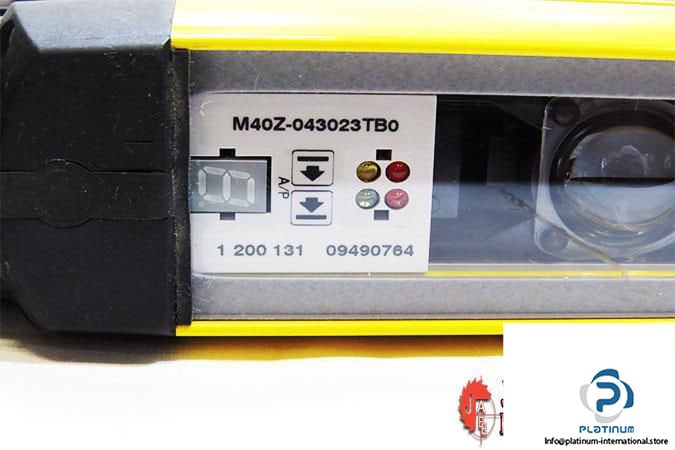

Type Code: M40Z-043023TB0

Part No.: 1200131

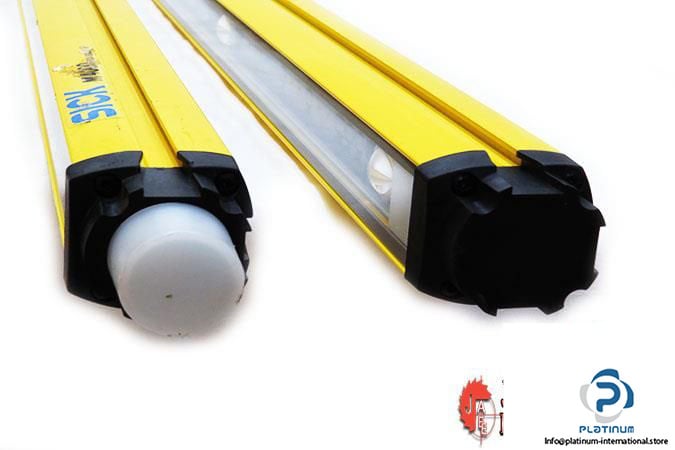

Includes End Cap with Integrated LED

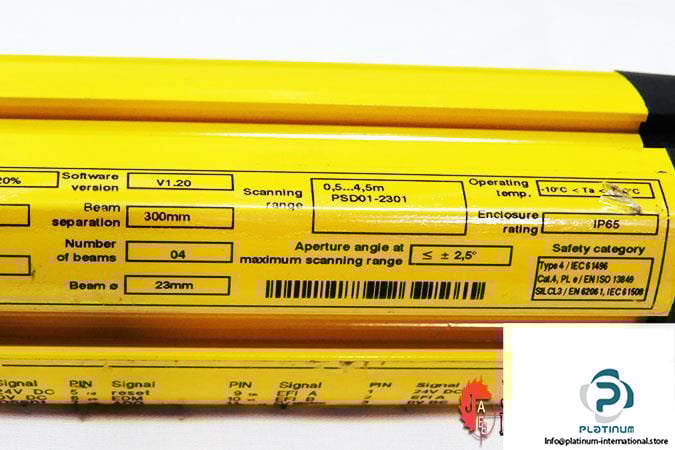

Scanning range: 0.5 … 4.5 m

Number of beams: 4

Beam separation: 300 mm

Beam Diameter: 23 mm

Response time: 9 ms

Synchronization: Optical synchronization

System Connection: Hirschmann male connector M26, 12-pin

Extension connection: Male connector M12, 5-pin

Configuration connection: Female connector M8, 4-pin

Housing cross-section: 52 mm × 55.5 mm

Display elements: LEDs 7-segment display

Output: PNP semiconductor, short-circuit protected

Supply Voltage: 24 V DC

Power Consumption: 9.8 W

Switching current:  ≤ 100 mA

Wave Length: 850 nm

Enclosure rating: IP 65

Ambient operating temperature: -10 … +55 °C

Weight: 3.04 kg

Condition: New

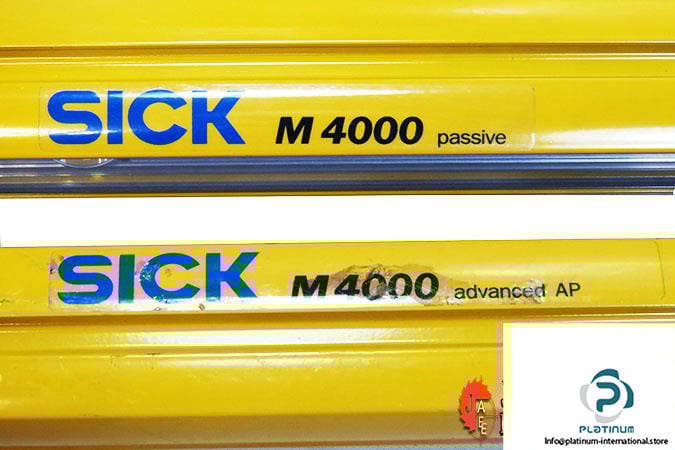

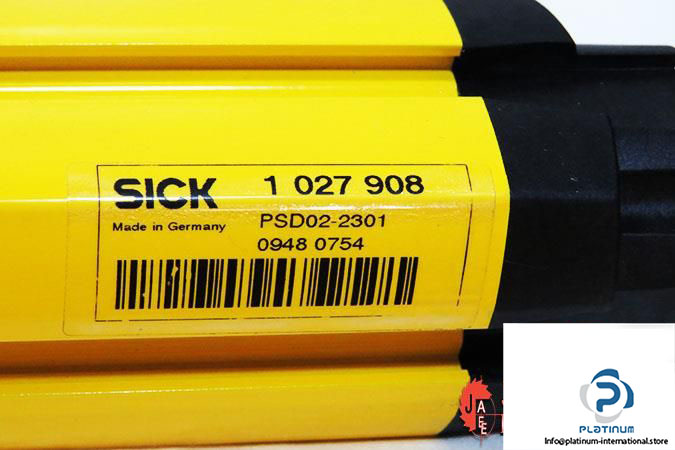

WITH SICK M4000 PASSIVE DEFLECTOR UNIT:

Manufacturer:  SICK

Type: DEFLECTOR UNIT WITH FIBER-OPTIC DEFLECTION

Model: M4000 PASSIVE

Type Code: PSD02-2301

Part No.: 1027908

Scanning range: 0.5 … 4.5 m

Ambient operating temperature: -30 … +55 °C

Weight: 2.92 kg

Condition: New
