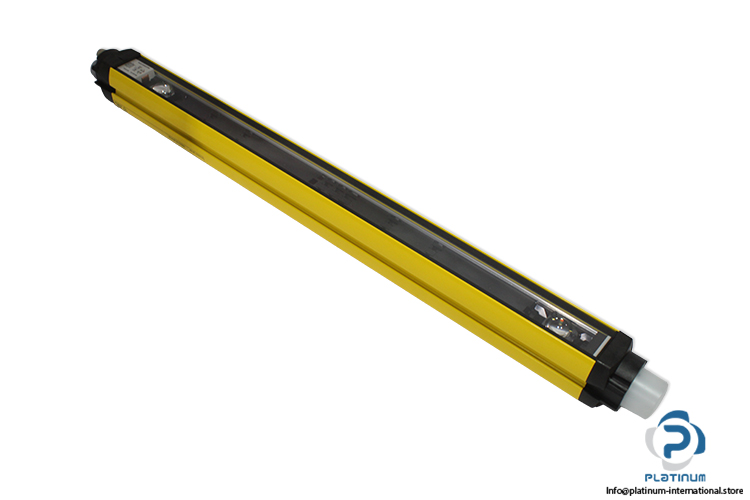

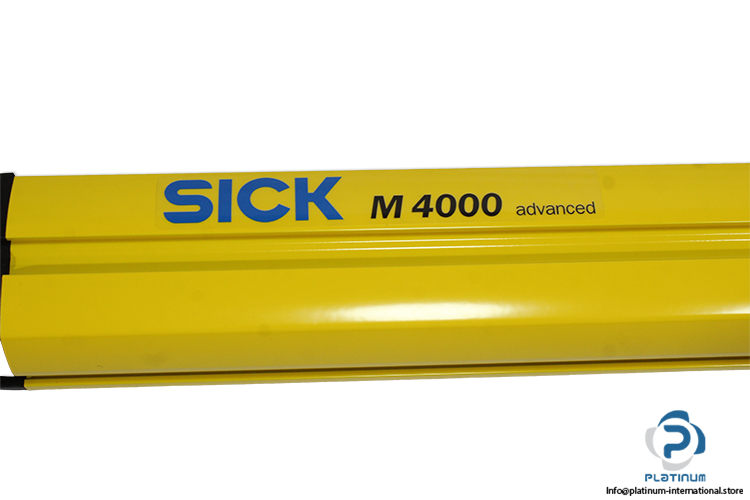

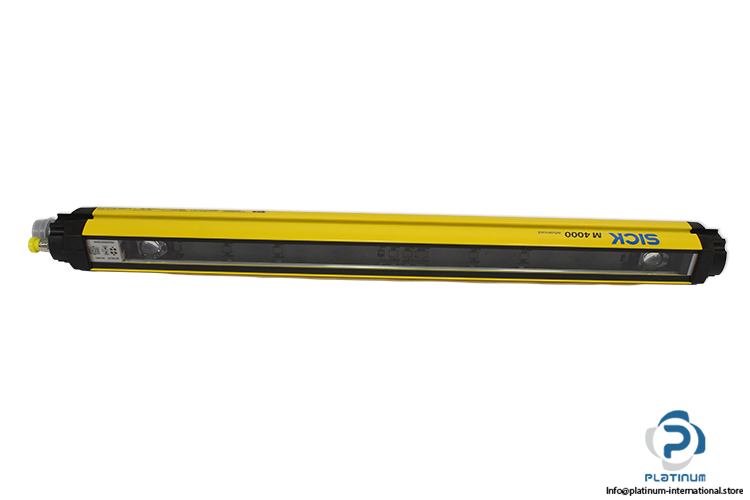

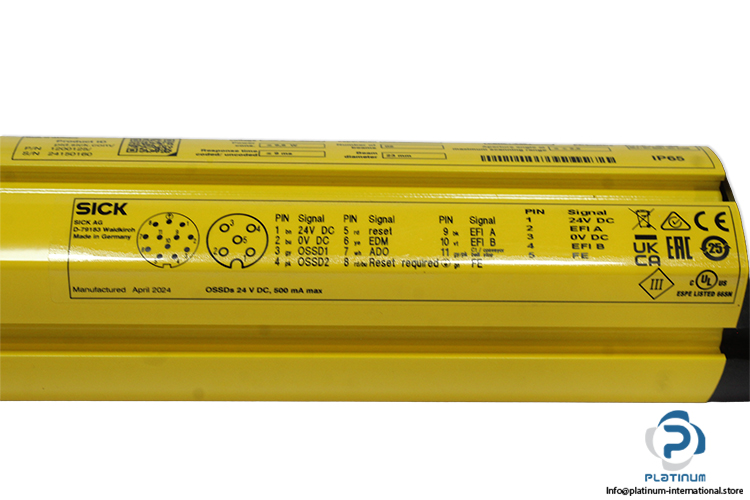

Sick M40Z-025023TB0 Safety Light Curtain
New
In stock1 unitReady to ship
Safety Light Curtain The Sick M40Z-025023TB0 safety light curtain operates on 24 V DC and features two PNP OSSD safety outputs, a 0.5 to 4.5 m scanning range, optical synchronization, and an IP65-rated aluminum housing. Designed for reliable personnel protection in industrial automation and machine safeguarding applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

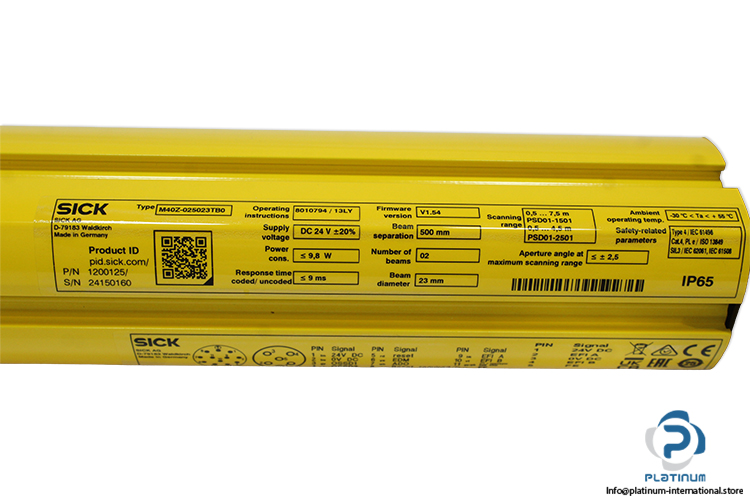

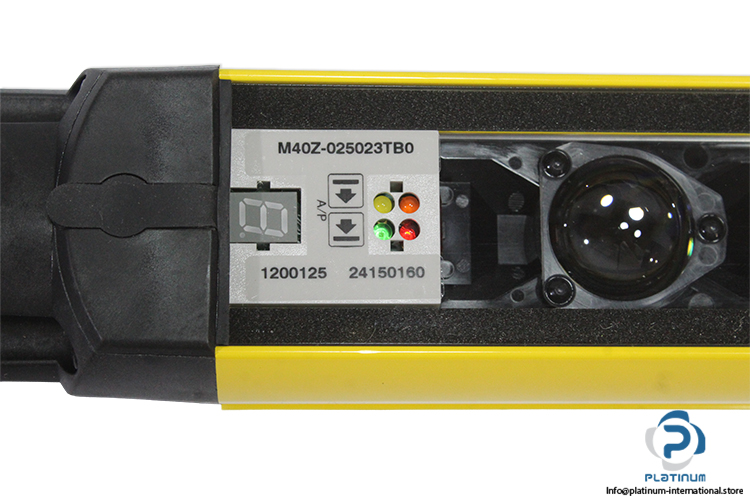

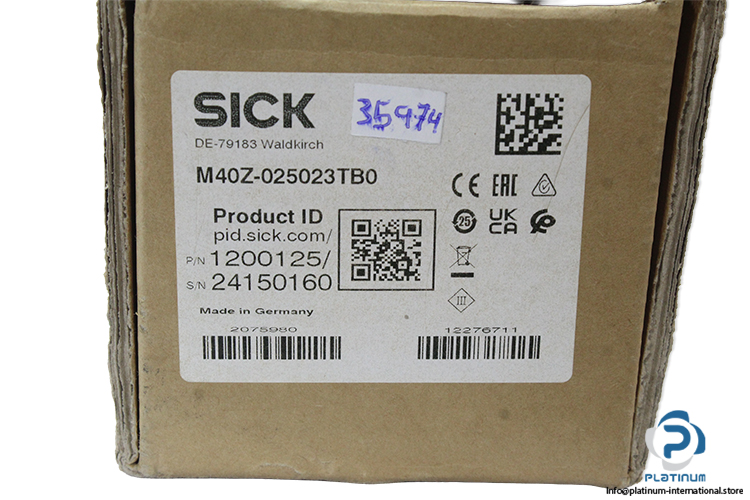

| Part No. | 1200125 |
| Serial No. | 24150160 |
| Code | 12276711, 2075980 |
| Voltage | 24 V DC |
| Power Consumption | max. 9,8W |
| Current | max. 500mA |
| Output signal switching devices (OSSDs) | 2 PNP semiconductors, short-circuit protected, cross-circuit monitored |
| Scanning range | 0.5 m ... 4.5 m |
| Number of beams | 2 |
| Beam separation | 500 mm |
| Beam diameter | 23 mm |
| Response time | max. 9ms |
| Synchronization Optical | synchronisation |
| Wave length | 850 nm |
| Material Housing | Aluminum alloy ALMGSI 0.5, powder coated |
| Ambient operating temperature | –30 ... +55 °C |
| Protection Degree | IP65 (EN 60529) |
| Condition | New |
| Stock key | CON003 |
| SKU | 1093307 |
| Weight | 2,35 |
