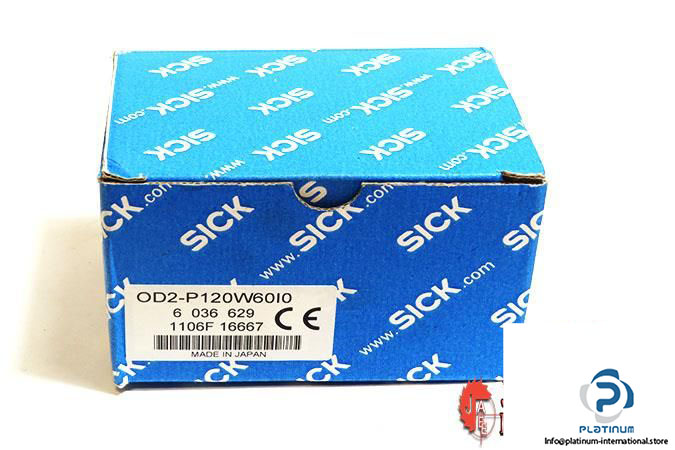

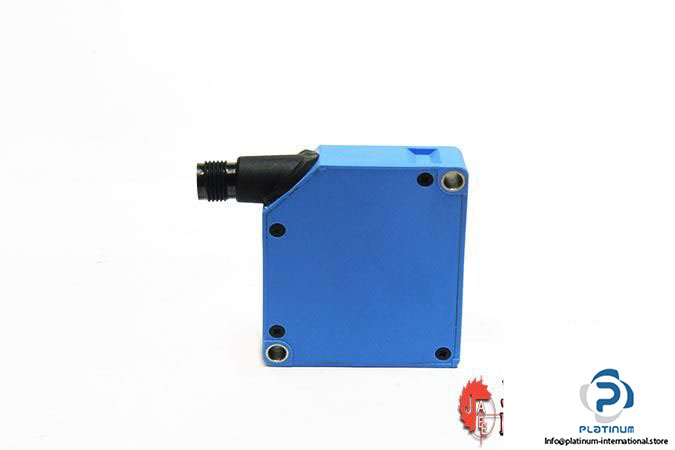

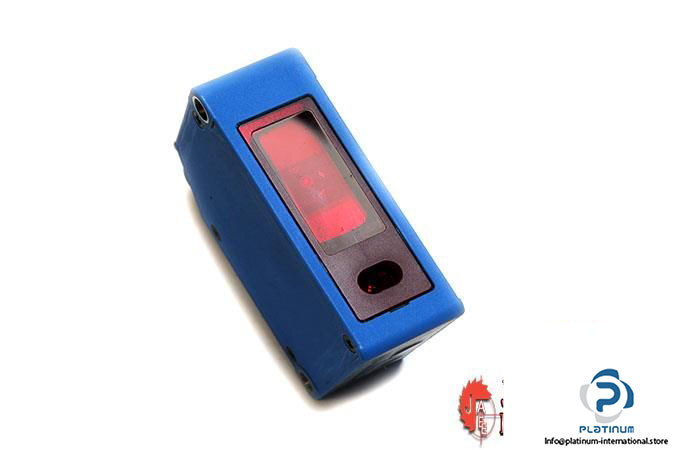

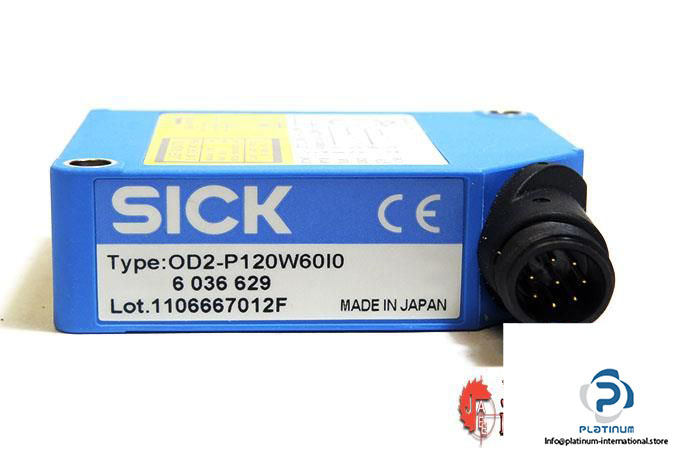

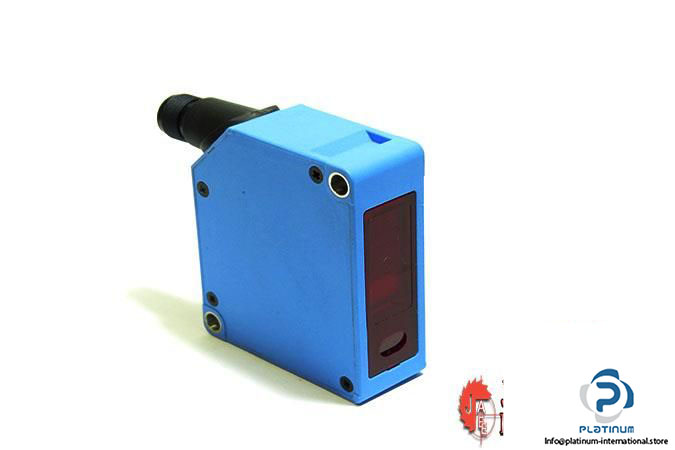

Sick OD2-P120W60I0 Displacement Measurement Sensor

Manufacturer: SICK

Type: DISPLACEMENT MEASUREMENT SENSOR

Model: OD2-P120W60I0

Part No.: 6036629

Measuring range: 60 mm … 180 mm

Target: Natural objects

Repeatability: 30 µm

Linearity: ± 120 µm

Response time: ≥ 1 ms

Measuring frequency: ≤ 2 kHz

Output time: ≥ 0.5 ms

Light source: Laser, red

light spot size (distance) : 1 mm x 1.5 mm (120 mm)

Analog output: 1 x 4 mA … 20 mA (≤ 300 Ω)

Resolution analog output: 16 bit

Switching output: 2 x PNP (100 mA)

Supply voltage: DC 12 V … 24 V

Power consumption: ≤ 2.88 W

Connection type: Male connector, M12, 8-pin, swivel connector unit

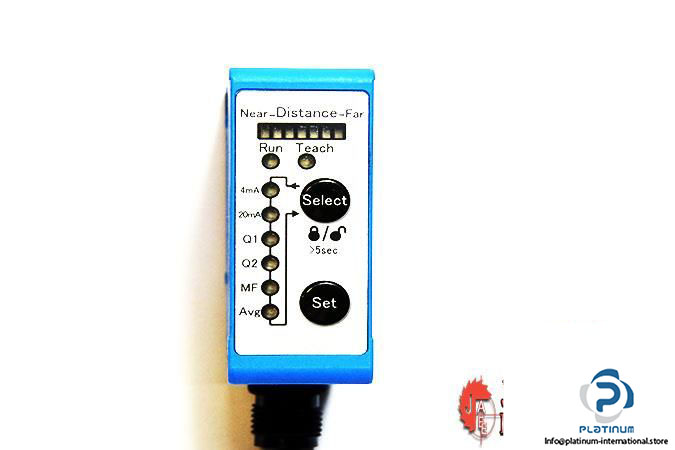

Indication: Distance bar graph, up to 8 status LEDs

Vibration resistance: 10 Hz … 55 Hz

Ambient temperature operation: –10 °C … +40 °C

Weight: 70 g

Enclosure rating: IP67

Condition: New
