Sick RT-P2420S03 Background Suppression Sensor
New
In stock34 unitsReady to ship
Background Suppression Sensor
SICK infrared background suppression sensor with 60“900 mm sensing range, PNP output, IP67 protection, and ZoneControl capability for industrial automation applications.10-30VAutomationBackgrounddcIndustrialinfraredIP67PhotoelectricPNPProximitySensorSicksuppressionZoneControl
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

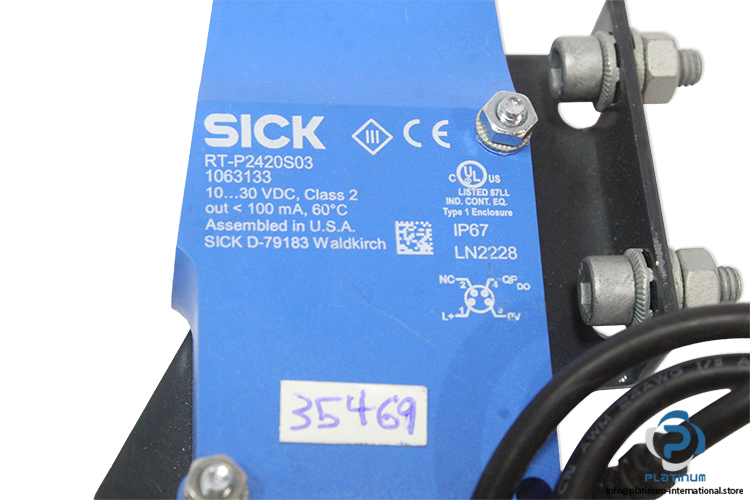

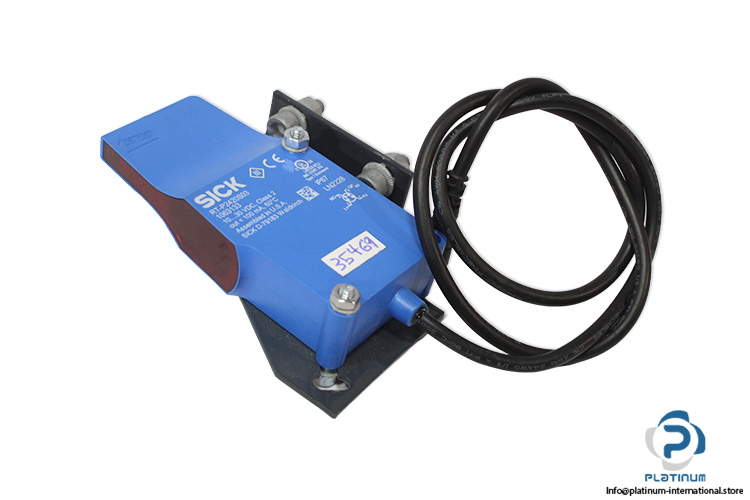

SICK RT-P2420S03 Background Suppression Sensor
The SICK RTP2420S03 background suppression sensor is a high-performance infrared photoelectric sensor designed for precise object detection independent of background reflections. Featuring adjustable sensing range and ZoneControl capability, it ensures reliable performance in industrial automation and conveyor applications.
Manufacturer: SICK
Type: Background Suppression Sensor
Model: RT-P2420S03
Part No.: 1036133
| Sensing Range | 60 ... 900 mm |
| Focus / Angle Of Dispersion | 7° |
| Light Type | Infrared Light |
| Light Source | LED |
| Light Spot Size (At 500 mm) | Dia. 20 mm |
| Adjustment | Potentiometer, 9 Turns |
| Special Applications | ZoneControl |
| Supply Voltage | 10 / 30 V DC |
| Current Consumption | 20 mA |
| Switching Output | PNP |
| Max. Output Current | 100 mA |
| Switching Mode | Dark Switching |

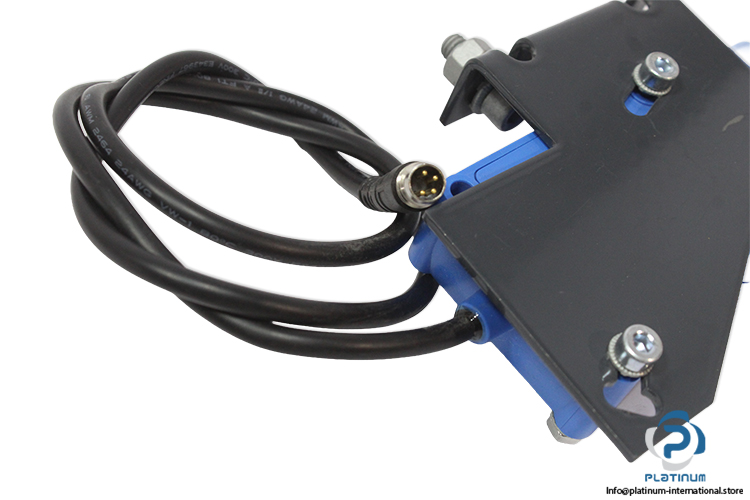

| Connection Type | Cable With M8 Male Connector, 4-Pin, 625 mm |
| Material | Plastic, ABS |
| Protection Class | IP67 |
| Operating Temperature | -40 / 60 °C |
| Dimensions | 20.6 x 99.2 x 48.9 mm |
