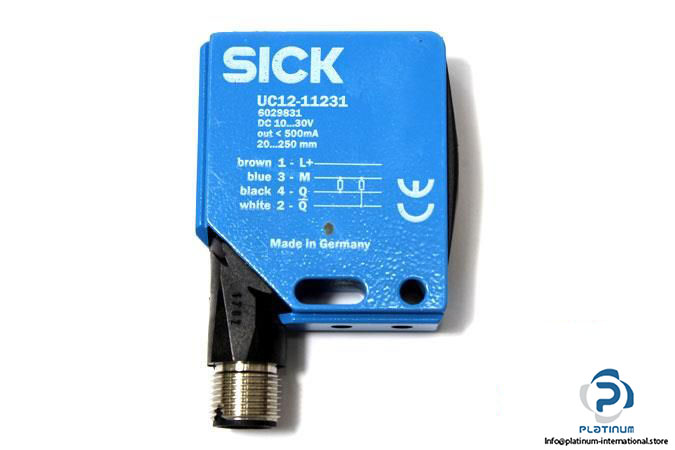

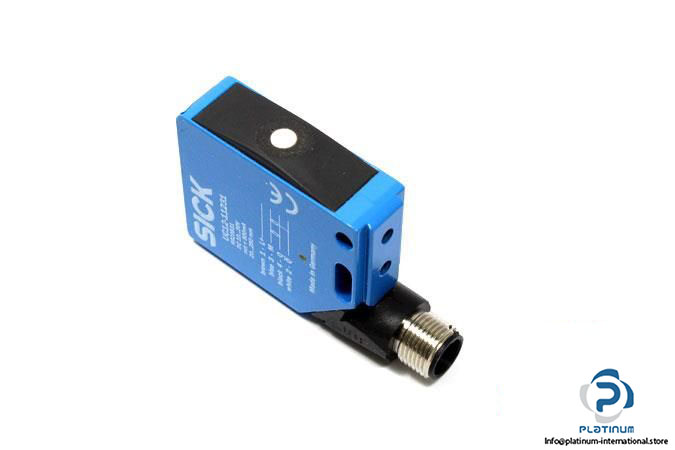

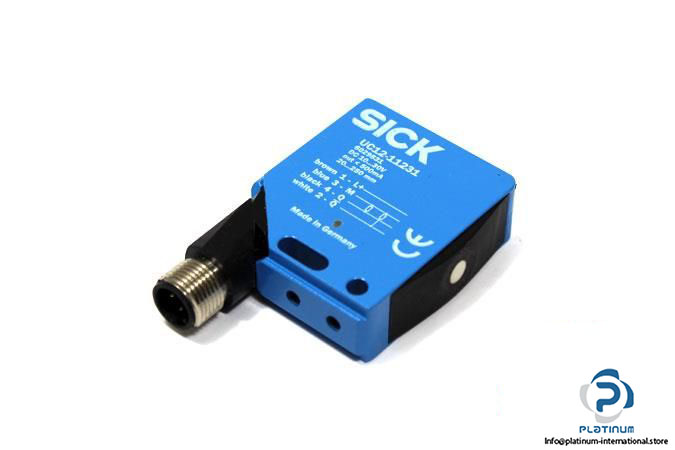

Sick UC12-11231 Ultrasonic Sensor

Manufacturer:SICK

Type: ULTRASONIC SENSOR

Model: UC12-11231

Part No.: 6029831

Sensing Range: 20 mm … 150 mm

Limiting range: 20 mm … 250 mm

Response time:  30 ms

Operating Voltage: 10 … 30 V DC

Output current: 500 mA

Switching output: PNP

Switching mode: Normally open/normally closed

Switching frequency: 25 Hz

Ultrasonic frequency: 380 kHz

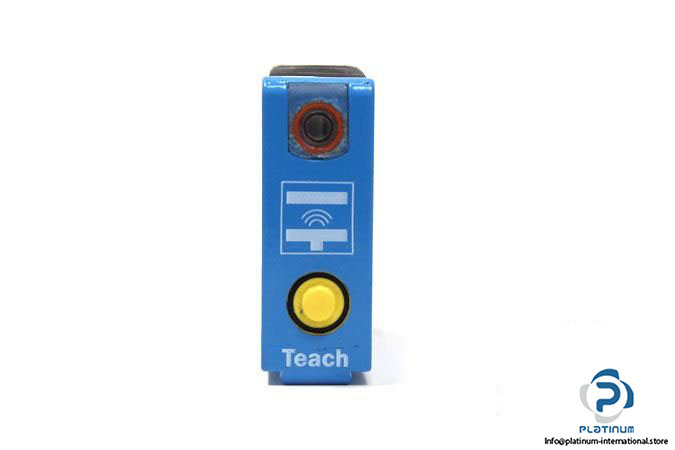

Adjustment: Teach in button

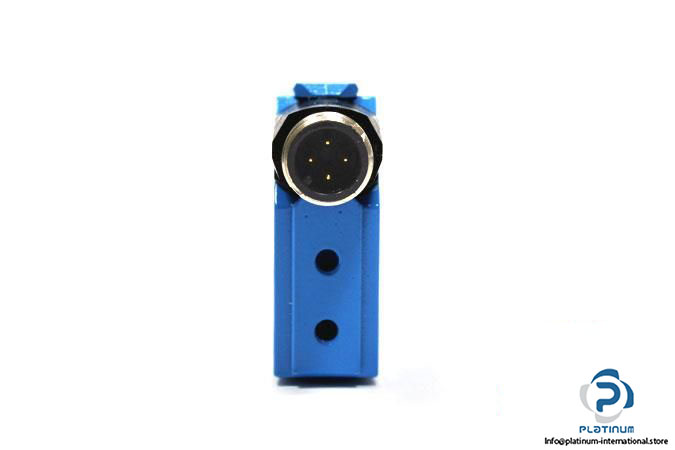

Connector type: M12 Connector, 4-pin

Sending axis: Straight

Protection class: III

Enclosure rating: IP6

Ambient Operating temperature: -25 … 70°C

Dimensions (W x H x D): 43.5 x 15 x 49 mm

Weight: 75 g

Housing: Rectangular

Housing material: Die-cast zinc

Sensing face material: Polyurethane foam, glass epoxy resin

Condition: New
