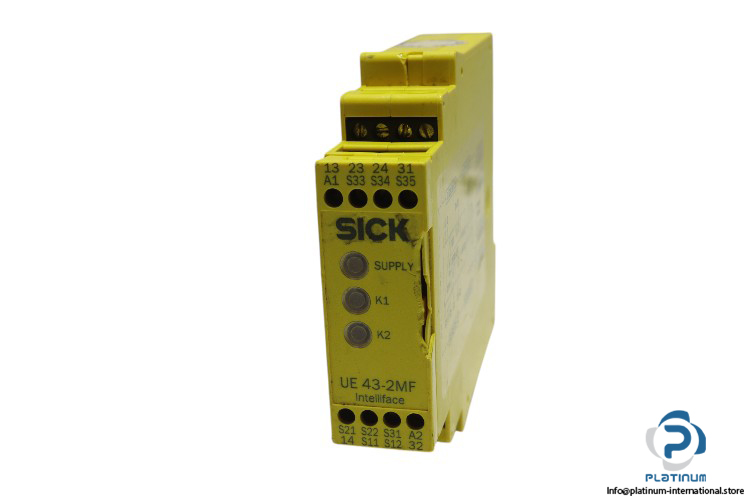

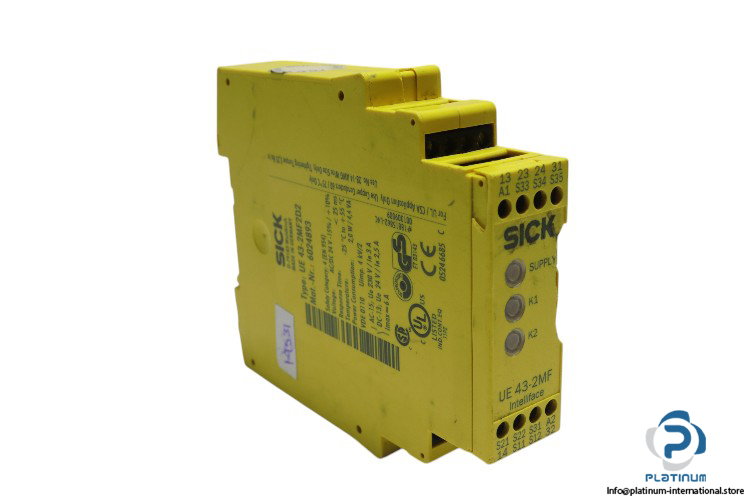

Sick UE 43-2MF2D2 Safety Relay
Safety Relay
The Sick Safety Relay UE 43-2MF2D2 provides reliable control with 24V AC/DC supply, 4 kV impulse withstand voltage, and a 25 ms response time, ideal for industrial safety applications.Sick Safety Relay UE 43-2MF2D2
The Sick Safety Relay UE 43-2MF2D2 is designed for use in safety-critical applications, providing reliable and precise control for industrial automation systems. With a wide supply voltage range of 24V AC/DC, this safety relay ensures stable performance across varying operational conditions, offering both AC and DC compatibility for flexible integration.
With robust features including a rated insulation voltage of 300V AC, a rated impulse withstand voltage of 4 kV, and a response time of just 25 ms, this safety relay is ideal for applications where safety and fast response times are critical. The relay also provides efficient power consumption at 4.6 VA (AC) and 2.6 W (DC), making it an energy-efficient solution for safety monitoring systems.
Manufacturer: Sick
Type: Safety Relay

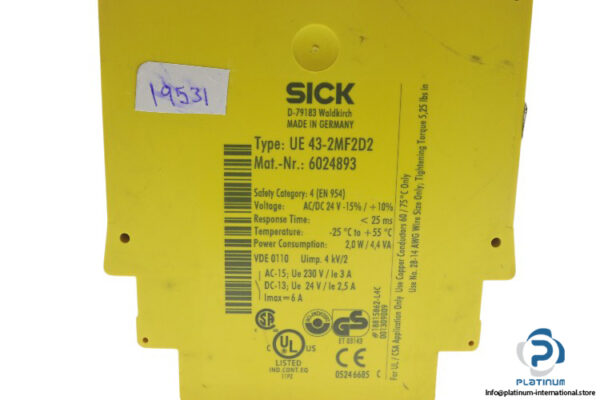

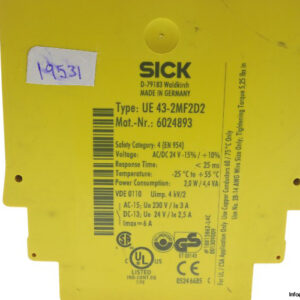

Model: UE 43-2MF2D2
The Sick Safety Relay UE 43-2MF2D2 is an excellent choice for ensuring safety and control in demanding industrial environments, providing efficient operation, reliability, and flexibility for safety monitoring applications.
| Supply Voltage (Vs) | 24 V AC/DC (20.4 V AC/DC ... 26.4 V AC/DC) |
| Power Consumption | 4.6 VA (AC) / 2.6 W (DC) |
| Rated Insulation Voltage (Ui) | 300 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Test Voltage | 2 kV (50 Hz) |
| Control Voltage | 22 V DC (≥ 17.4 V DC) |
| Control Current | 40 mA ... 100 mA |
| Input Current | 100 mA / 50 mA |
| Cable Resistance | 35 Ω |
| Response Time | 25 ms |
| Switching Voltage | 10 V AC ... 230 V AC, 10 V DC ... 300 V DC |
| Current-Carrying Capacity per OSSD | 10 mA ... 6 A |
| Operating Temperature | -25 to 55°C |
| Power Consumption | 2 W / 4.4 VA |
| Dimensions | 96.5 x 22.5 x 114 mm |
