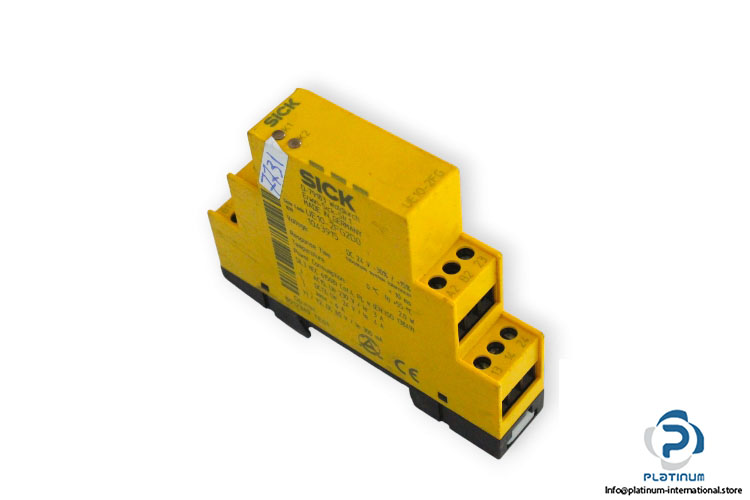

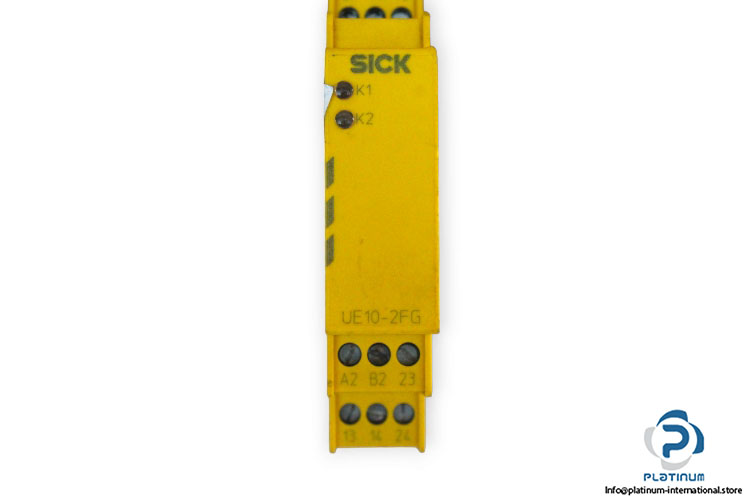

Sick UE10-2FG2D0 Safety Relay
Manufacturer: Sick
Type: Safety Relay
Model: UE10-2FG2D0
Part No: 1043915
Supply Voltage: 24 V DC
Response Time: 10 ms
Power Consumption: 2 W
Contact Configuration: 2 Normally Open
Contact Voltage: 230 V AC/ 24 V DC
Contact Current: 3 A (AC), 4 A (DC)
Max. Current: 6 A
Feedback Current Path: 60 V DC
Feedback Current Path: 300 mA
Operating Temperature: 0 … 55 °C
Dimensions: 17.8 X 89.8 X 70.8 mm
