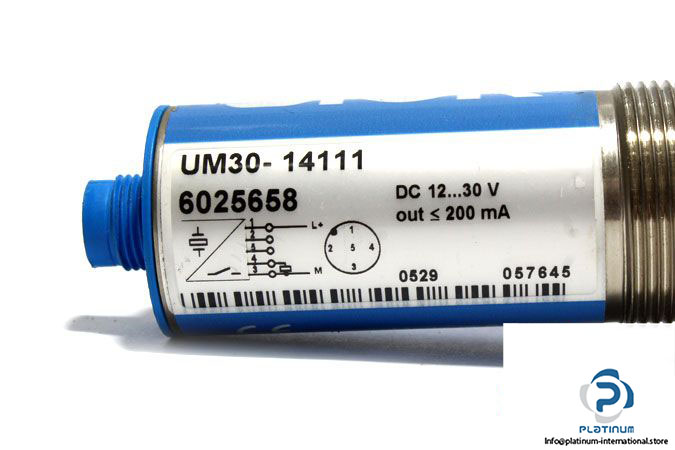

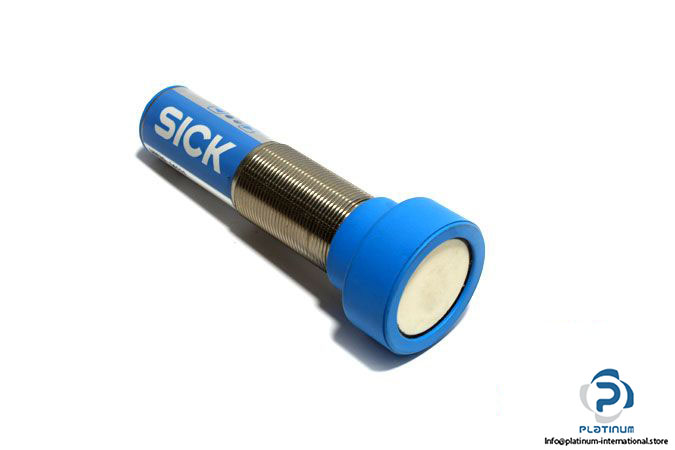

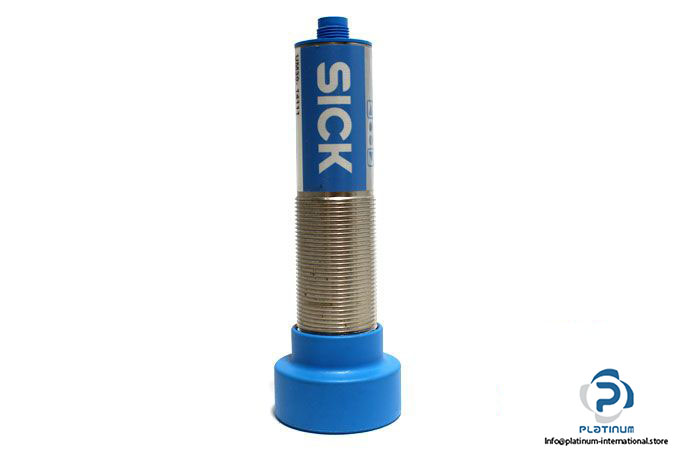

Sick UM30-14111 Ultrasonic Sensor

Name: SICK UM30-14111 ULTRASONIC SENSOR
SKU: 970586
Price: 155.00 USD
Availability: InStock

New

In stock1 unitReady to ship

155,00$

Manufacturer:

SICK

Type:

Ultrasonic Sensor

Model:

UM30-14111

Part No:

6025658

Manufacturer

SICK

SKU

970586

Category

Sensors

Condition

New

Sensor Sick Ultrasonic

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: SICK
Type: Ultrasonic Sensor
Model: UM30-14111
Part No: 6025658

Sensing Range: 350 … 3400 mm, 5000 mm
Operating Voltage: 12 … 30 V DC
Output Current: 200 mA
Electrical Design: PNP
Connector Type: M12 Male Connector, 5-pin
Enclosure Rating: IP65
Ambient Operating Temperature: -20 … 70°C
Housing Material: Nickel-plated brass, PBT
Sensing Face Material: Ultrasonic transducer: polyurethane foam, glass epoxy resin
Diameter, Housing Length: 47.5 , 135.5 mm

Specification	Value
Weight	0,26 kg
Condition	New
Manufacturer	SICK
Type of Product	Ultrasonic Sensor
Min. Sensing Range [mm]	350
Min. Voltage [DC]	12
Max. Voltage [DC]	30
Nominal Voltage [DC]	24
Material	Metal
Max. Sensing Range [mm]	3400
Diameter [mm]	47.5
Shelf No.	240705
Part No.	6025658
