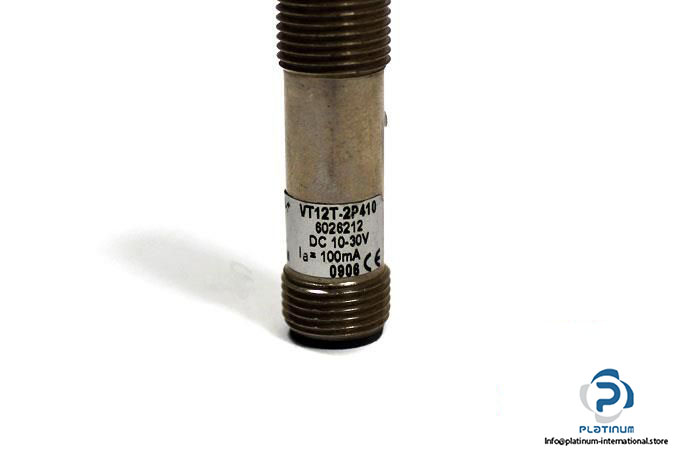

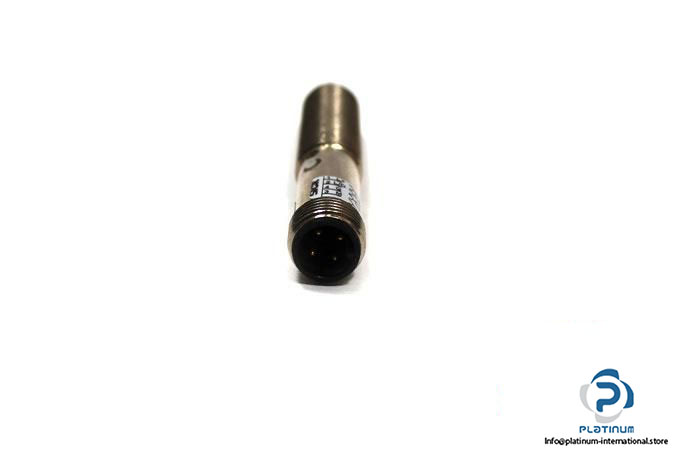

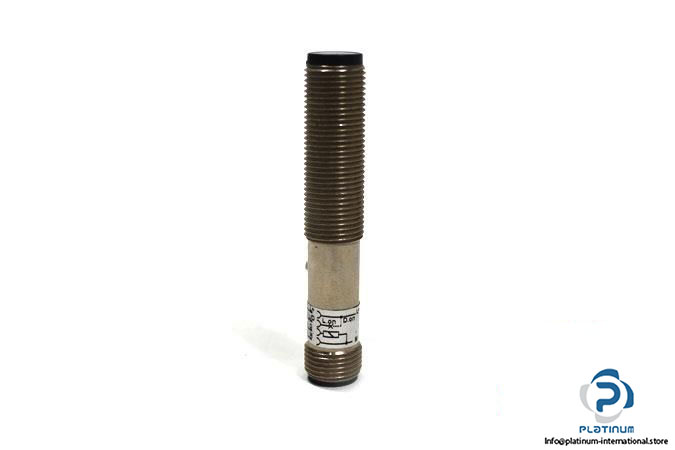

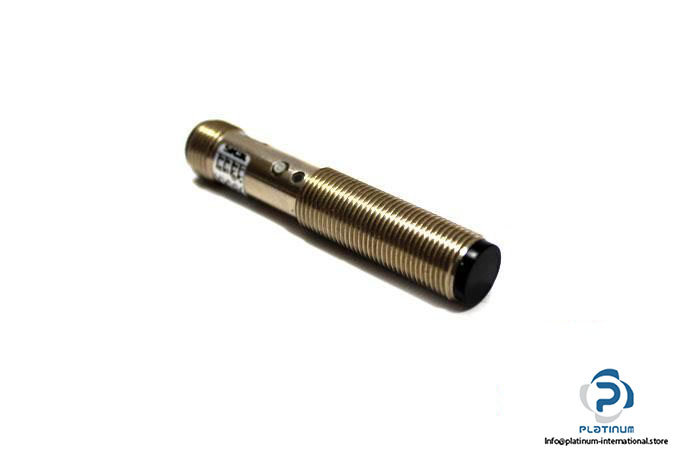

Sick VT12T-2P410 Photoelectric Proximity Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC PROXIMITY SENSOR, ENERGETIC

Model: VT12T-2P410

Part No.: 6026212

Sensing range max.: 0 … 115 mm

Sensing range: 2 … 100 mm

Response time: ≤ 1.25 ms

Operating Voltage: 10 … 30 V DC

Power consumption: 20 mA

Switching output: PNP

Switching mode: Light/dark switching

Switching frequency: 400 Hz

Light source, type of light: LED, Infrared light

Light spot size(distance): Ø 20 mm (100 mm)

Connector type: Male connector M12, 4-pin

Protection class: III

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, housing length: 12, 65.5 mm

Housing: Threaded type

Housing material: Metal, Nickel-plated brass/PA

Sensing face material: Plastic, PMMA

Weight: 18 g

Condition: Used
