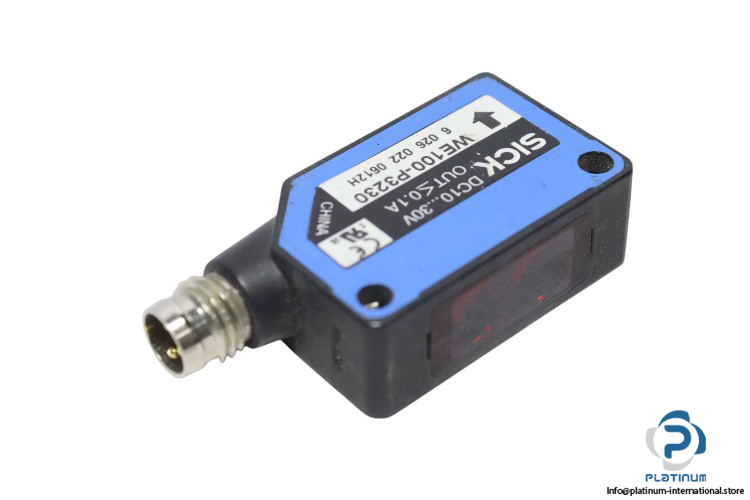

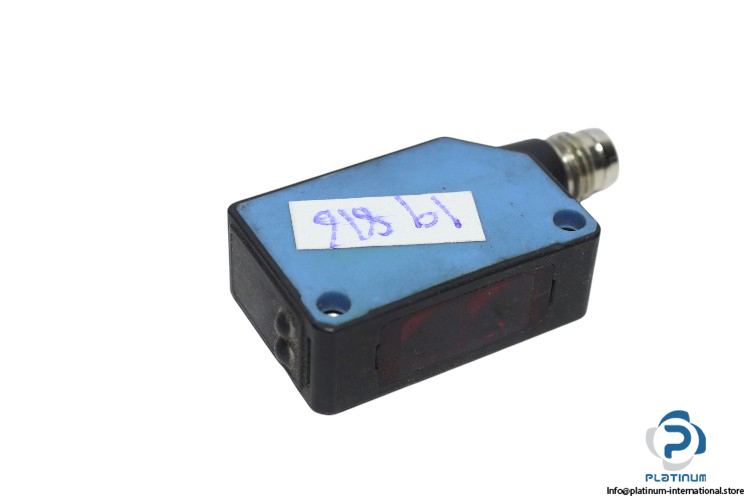

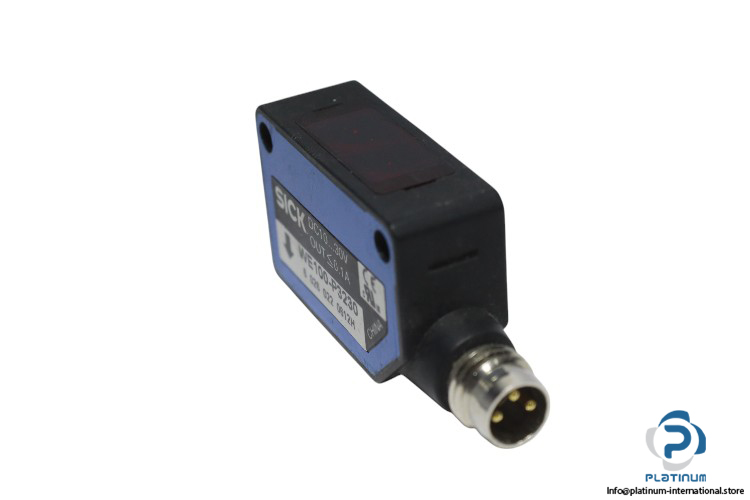

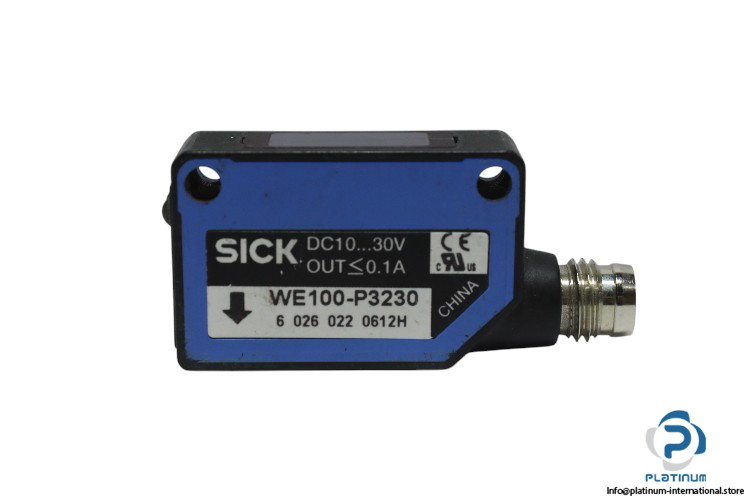

Sick WE100-P3230 Through-Beam Photoelectric Sensor
Used
In stock1 unitReady to ship
Through-Beam Photoelectric Sensor (Receiver)
The Sick WE100-P3230 Sensor features a 15m sensing range, PNP output, IP65 protection, and a fast response time for industrial automation applications.15m3-pinAutomationConnectorIndustrialIP65M8OutputPhotoelectricPNPRangeReceiverSensingSensorSickThrough-beamWE100-P3230
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Sick WE100-P3230 Through-Beam Photoelectric Sensor (Receiver)
The Sick WE100-P3230 Through-Beam Photoelectric Sensor (Receiver) is a high-precision industrial sensor designed for reliable object detection. With a maximum sensing range of 15 meters, fast response time, and robust IP65-rated enclosure, this sensor ensures efficient performance in automation applications.
Manufacturer: Sick
Type: Through-Beam Photoelectric Sensor (Receiver)
Model: WE100-P3230
Part No.: 6026022 0612H
| Sensing Range Max. | 0 to 15 m |
| Sensing Range | 0 to 12 m |
| Response Time | ‰¤ 0.5 ms |
| Operating Voltage | 10 to 30 V DC |
| Ripple | ± 10 % |
| Current Consumption (Receiver) | ‰¤ 20 mA |
| Output Current Max. | ‰¤ 0.1 A |
| Switching Frequency | 1000 Hz |
| Switching Output | PNP |
| Switching Mode | Dark Switching |
| Light Source, Type | LED |
| Wavelength | 680 nm |
| Light Spot Size (Distance) | Ø 1,500 mm (12 m) |
| Angle of Reception | Approx. 15° |
| Connector Type | M8, 3-pin |
| Enclosure Rating | IP65 |
| Ambient Operating Temperature | -25 to 55°C |
| Dimensions (H x W x D) | 11 x 31 x 20 mm |
| Housing Material | Plastic, ABS/PC |
