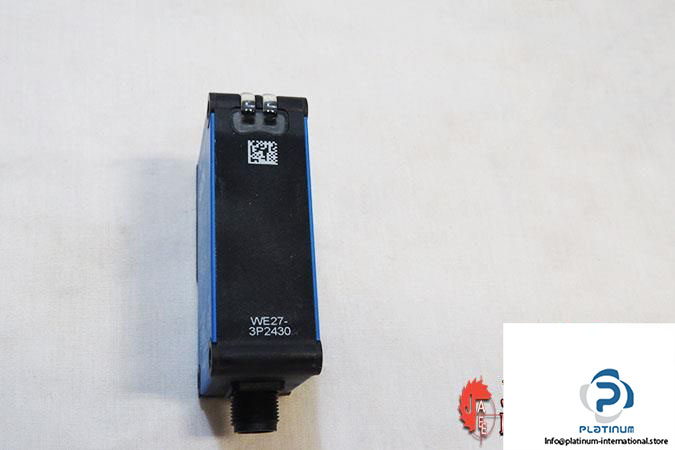

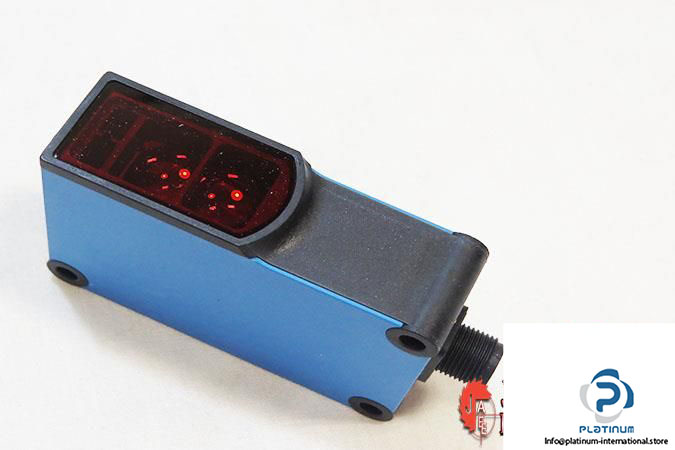

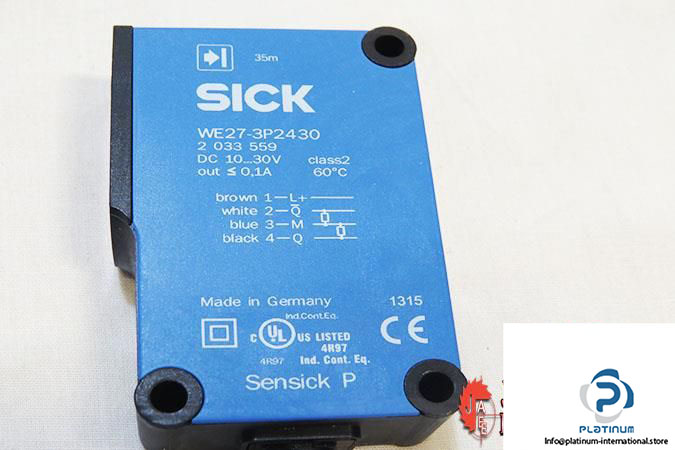

Sick WE27-3P2430 Through-Beam Photoelectric Switch

Manufacturer: SICK

Type: THROUGH-BEAM PHOTOELECTRIC SWITCH

Model: WE27-3P2430

Part No.: 2033559

Configured with: Sender WS27-3D2430

Dimensions (W x H x D): 24.6 mm x 80.6 mm x 54 mm

Sensing range max.: 0 m … 35 m

Sensing range: 0 m … 25 m

Type of light: Visible red light

Light source: LED

Light spot size (distance): Ø 600 mm (25 m)

Angle of dispersion: Approx. 1.5°

Wave length: 645 nm

Ripple: ≤ 5 Vpp

Supply Voltage: 10 V DC … 30 V DC

Output current: ≤ 100 mA

Power consumption, sender: 35 mA

Power consumption, receiver: 20 mA

Switching output: PNP

Response time: ≤ 500 µs

Switching frequency: 1,000 Hz

Angle of reception: Approx. 3°

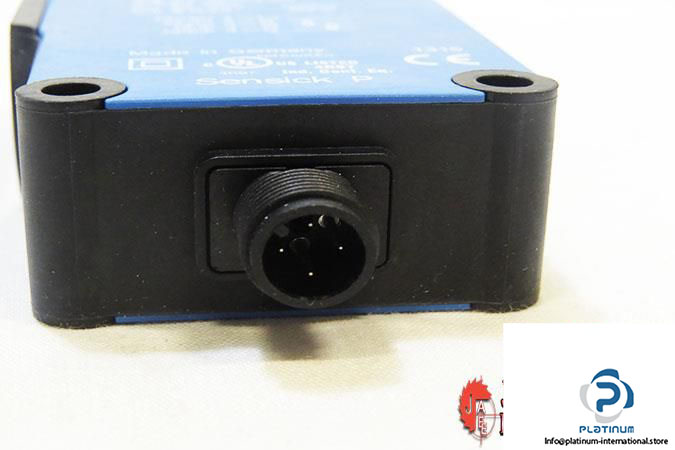

Connection type: Male connector M12, 4-pin

Enclosure rating: IP69K

Ambient operating temperature: -40 °C … +60 °C

Weight: 200 g
