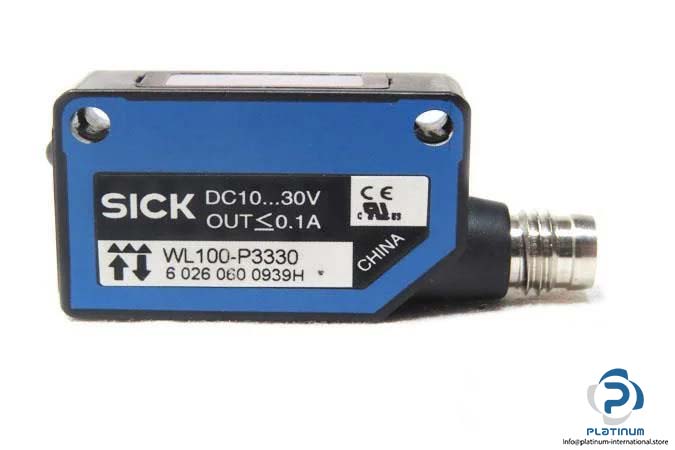

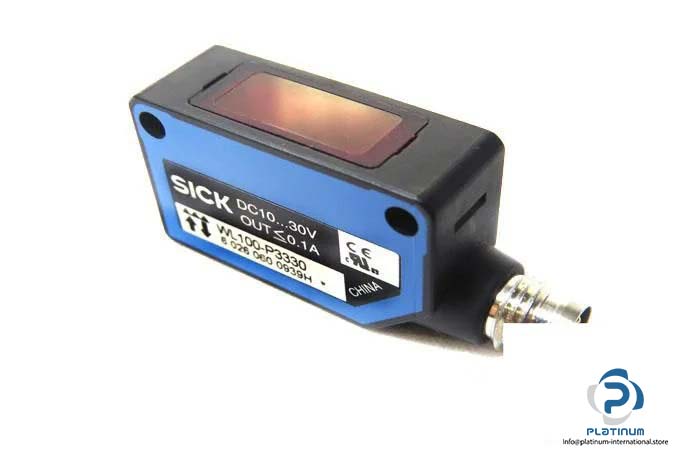

Sick WL100-P3330 Photoelectric Retro-Reflective Sensor

Manufacturer: SICK
Type: Photoelectric Retro-Reflective Sensor
Model: WL100P3330
Part no.: 60260600939H

Functional principle detail: Dual lens
Supply voltage: 10 … 30 V DC
Current consumption: 30 mA
Switching output: PNP
Switching mode: Light switching
Signal voltage PNP high/low: U_V -1,8 V / ca. 0 V
Output current max.: 100 mA
Response time max.: 0.5 ms
Switching frequency: 1,000 Hz
Wave length: 680 nm
Sensing range: 0.01 … 5 m
Type of Light: Visible red light
Light spot size: Ø 250 mm (3.5 m)
Angle of dispersion: 4°

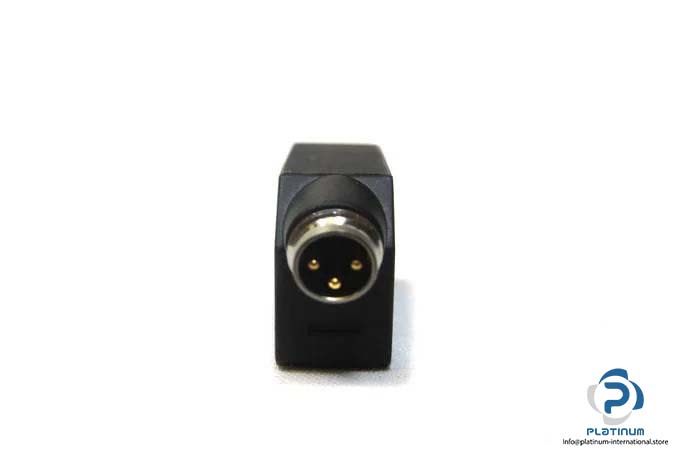

Connection: Connector M8, 3-pin
Enclosure rating: IP65
Housing material: Plastic, ABS/PC
Ambient operating temperature : -25 … +55 °C
Dimension (W X H X D): 11 X 31 X 20 mm
