Sick WL100-P3439 Photoelectric Retro-Reflective Sensor
35,00$
Manufacturer: SICK
Type: PHOTOELECTRIC RETRO-REFLECTIVE SENSOR, DUAL LENS
Set Model: WL100-P3439
Set Part No.: 6026073
Sensor Model: WL100-P3430
Set Model: Wl100-2P3439
Sensing Range: 1 … 5 m
Response time max.: 0.5 ms
Operating Voltage: 10 … 30 V DC
Switching frequency: 1000 Hz
Rated operating current: 100 mA DC
Switching output: PNP
Switching mode: light/dark switching
Type of light: Red light

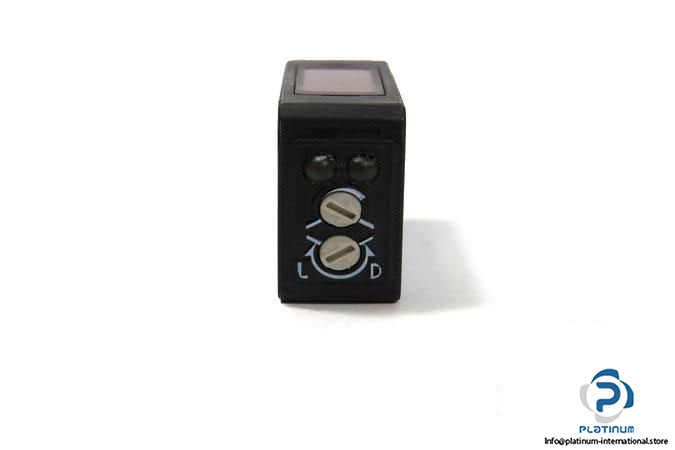

Adjustment: Potentiometer, 270°

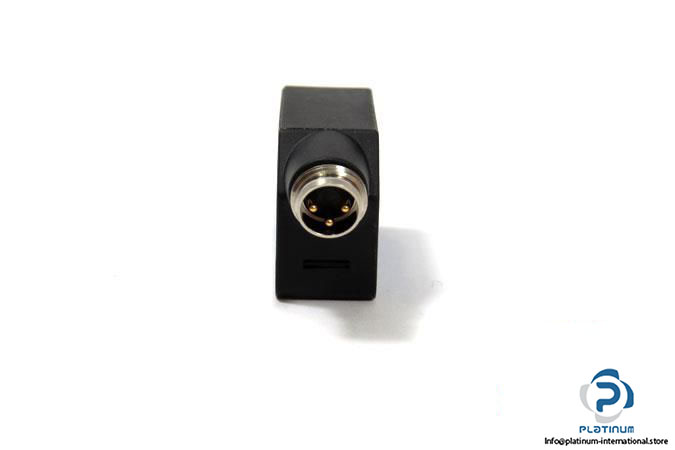

Connector type: M8, 3-pin
Enclosure rating: IP65
Ambient Operating temperature: -25 … 55°C
Dimensions (W X HX D): 11 x 31 x 20 mm
Housing: Rectangular
Housing material: Plastics
Optics material: PMMA

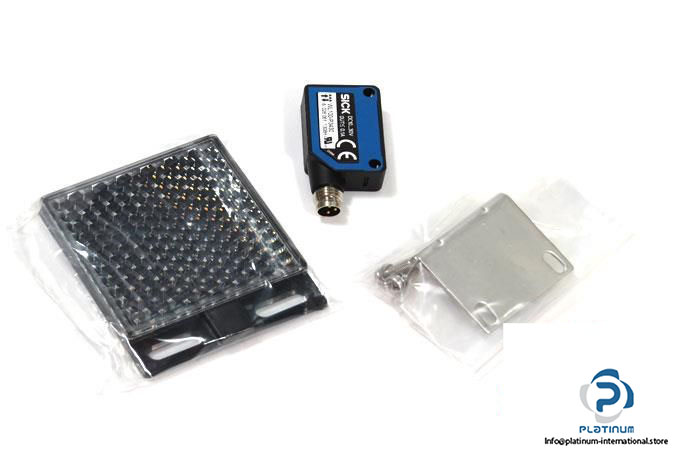

Supplied Accessories: P250 Reflector, BEF-W100-A Mounting brackets
Condition: New
P250 Reflector:
Type: Angular reflector
Material: PMMA/ABS
Reflective Area: 47 x 47 mm
Mounting system type: Screw-on, 2 hole mounting
