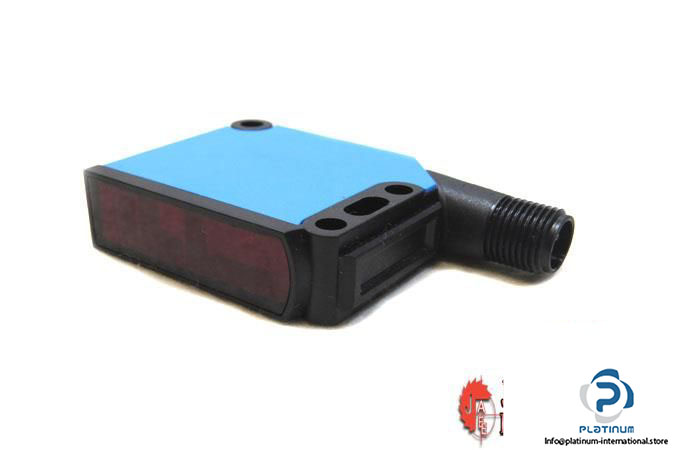

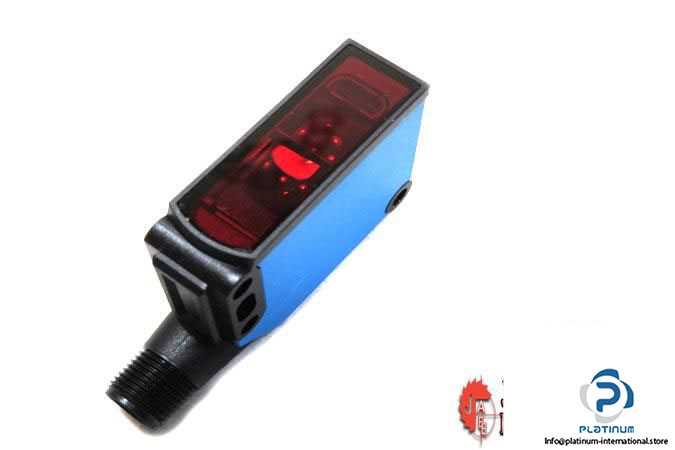

Sick WL11-2P2430 Photoelectric Retro-Reflective Sensor

Manufacturer: SICK

TYPE: PHOTOELECTRIC RETRO-REFLECTIVE SENSOR, DUAL LENS

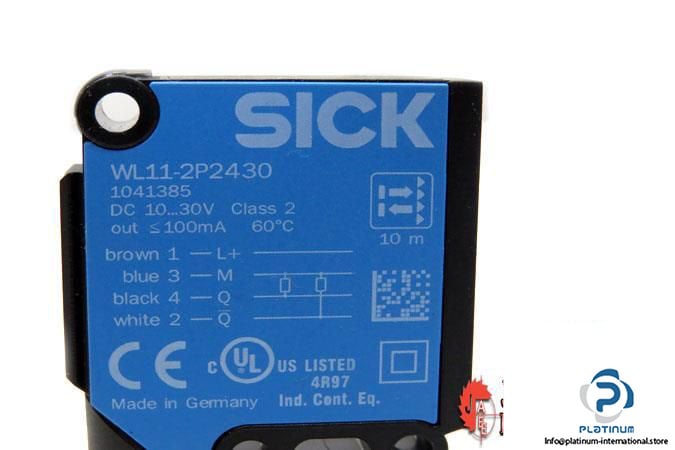

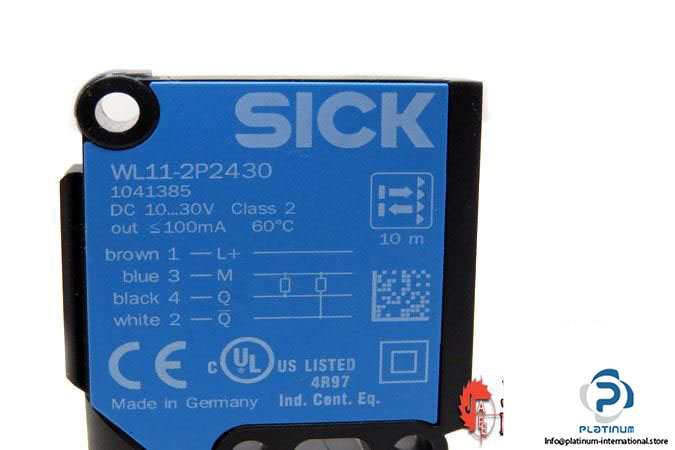

Model: WL11-2P2430

Part no.: 1041385

Sensing range max.: 0.15 m … 10 m

Type of light: Visible red light

Light source: LED

Light spot size (distance): Ø 50 mm (3 m)

Angle of dispersion: approx. 2.2°

Wave length: 640 nm

Supply voltage: 10 … 30 V DC

Ripple: ≤ 5 Vpp

Power consumption: ≤ 30 mA

Switching output: PNP

Signal voltage PNP HIGH/LOW: Uv – 2.5 V / approx. 0 V

Output current I_max. : 100 mA

Response time: ≤ 2.5 ms

Switching frequency: 200 Hz

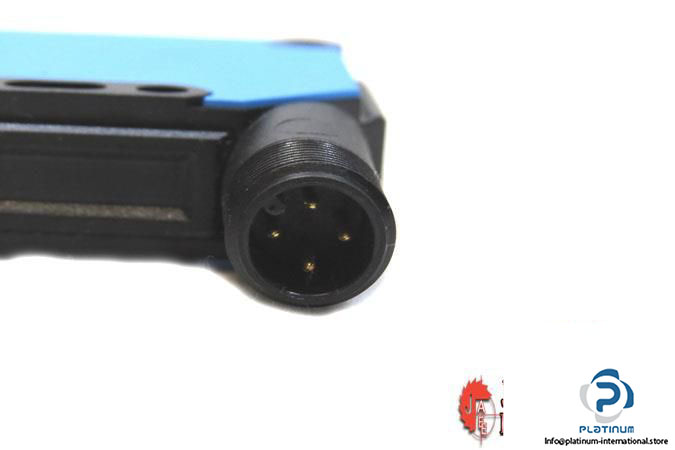

Connection type: Male connector M12, 4-pin

Ambient operating temperature: -30 … +60 °C

Optics material: Plastic, PMMA

Dimensions (W x H x D): 15.6 X 65 X 42 mm

Weight: 120 g

Condition: New
