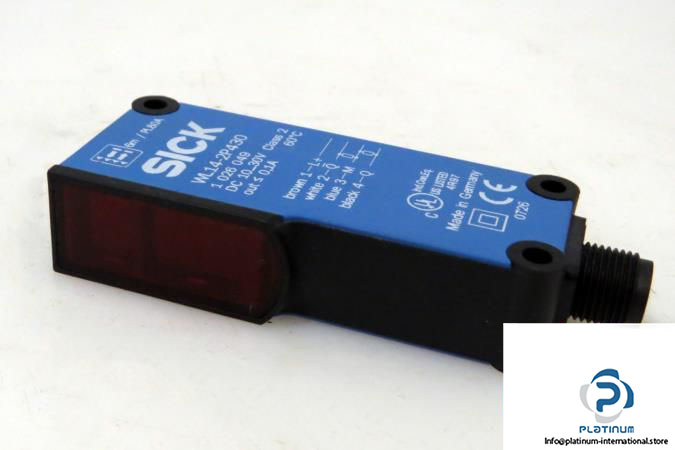

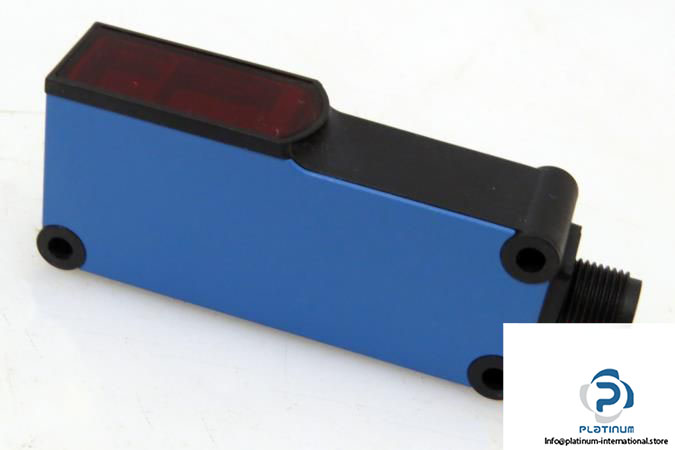

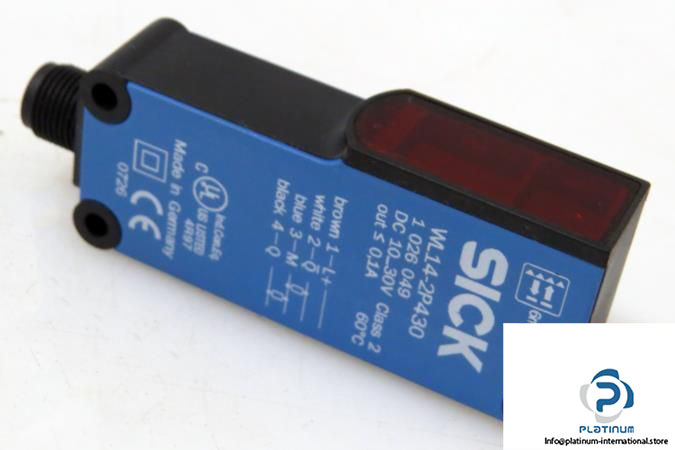

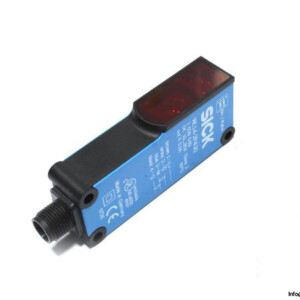

Sick WL14-2P430 Photoelectric Retro-Reflective Sensor Dual Lens

Manufacturer: SICK

Type: Photoelectric Rerto-Reflective Sensor, Dual Lens

Model: WL14-2P430

Part No.: 1 012 925

Sensing range max. : 0.15 … 6 m

Type of light : Visible red light

Light source : LED

Light spot size (distance) : Ø 140 mm

Wave length : 645 nm

Supply voltage : 10 V … 30 V DC

Power consumption : ≤ 35 mA

Output type : PNP

Output function : Complementary

Switching mode : Light/dark switching

Output current Imax. : ≤ 100 mA

Response time : ≤ 2.5 ms

Switching frequency : 200 Hz

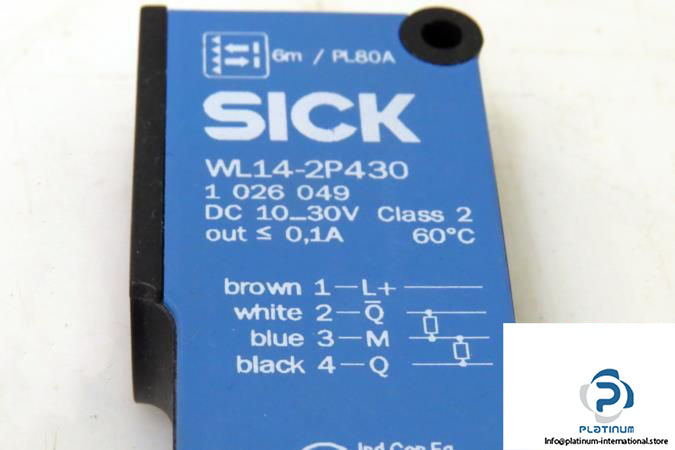

Connection type    : Male connector M12, 4-pin

Enclosure rating : IP67

Ambient operating temperature : –25 … +60 °C
