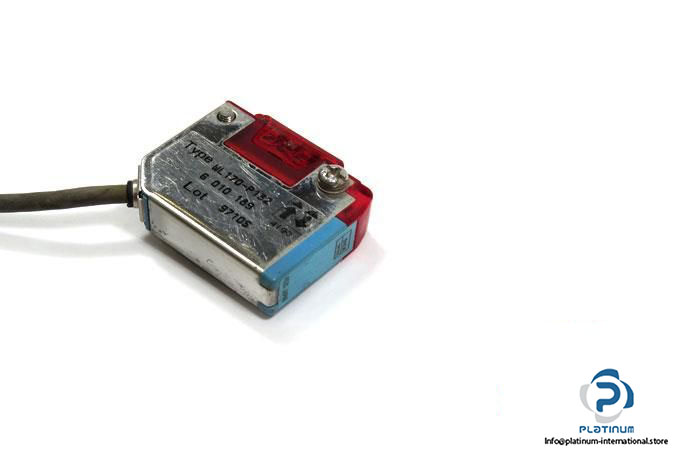

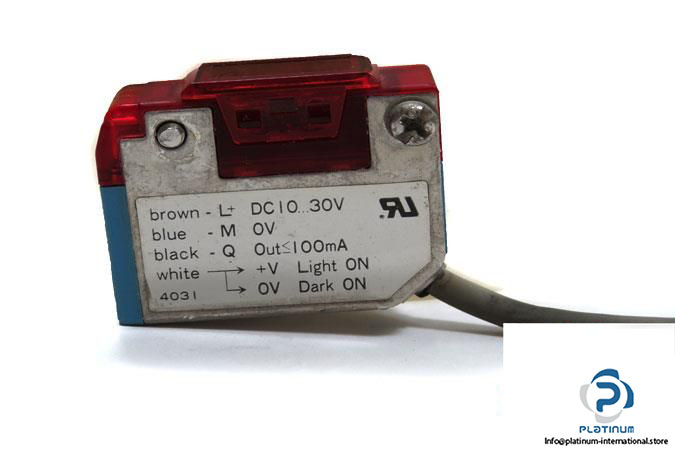

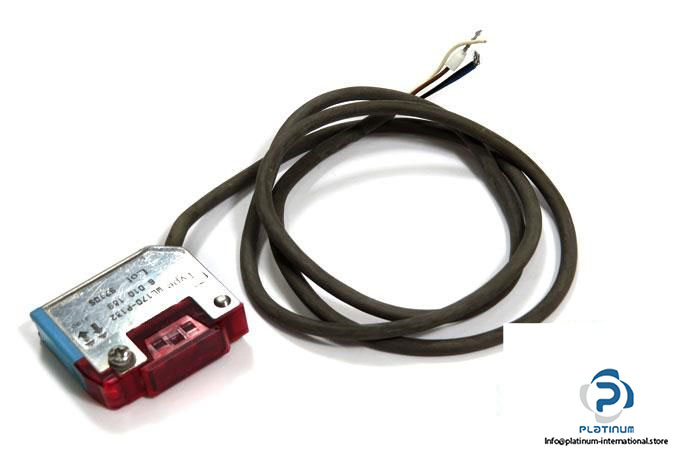

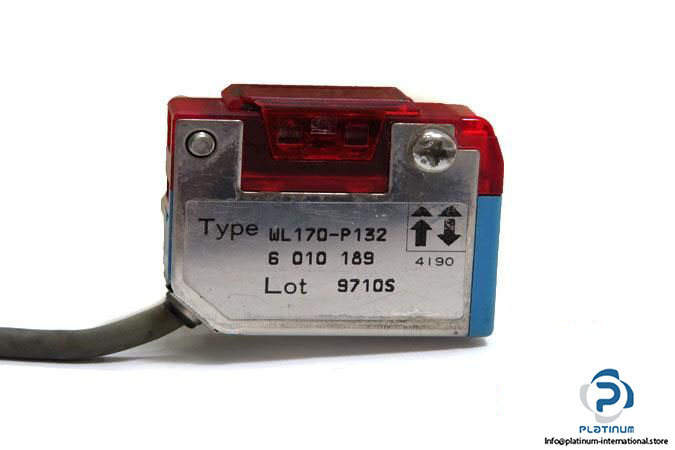

Sick WL170-P132 Photoelectric Retro-Reflective Sensor

Manufacturer: SICK

Type:  PHOTOELECTRIC RETRO-REFLECTIVE SENSOR

Model: WL170-P132

Part No.: 6010189

Sensing Range (PL80A): 0.01 … 4 m

Sensing Range (P250): 0.01 … 3 m

Response time: ≤ 0.7 ms

Operating Voltage: 10 … 30 V DC

Ripple: ± 10 %

Continuous current: 100 mA DC

Switching output: PNP

Switching mode: Light/dark switching

Type of light: LED, Visible red light

Connector type: PVC Cable, 2 m

Enclosure rating: IP67

Ambient Operating temperature: -25 … 55°C

Dimensions (W X H X D): 12 mm x 37 mm x 28.6 mm

Housing: Rectangular

Housing material: Stainless steel

Optics material: PMMA

Condition: Used
