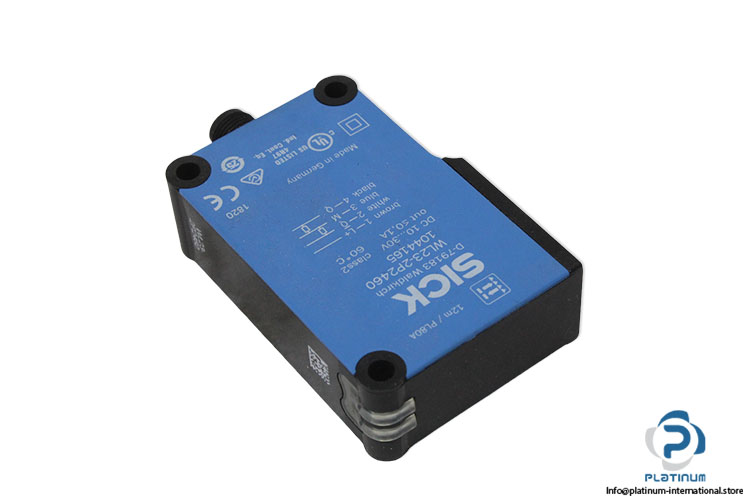

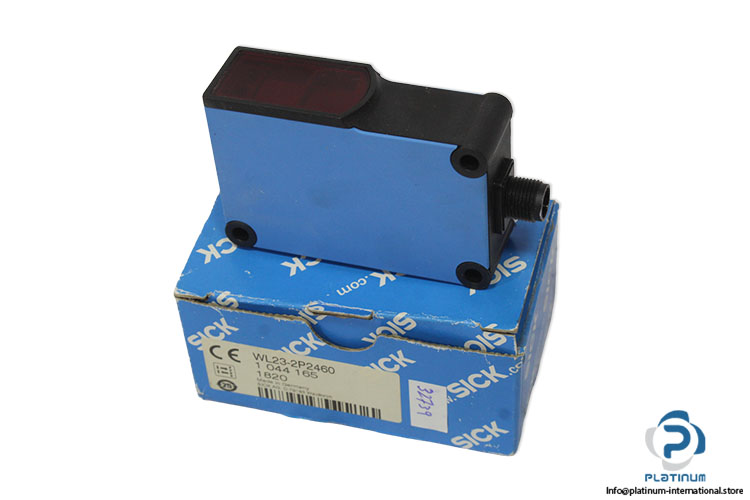

Sick WL23-2P2460 Photoelectric Sensor
New
In stock1 unitReady to ship
Photoelectric Sensor SICK WL23-2P2460 photoelectric retro-reflective sensor with dual lens technology, PinPoint LED, PNP output, M12 connector, and IP67 protection for industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 1044165 |
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Dual lens |
| Dimensions (W x H x D) | 24.6 mm x 80.6 mm x 54 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0.1 m ... 12 m |
| Sensing range | 0.3 m ... 9 m |
| Focus | 1.5° |
| Type of light | Visible red light |
| Light source | PinPoint LED |
| Light spot size (distance) | Ø 45 mm (2.7 m) |
| Angle of dispersion | 1.5° |
| Wave length | 660 nm |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | 5 Vpp |
| Current consumption | 35 mA |
| Switching output | PNP |
| Output function | Complementary |
| Switching mode | Light/dark switching |
| Switching frequency | 200 Hz |
| Connection type Male connector | M12, 4-pin |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –30 °C ... +60 °C |
| Stock Key | CON-003 |
| Condition | New |
| SKU | 1099218 |
| Weight | 0,09 |
