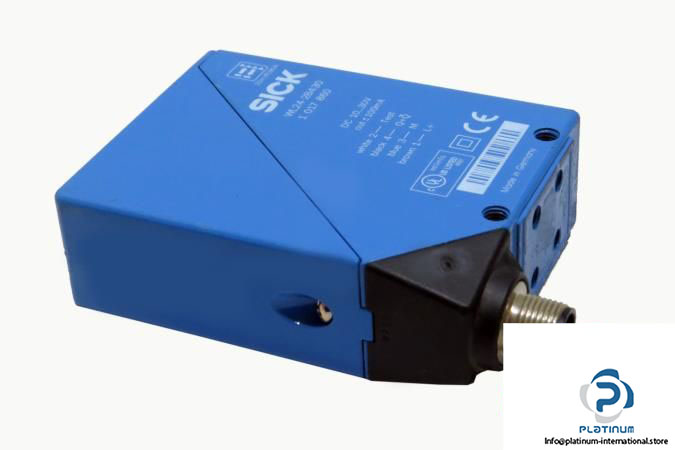

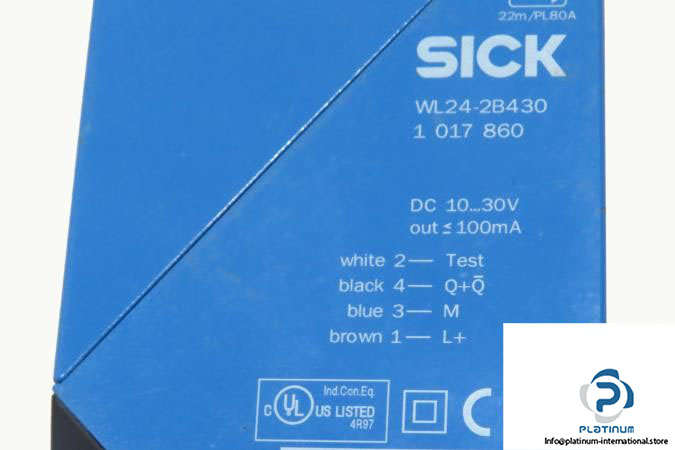

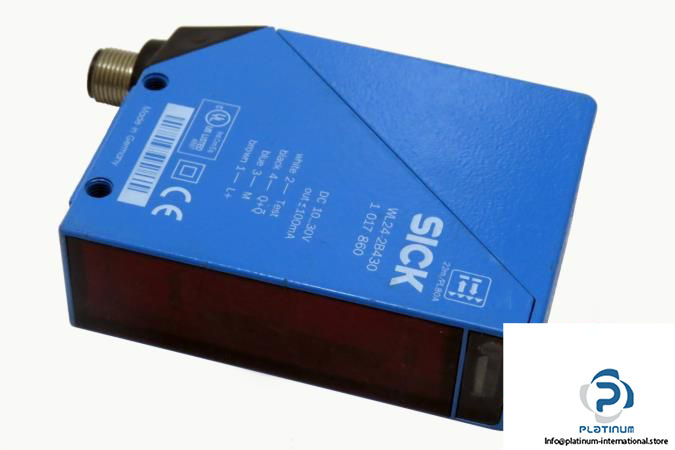

Sick WL24-2B430 Photoelectric Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC SENSOR

Model: WL24-2B430

Sensing range: 0 m … 22 m

Type of light: Visible red light

Light source: LED

Light spot size (distance): Ø 250 mm (15 m)

Adjustment: Potentiometer

Supply voltage: 10 … 30 V DC

Power consumption : ≤ 50 mA

Switching output: PNP / NPN

Switching mode: Light/dark switching

Output current Imax.: ≤ 100 mA

Response time: ≤ 500 µs

Switching frequency: 1,000 Hz

Connection type: Male connector M12, 4-pin

Enclosure rating: IP69K

Ambient operating temperature: -40 … +60 °C

Weight: 330 g

Condition: Used
