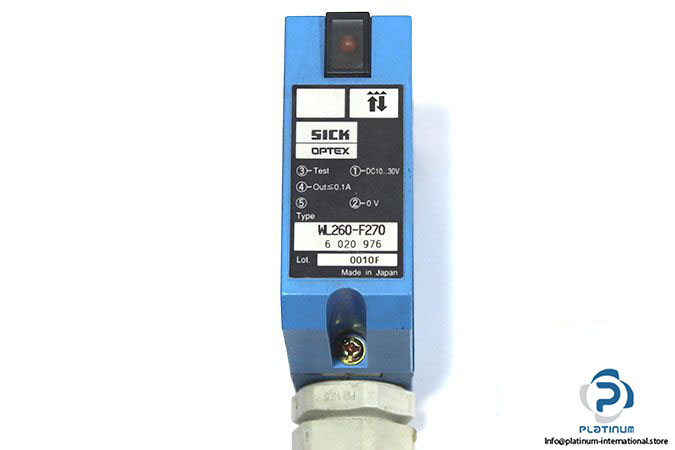

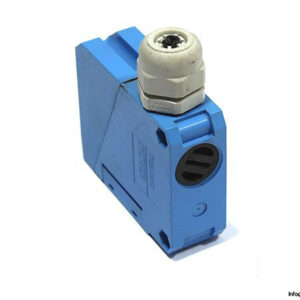

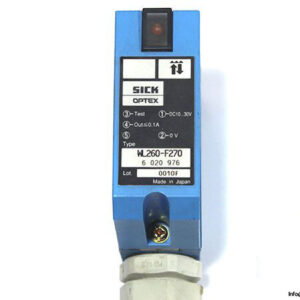

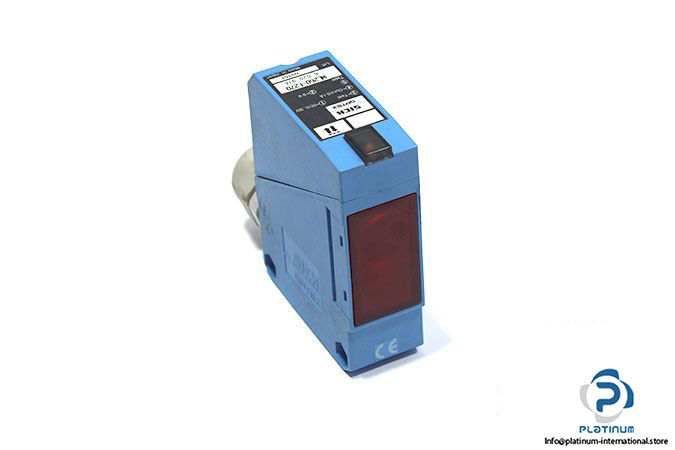

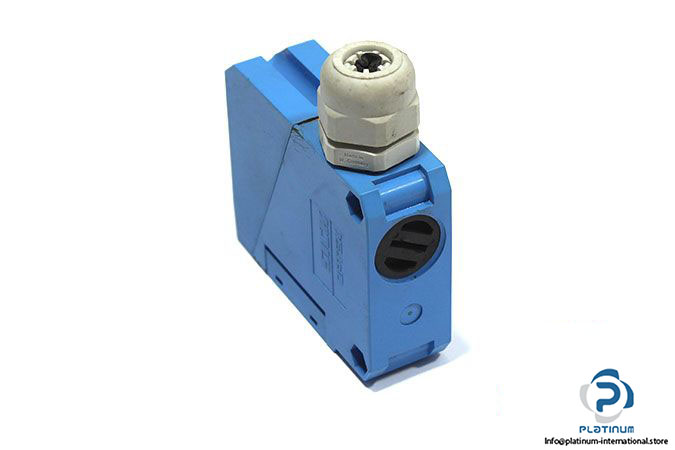

Sick WL260-F270 Photoelectric Retro-Reflective Sensor

Manufacturer: SICK

Type: Photoelectric Retro-Reflective Sensor, Dual Lens

Model: WL260-F270

Part No.: 6020976



Sensing Range Sn: 0.01 … 9.5 m / 0.01 … 11.5 m

Supply Voltage: 10 … 30 V DC

Output Current I_max: 100 mA

Current Consumption: 35 mA

Switching Frequency: 333 Hz

Switching Output: PNP

Switching Mode: Light / Dark Switching

Housing Design: Rectangular

Connection Type: Cable Gland

Ambient Operating Temperature: -25 … 55 °C

Protection Class: II

Enclosure Rating: IP67

Dimensions (W x H x D): 25 x 78 x 63 mm

Adjustment: Potentiometer, 270°

Housing Material: Plastic, ABS

Optics Material: Plastic, PMMA
