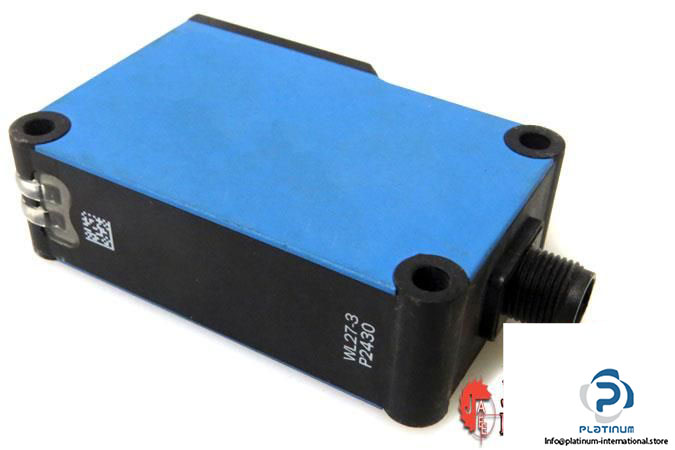

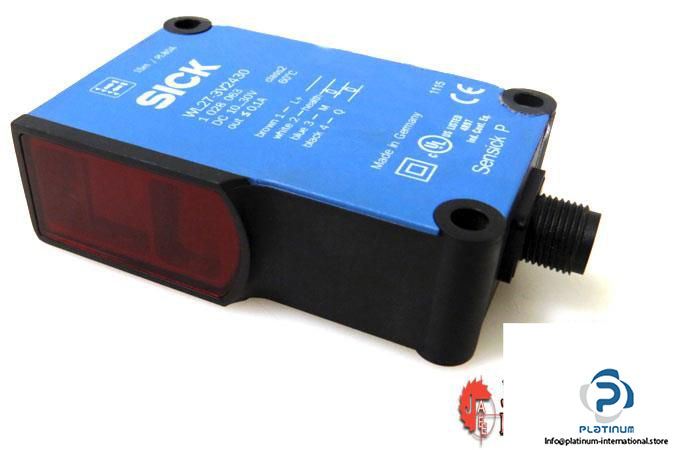

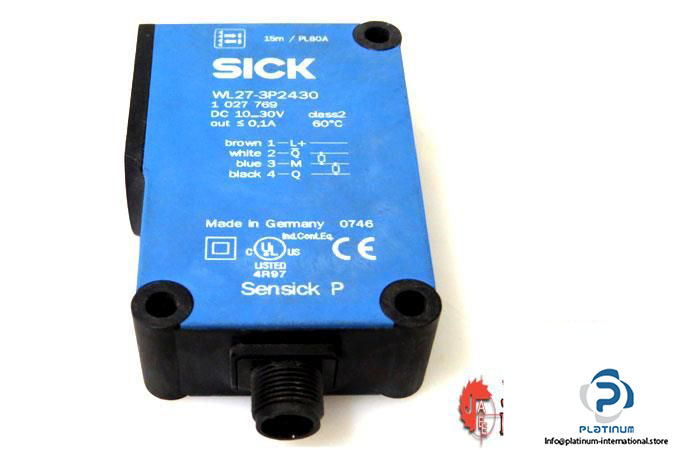

Sick WL27-3P2430 Photoelectric Retro-Reflective Sensor Dual Lens
Manufacturer : SICK
Type : PHOTOELECTRIC RETRO-REFLECTIVE SENSOR, DUAL LENS
Model : WL27-3P2430
Sensing range : 0.1 … 11 m
Type of light : Visible red light
Light source : LED
Light spot size : Ø 220 mm
Wave length : 660 nm
Supply voltage : 10 … 30 V DC
Ripple : ≤ 5 Vpp
Power consumption : ≤ 30 mA
Output type : PNP
Output current : ≤ 100 mA
Response time : ≤ 500 µs
Switching frequency : 1,000 Hz
Connection type : Male connector M12, 4-pin
Enclosure rating : IP69K
Ambient operating temperature : -40 … +60 °C
