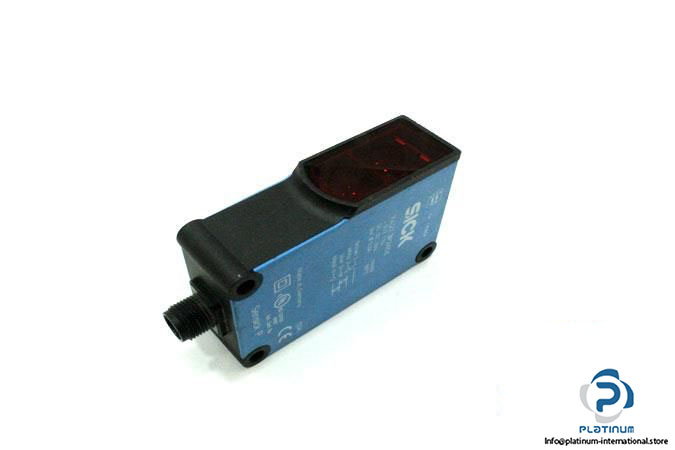

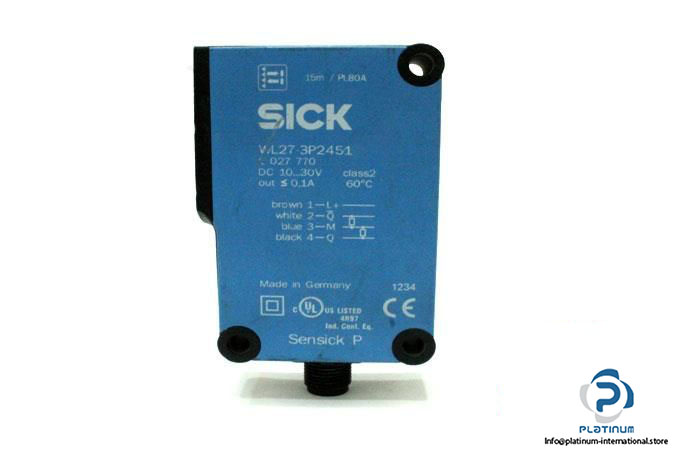

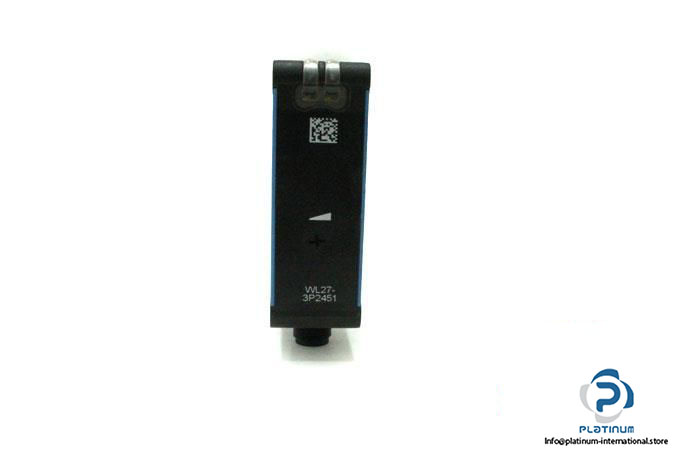

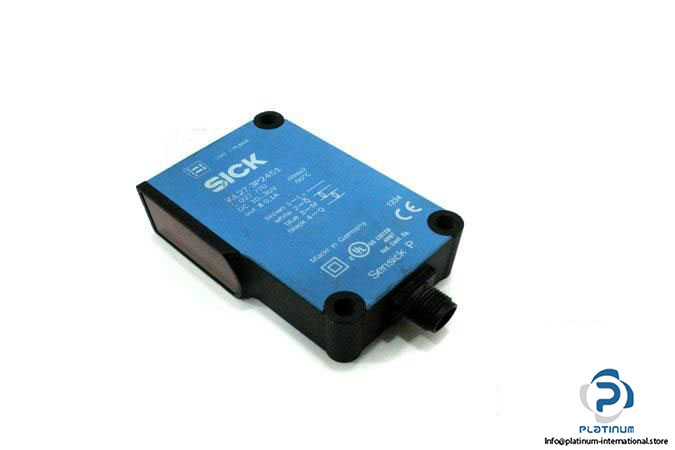

Sick WL27-3P2451 Photoelectric Retro-Reflective Sensor, Dual Lens

Manufacturer: SICK

Type: PHOTOELECTRIC RETRO-REFLECTIVE SENSOR, DUAL LENS

Model: WL27-3P2451

Part No.: 1027770

Sensing Range (Reflector PL80A): 0.1 … 15 m

Sensing Range: 0.1 … 11 m

Response time: ≤ 500 µs

Operating Voltage: 10 … 30 V DC

Ripple: ≤ 5 V_pp

Switching frequency: 1000 Hz

Continuous current: 100 mA DC

Switching output: PNP

Switching mode: Light/dark switching

Type of light: LED, Visible red light

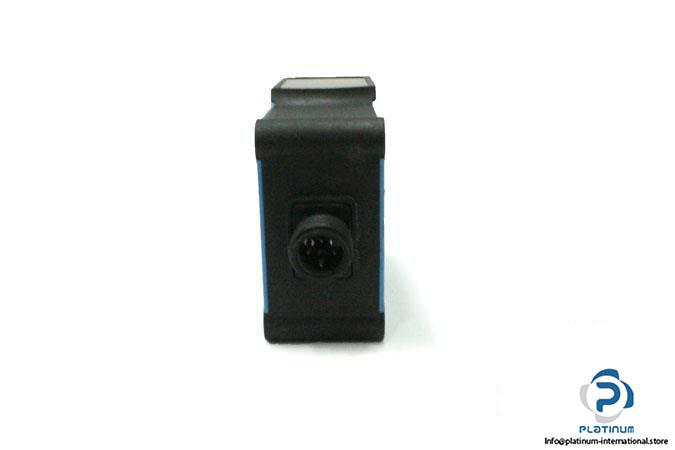

Connector type: M12 Connector, 4-pin

Protection Class: II

Enclosure rating: IP69k

Ambient Operating temperature: -40 … 60°C

Diameter, housing length: 24.6 x 80.6 x 54 mm

Weight: 100 g

Housing: Rectangular

Housing material: Plastic

Optics material: PMMA

Condition: Used
