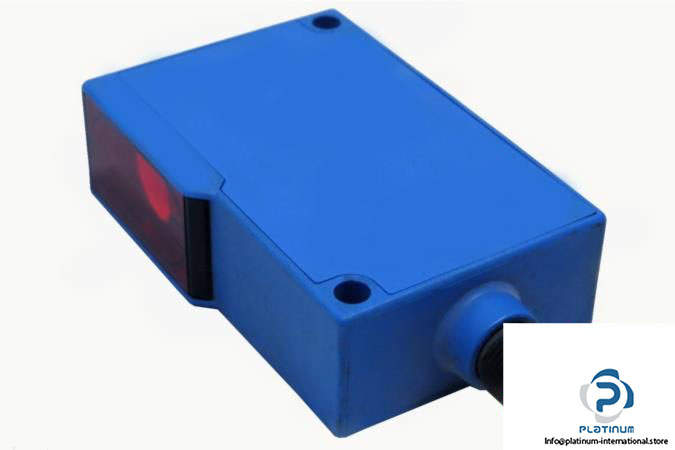

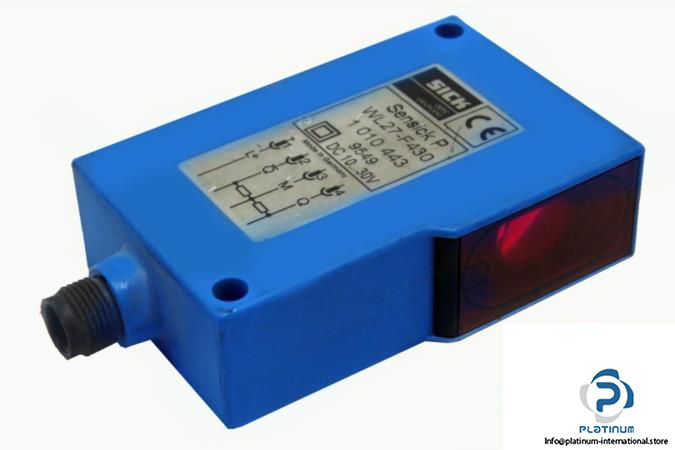

Sick WL27-F430 Retro-Reflective Sensor

Manufacturer: SICK
Type: Retro-Reflective Sensor
Model: WL27F430
Part No.: 1010443 / 9549

Sensing Range: 300 … 900 mm
Light Emission: Rectangular
Light Source: LED
Light Type: Visible Red Light
Switching Mode: Dark Switching
Operating Voltage: 10 … 30 V DC
Current Consumption: 25 mA
Switching Output: PNP

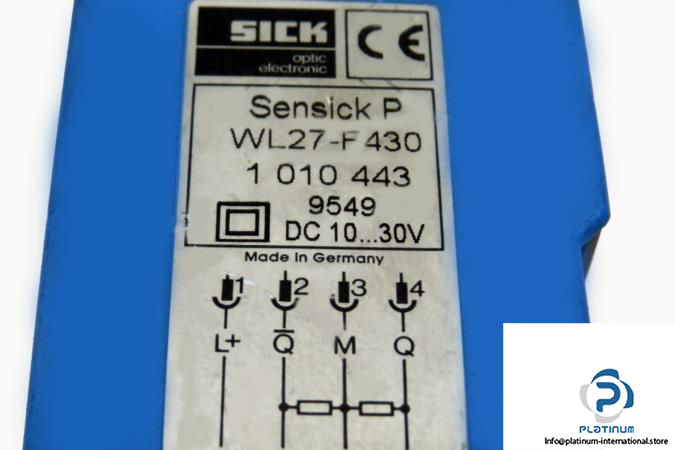

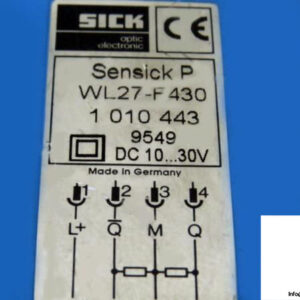

Connection Type: Cable with M12 Male Connector, 4-Pin
Housing Material: Plastic, ABS
Protection Class: IP54
Operating Temperature: -10 … 55 °C
Dimensions: 149.5 x 110 x 46 mm
