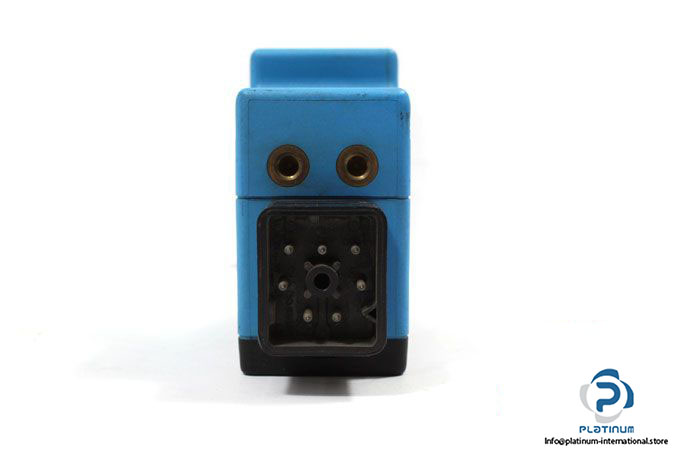

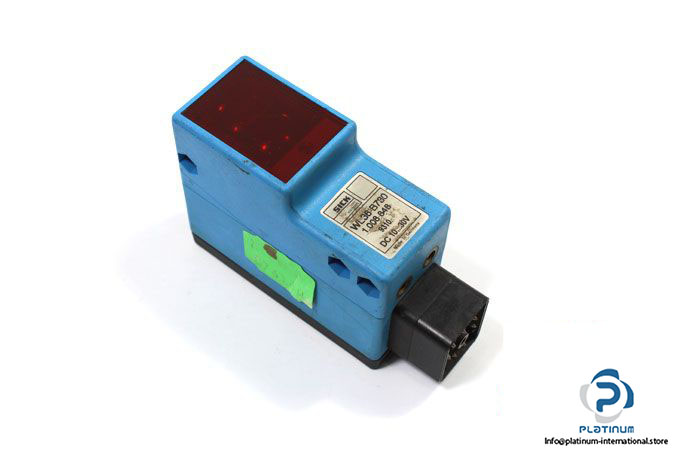

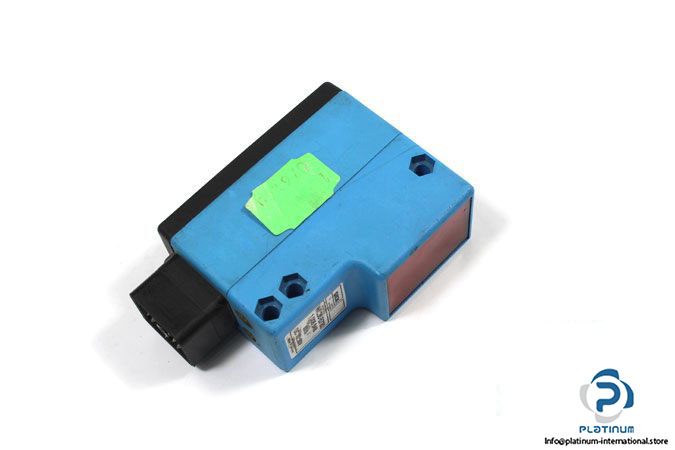

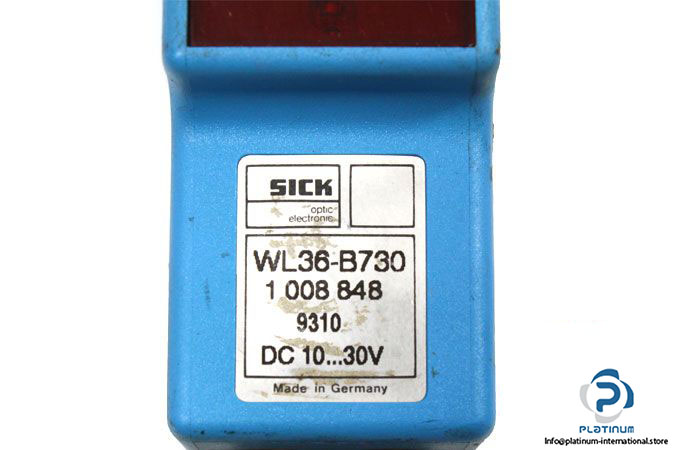

Sick WL36-B730 Photoelectric Retro-Reflective Sensor

Manufacturer:  SICK

Type: PHOTOELECTRIC RETRO-REFLECTIVE SENSOR

Model : WL36-B730

Part No.: 1008848

Sensing range max.: 0.1 m … 22 m

Sensing range: 0.1 m … 15 m

Response time: ≤ 1.25 ms

Operating Voltage: 10 … 30 V DC

Power consumption: 40 mA

Switching frequency max.: 400/s

Electrical design: PNP/NPN

Switching output: Light/dark switching

Adjustment: Potentiometer

Type of light: Visible red light

Connector type: Q7, 7-pin, DC

Enclosure rating: IP65

Ambient Operating temperature: -40 … 55°C

Dimensions (W x H x D):  36 x 85 x 72mm

Housing material: Plastic, Glass fiber reinforced plastic

Optics material: Plastic, PMMA
