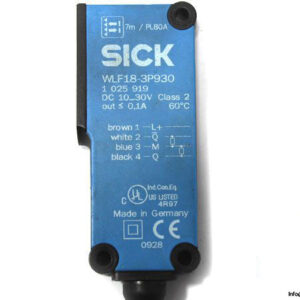

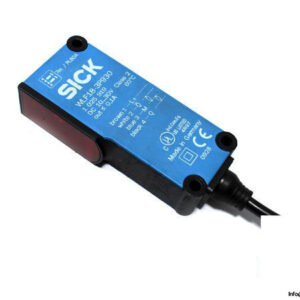

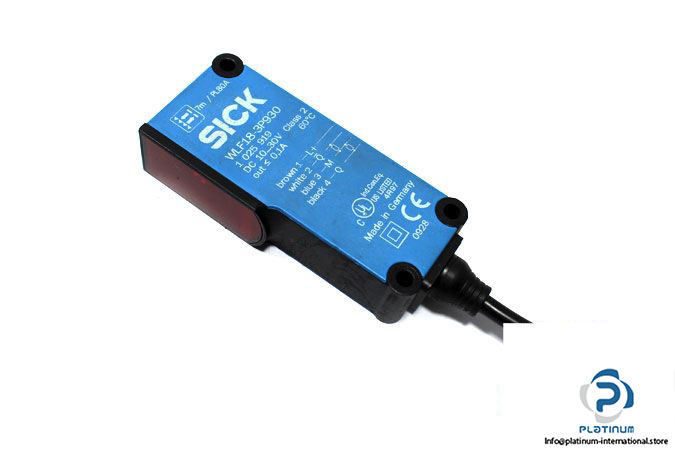

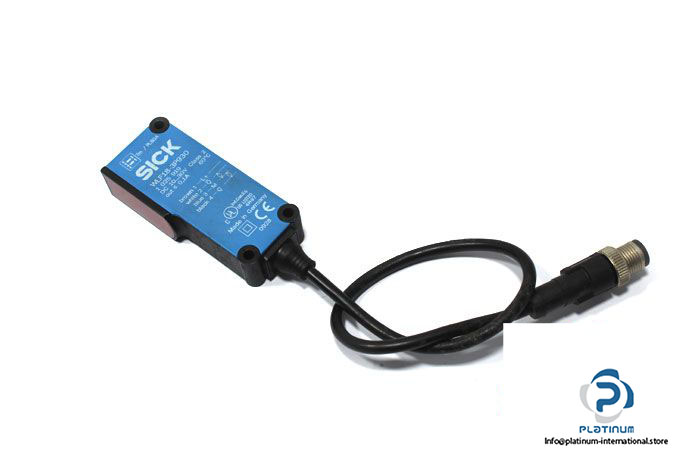

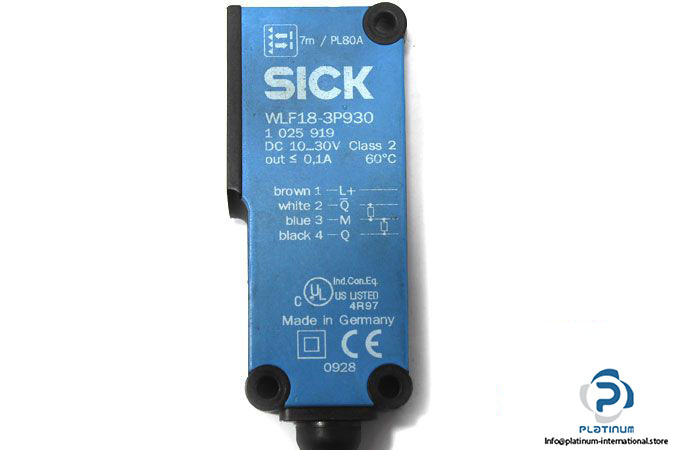

Sick WLF18-3P930 Photoelectric Retro-Reflective Sensor

Manufacturer: SICK
Type: Photoelectric Retro-Reflective Sensor, Autocollimation
Model: WLF18-3P930
Part no.: 1025919

Sensing range max.(Reflector PL80A): 0 … 7 m
Sensing range: 0 … 5 m
Supply voltage: 10 … 30 V DC
Power consumption: 40 mA
Switching output: PNP
Output function: Complementary
Output current max.: 100 mA
Response time max.: 500 µs
Switching mode: Light/dark switching
Switching frequency: 1,000 Hz
Type of Light: LED/Visible red light
Light spot size: 2 m
Angle of dispersion: 1.8°
Wave length: 645 nm

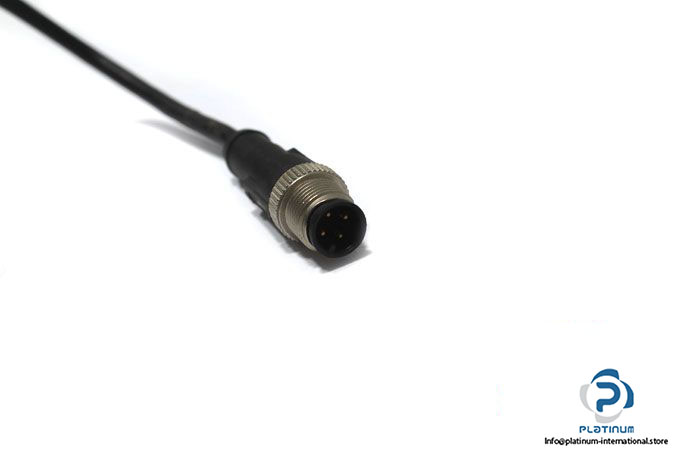

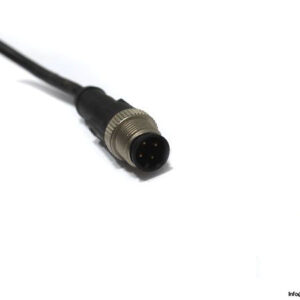

Connection: 0.29 m Cable with M12 4-pin male connector
Enclosure rating: IP67
Ambient operating temperature: -40 … +60 °C
Dimension (W X H X D): 17.6 X 75.5 X 33.5 mm
