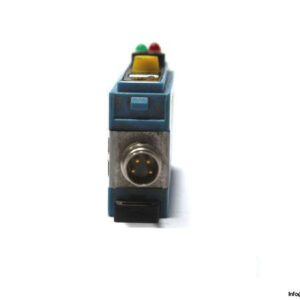

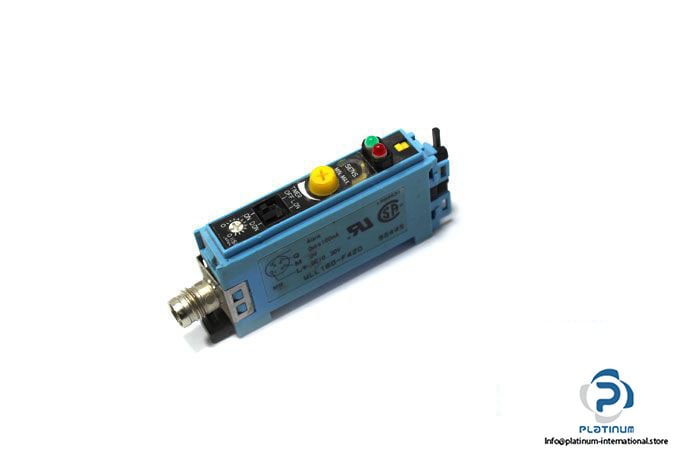

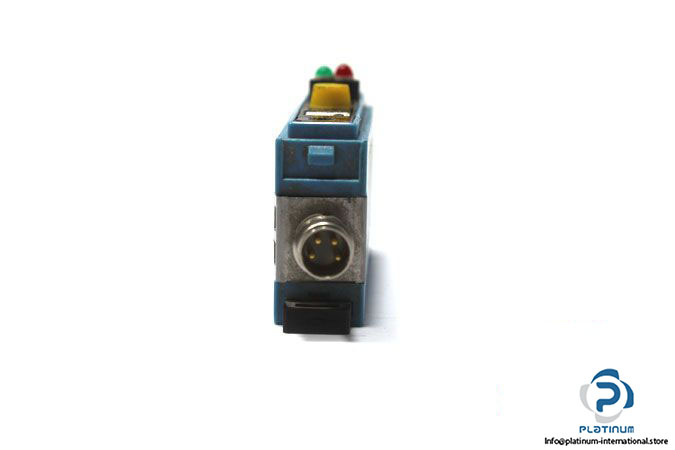

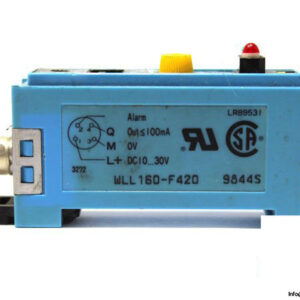

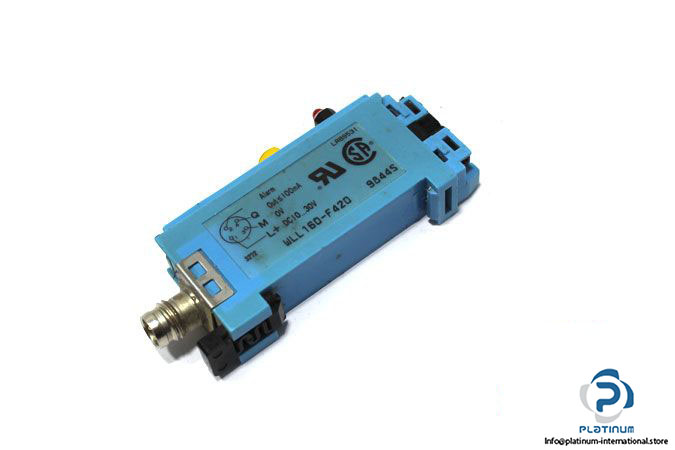

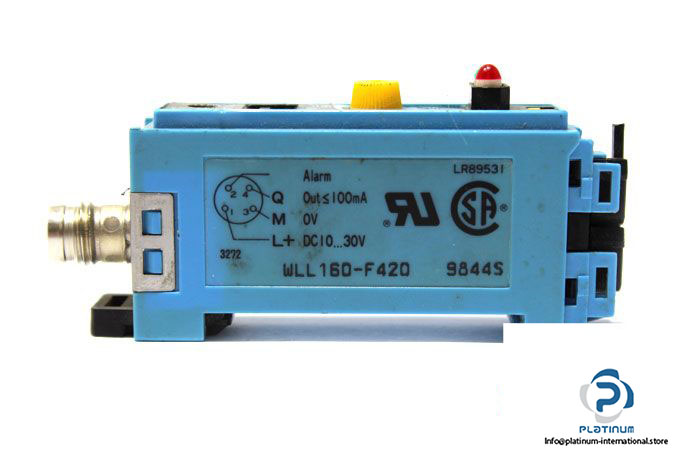

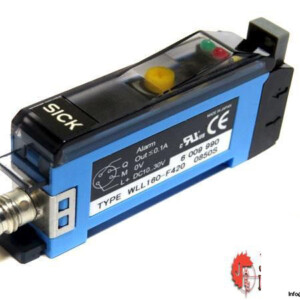

Sick WLL160-F420 Photoelectric Fiber-Optic Sensor

Manufacturer: SICK

Type: Photoelectric Fiber-optic Sensor

Model: WLL160-F420

Part No.: 6009990

Successor Model: GLL170-P334, GLL170-P34S08

Supply Voltage: 10 … 30 V DC

Power Consumption (without load): 30 mA

Output Current Max.: 100 mA

Ripple: ± 10 %

Switching Output: PNP

Switching Mode: Light/dark switching

Sensing Range Max.: 0  … 2,000 mm

Sensing Range: 0  … 400 mm

Response Time (with resistive load): ≤ 0.35 ms

Wave Length: 660 nm

Light Source, Type: LED, Visible red light

Connection Type: Male connector M8, 4-pin

Dimensions (W X H X D):12 X 38.5 X 59 mm

Ambient Operating Temperature: -25 … +55 °C

Enclosure rating: IP67
