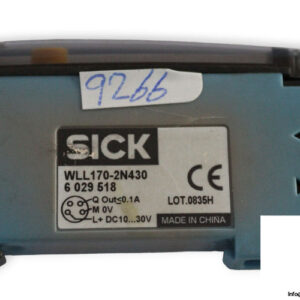

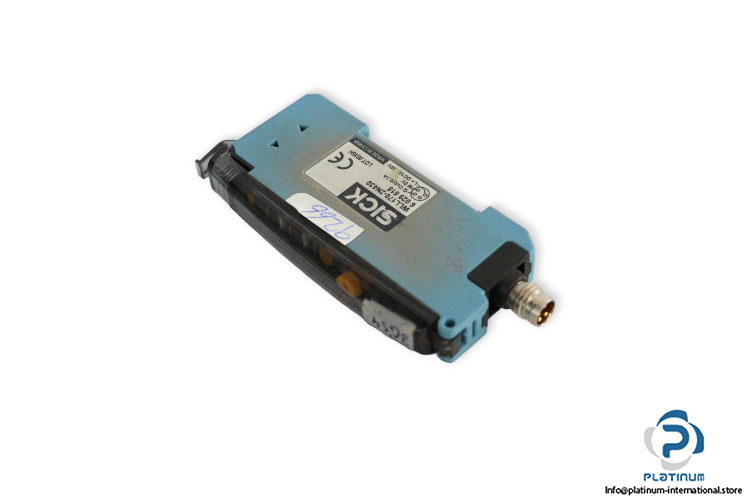

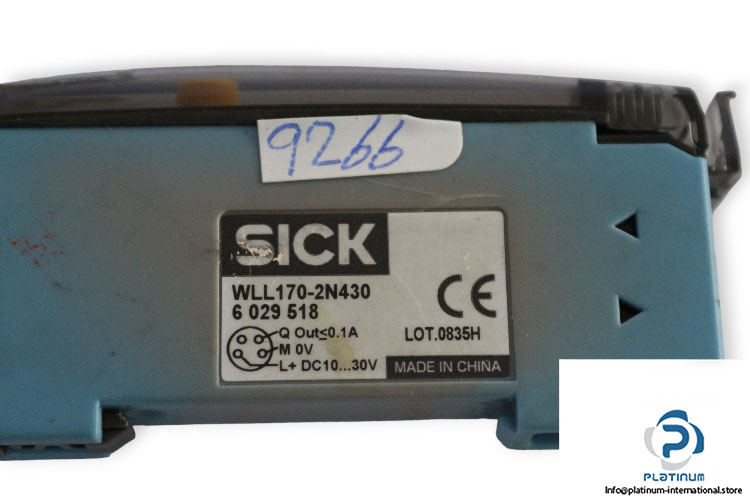

Sick WLL170-2N430 Fiber-Optic Photoelectric Sensor

Manufacturer: Sick
Type: Fiber-optic photoelectric sensor
Model: WLL170-2N430
Part No: 6029518

Supply Voltage: 10 … 30 V DC
Power Consumption: 30 mA
Output Type: NPN
Output Current: 100 mA
Housing design: Rectangular
Connection type: Connector M8, 4-pin
Sensing range: 0 mm … 160 mm (Proximity system),
0 mm … 700 mm (Through-beam system)
Wave length: 660 nm

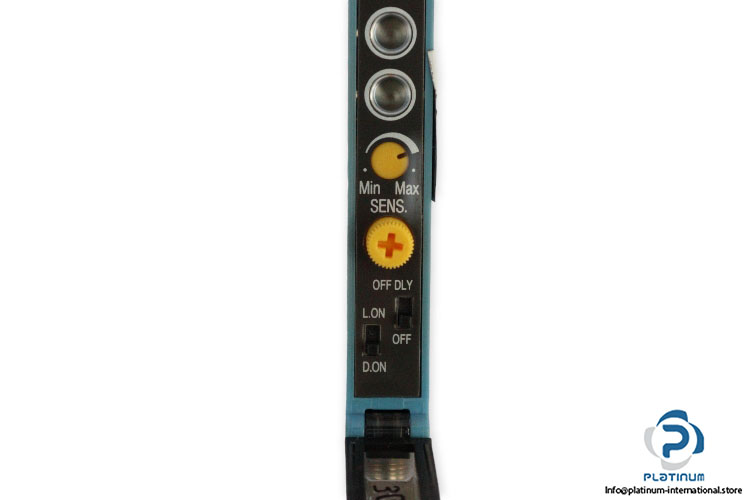

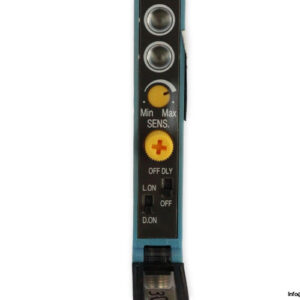

Adjustment: Potentiometer, 10 turns
Operating Temperature: -25 … 55 °C
Degree of protection: IP66
Dimensions: 10.5 X 35.5 X 83.7 mm
