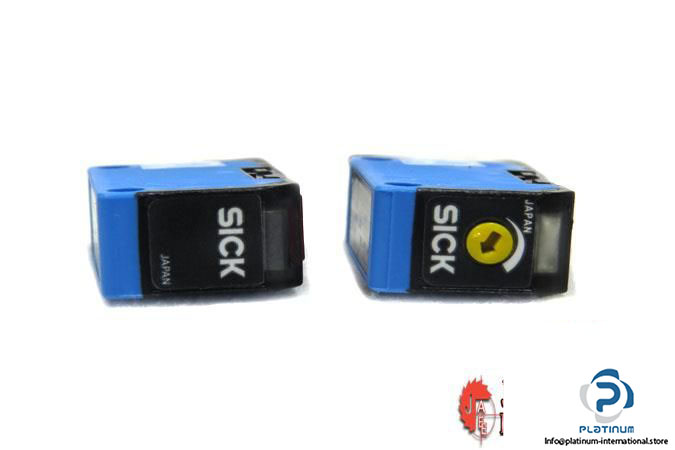

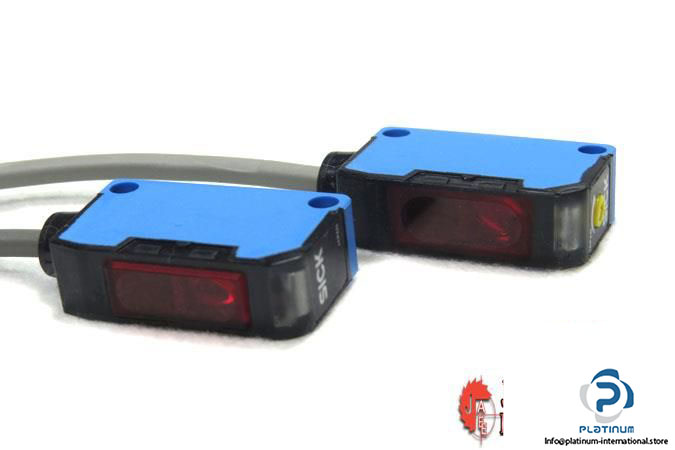

Sick WS/WE150-P132 Through-Beam Photoelectric Sensor

Manufacturer: SICK

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR

Model: WS/WE150-P132

Set. Part No.: 6011030

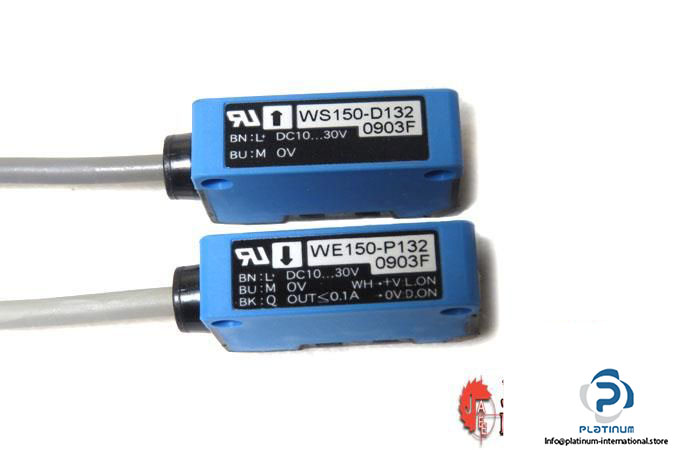

Receiver model: WE150-P132

Sender model: WS150-D132

Supply voltage: 10 … 30 V DC

Power Consumption, sender (without load): 15 mA

Power Consumption, receiver (without load): 20 mA

Output current max.: ≤ 100 mA

Ripple: ± 10 %

Switching output: PNP

Switching mode: Light/dark switching

Switching mode selector: Selectable via L/D control cable

Switching frequency: 1,000 Hz

Angle of dispersion: 6°

Angle of reception: 15°

Sensing range max.: 0 … 4.4 m

Response time (with resistive load): ≤ 0.5 ms

Light source, type: Led, Visible red light

Adjustment: Potentiometer, 270°

Dimensions (W X H X D): 10 X 28 X 17.5 mm

Weight: 44 g

Connection type, Length: Cable, 4-wire, 2 m

Ambient operating temperature: -25 … +55 °C

Enclosure rating: IP67

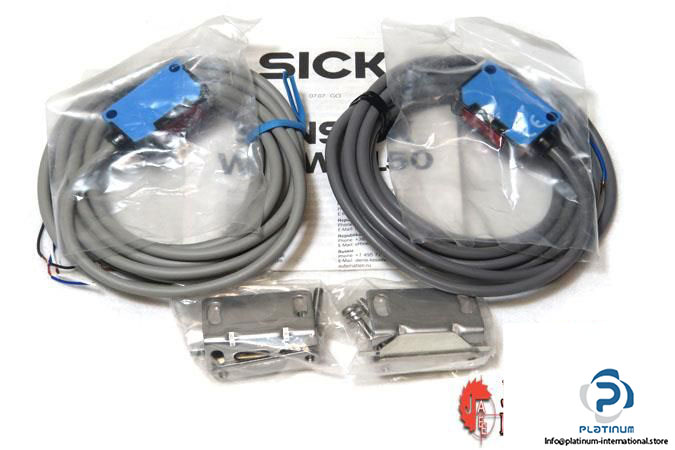

Items supplied: BEF-W150-A Mounting bracket

Condition: New
