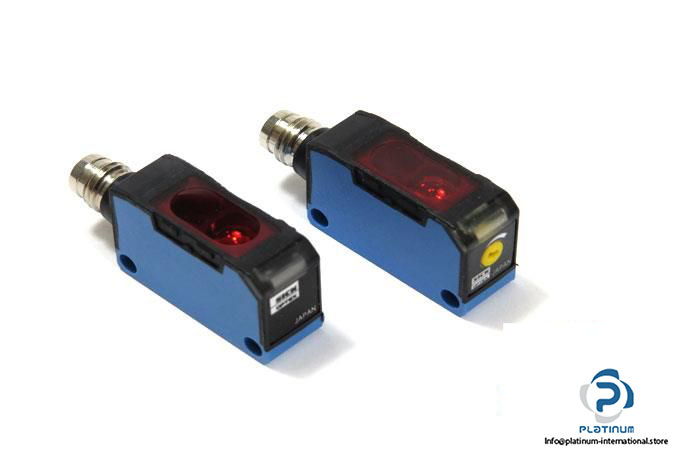

Sick WS/WE150-P430 Through-Beam Photoelectric Sensor

Manufacturer: SICK

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR

Set Model: WS/WE150-P430

Part No.: 6011032

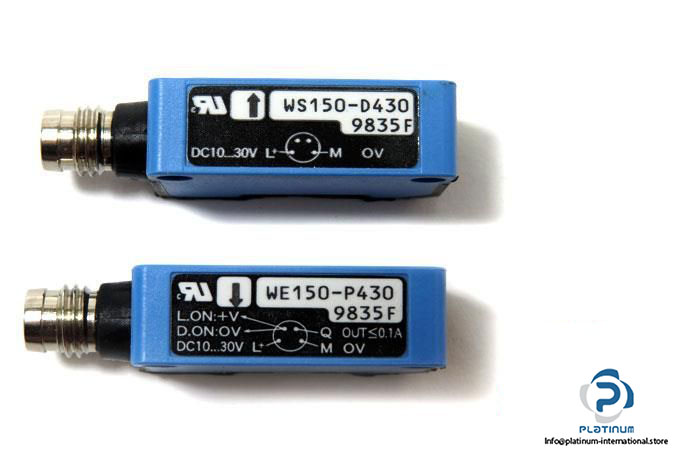

Sender Model: WS150-D430

Receiver Model: WE150-P430

Sensing Range: 0 … 4 m

Response time max.: 0.5 ms

Operating Voltage: 10 … 30 V DC

Switching frequency: 1000 Hz

Rated operating current: 100 mA DC

Switching output: PNP

Switching mode: Light/dark switching

Type of light: Visible red light

Angle of dispersion: 6°

Angle of reception: 15°

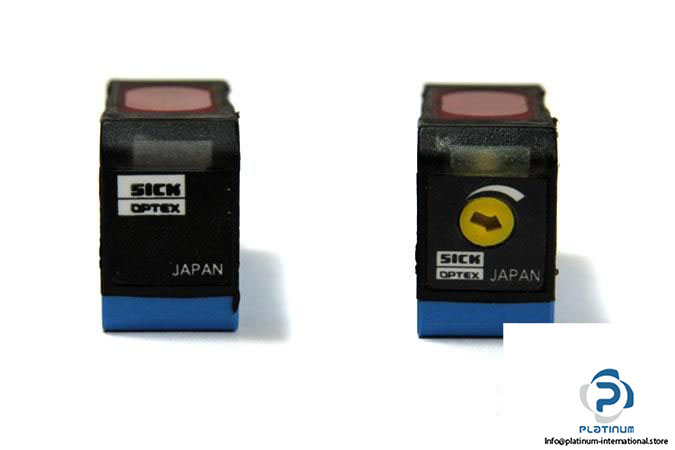

Adjustment: Potentiometer, 270°

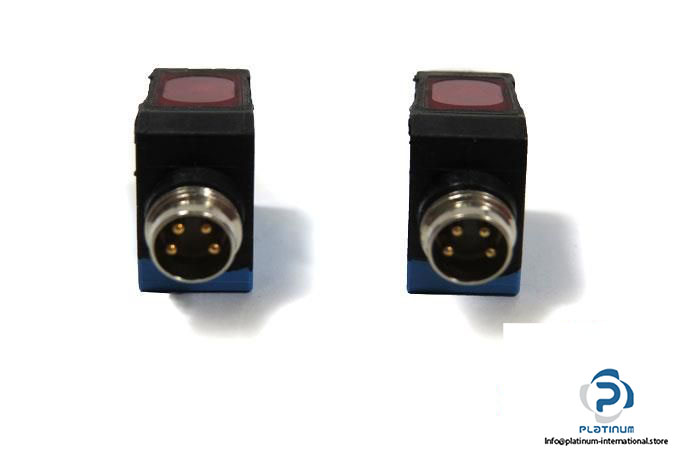

Connector type: M8 Connector, 4-pin

Enclosure rating: IP67

Ambient Operating temperature: -25 … 50°C

Dimensions (W X HX D): 10 x 28 x 17.5 mm

Housing: Rectangular

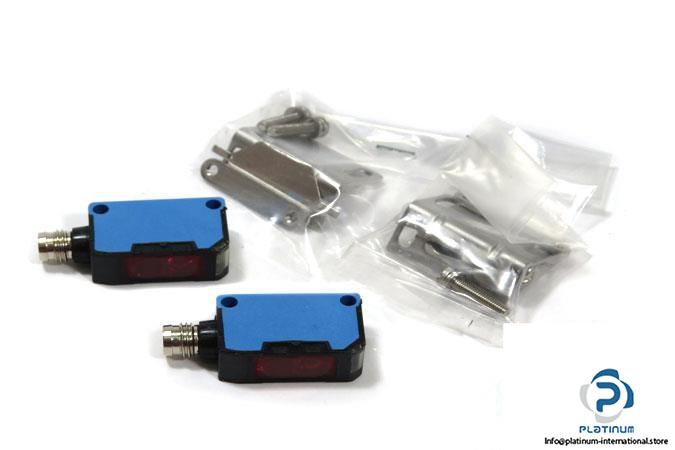

Supplied Accessories: BES-W150-A mounting brackets

Condition: New
