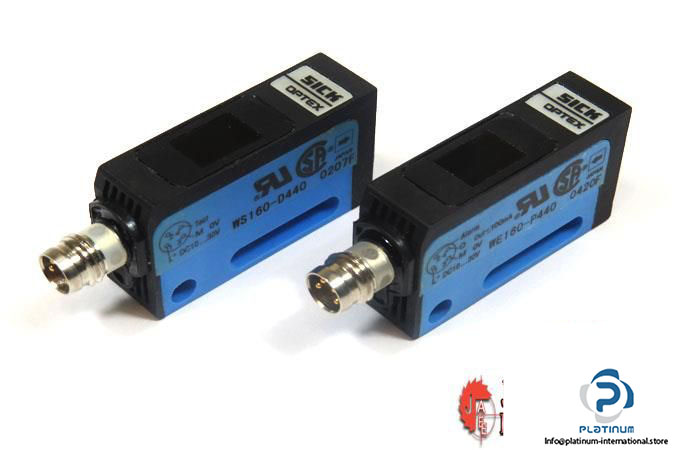

Sick WS/WE160-P440 Through-Beam Photoelectric Switch

Manufacturer: SICK

Type: THROUGH-BEAM PHOTOELECTRIC SWITCH

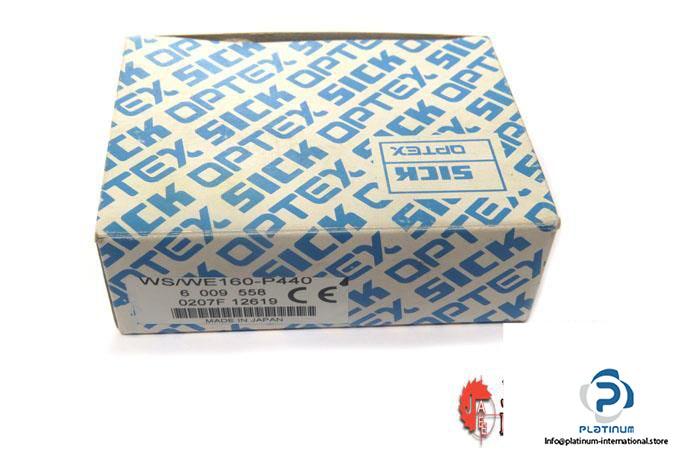

Set Model: WS/WE160-P440

Set part No.: 6009558

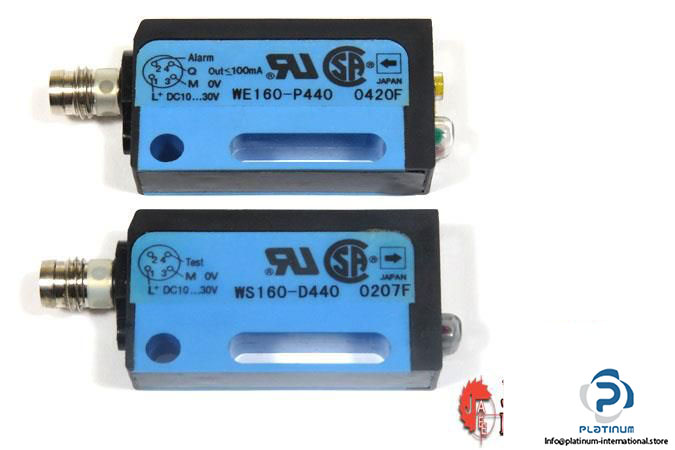

Sender Model: WS160-D440

Receiver Model: WE160-P440

Supply voltage: 10 … 30 V DC

Current consumption, sender (without load): ≤ 20 mA

Current consumption, receiver (without load) : ≤ 30 mA

Ripple: ± 10%

Switching output: PNP

Switching frequency max.: 300/s

Switching mode: Light/dark switching

Angle of dispersion, sender: Approx. 3.3°

Angle of dispersion, receiver: Approx. 15°

Scanning range max. : 0 … 8.5 m

Operating range: 0 m … 7 m

Operating range with filter, width 1 m: 0…1 m

Response time: ≤ 1.5 ms

Light spot diameter: Approx. 400mm at 7 m

Light source: LED, Infrared light

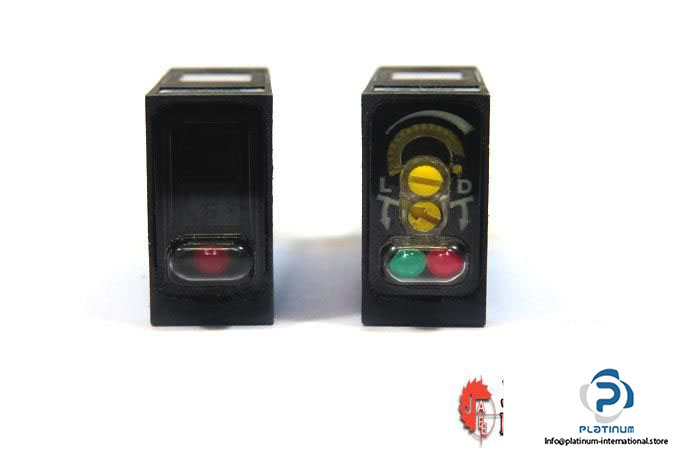

Adjustment: Potentiometer, 2 turns with scaling 270°

Weight Sender/receiver: each approx. 20 g

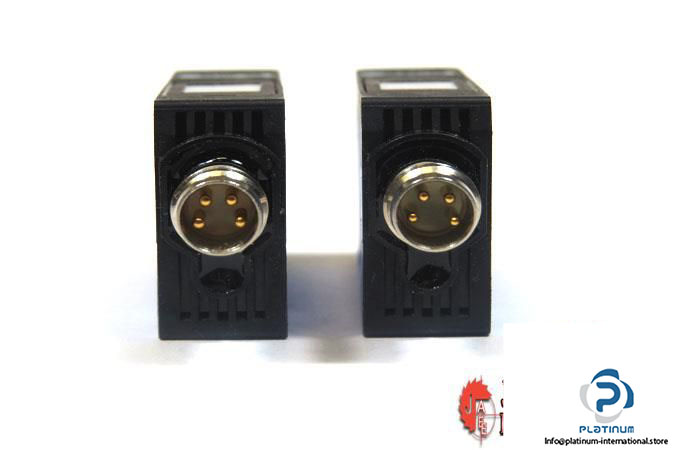

Connection type: Connector M8, 4-pin

Enclosure rating: IP67

Ambient operating temperature: –25 … +55 °C

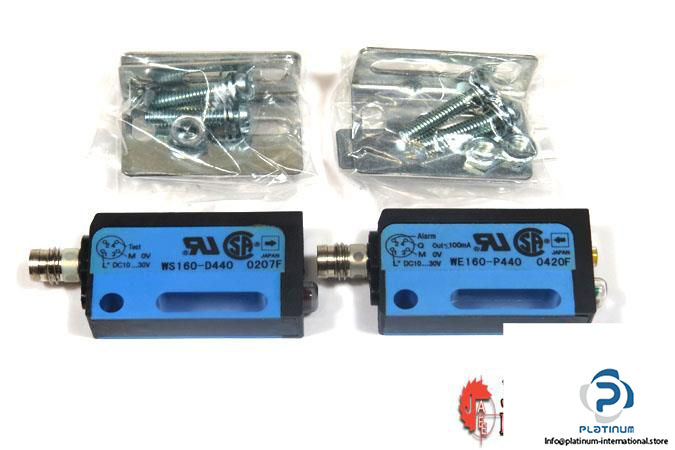

Supplied Accessories: Mounting Brackets

Condition: New
