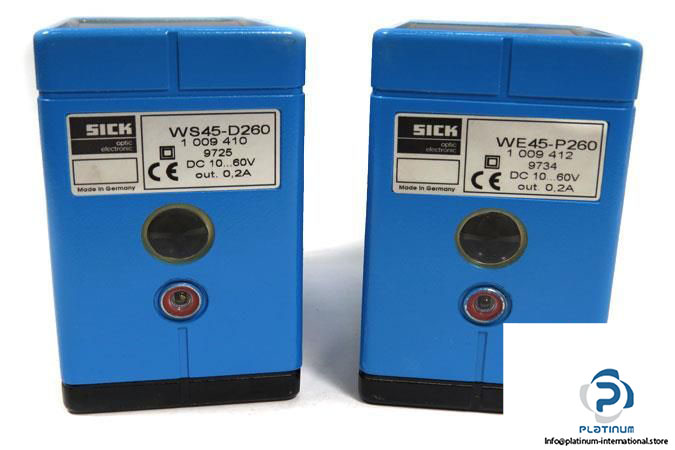

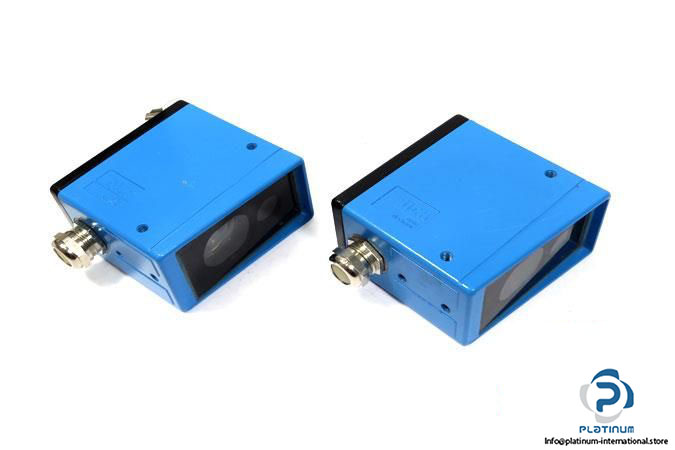

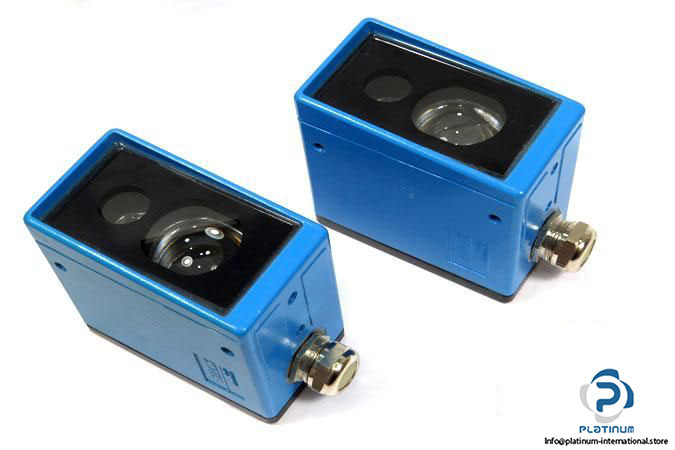

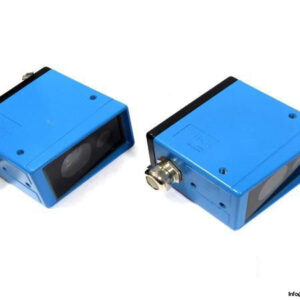

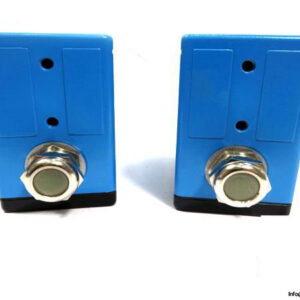

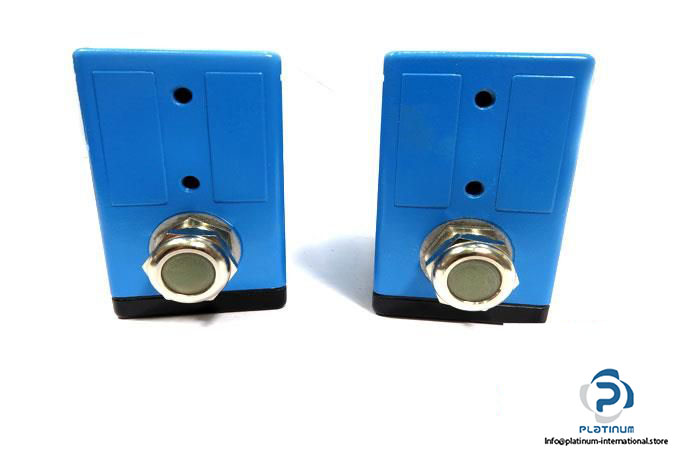

Sick WS/WE45-P260 Through-Beam Photoelectric Sensor

Manufacturer: SICK

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR

Set Model: WS/WE45-P260

Set Part No.: 1010985

Sender Model: WS45-D260

Receiver model: WE45-P260

Sensing Range: 0 … 350 m

Response time max.: 500 µs

Operating Voltage: 10 … 60 V DC

Ripple: ≤ 5 Vpp

Power consumption, sender: 50 mA

Power consumption, receiver: 50 mA

Switching frequency: 1000 Hz

Rated operating current: 200 mA DC

Switching output: PNP

Output function: Complementary

Switching mode: Light/Dark switching

Delay time: Adjustable via time delay selector switch, 0.5 s, 12 s

0.015 s, 0.3 s

Type of light: infrared light

Angle of dispersion: 0.9°

Light spot diameter/distance: 4.5, 300 m

Adjustment: Potentiometer

Protection class: I

Enclosure rating: IP67

Ambient Operating temperature: -25 … 55°C

Dimensions (W X H X D): 60 x 105 x 105 mm

Weight: 1600 g

Housing: Rectangular

Housing material: Metal

Condition: New
