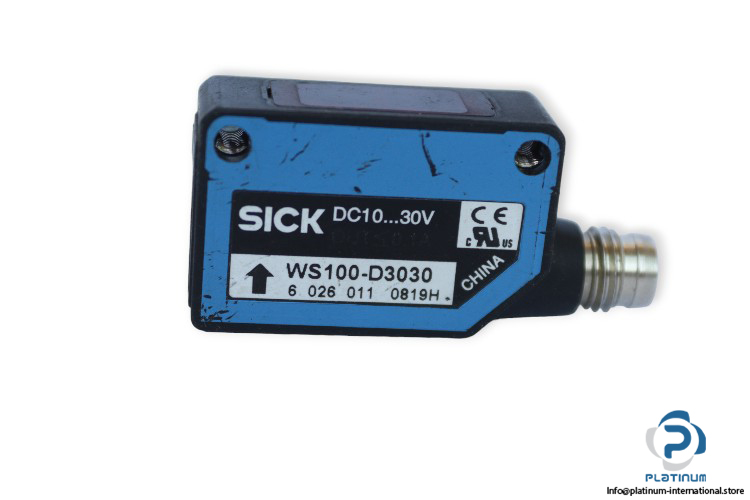

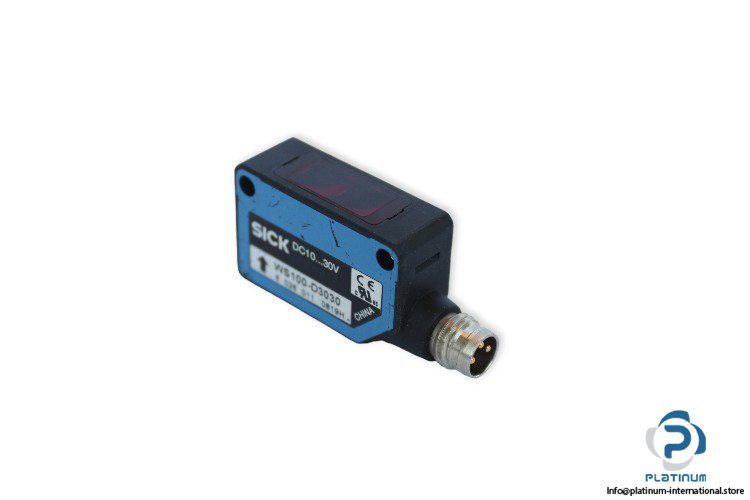

Sick WS100-D3030 Sender Through-Beam Photoelectric Sensor

Manufacturer: SICK
Type: Sender Through-Beam Photoelectric Sensor
Model: WS100D3030
Part No.: 6026011 0819H

Sensing range max.: 0 … 15 m
Sensing range: 0 … 12 m
Response time: ≤ 0.5 ms
Operating Voltage: 10 … 30 V DC
Ripple: ± 10 %
Current consumption, sender: ≤ 15 mA
Output current max.: ≤ 100 mA
Switching frequency: 1000 Hz
Switching output: PNP
Switching mode: Light/Dark switching
Light source, type: Visible red light
Wave length: 680 nm
Light spot size (distance): Ø 1,500 mm (12 m)
Angle of dispersion: Approx. 7.2°
Angle of reception: Approx. 15°
Adjustment: Potentiometer, 270°
Connector type: Connector M8, 3-pin
Enclosure rating: IP65
Ambient Operating temperature: -25 … 55°C
Dimensions: 11 x 31 x 20 mm
Housing: Rectangular
Housing material: Plastic, ABS/PC/POM
Sensing face material: Plastic, PMMA
