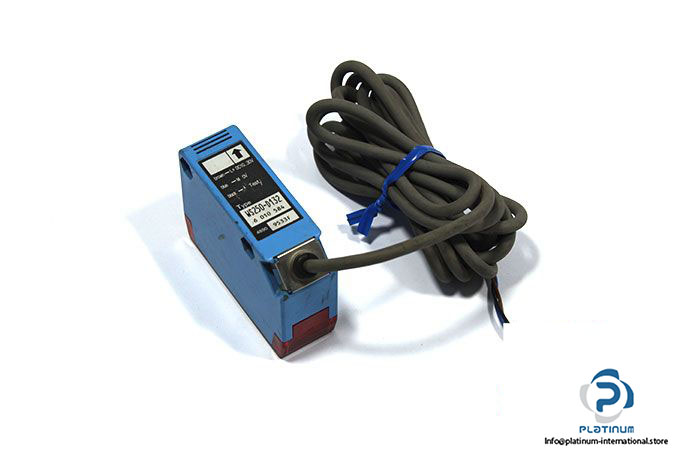

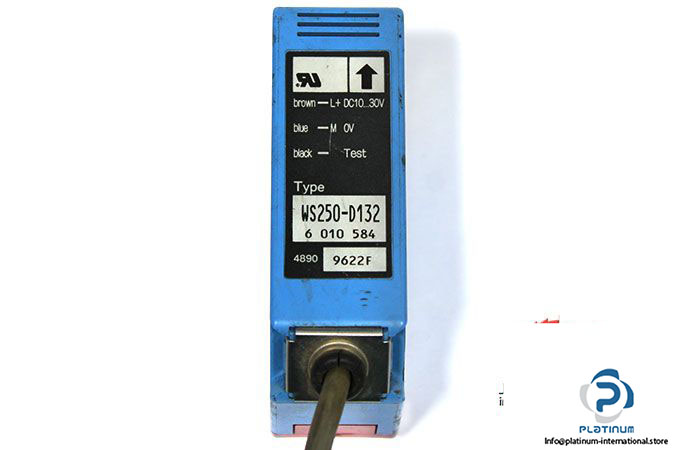

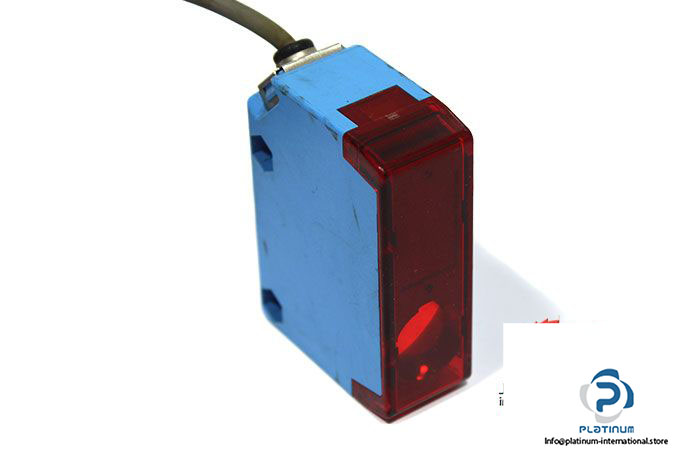

Sick WS250-D132 Sender Through-Beam Photoelectric

Manufacturer: SICK

Type: Sender Through-Beam Photoelectric Sensor

Model: WS250-D132

Part No.: 6010584

Sensing Range Sn: 20 m

Supply Voltage: 10 … 30 V DC

Output Current I_max: 100 mA

Power Consumption: 20 mA

Switching Frequency: 1000 Hz

Housing Design: Rectangular

Connection Type: Cable, 3-Wire, 2 m

Ambient Operating Temperature: -25 … 55 °C

Protection Class: II

Enclosure Rating: IP67

Dimensions (W x H x D): 20 x 65 x 43 mm

Housing Material: Plastic, ABS

Optics Material: Plastic, PC
