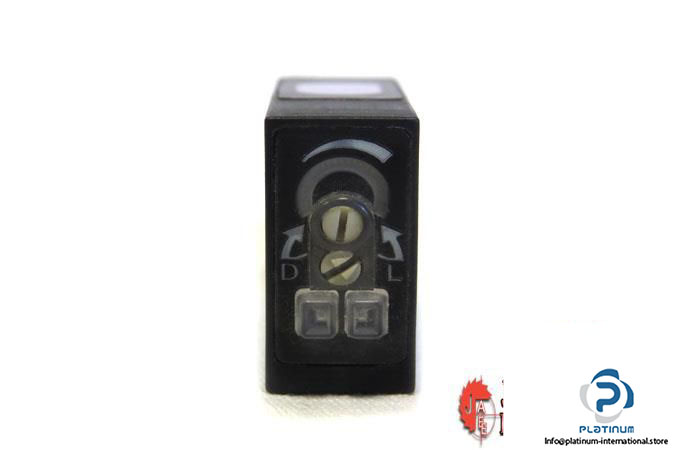

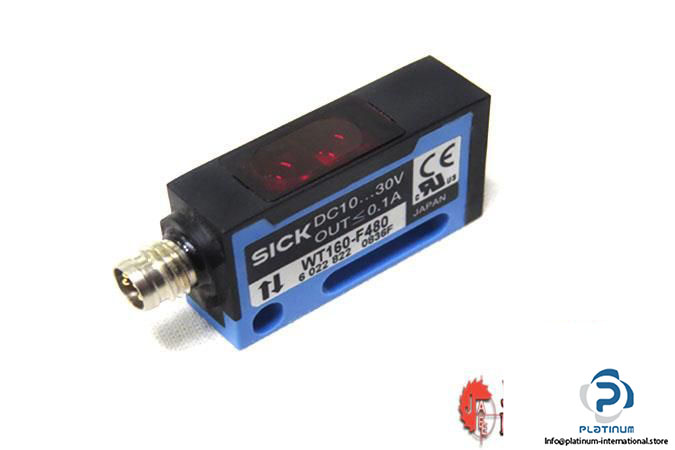

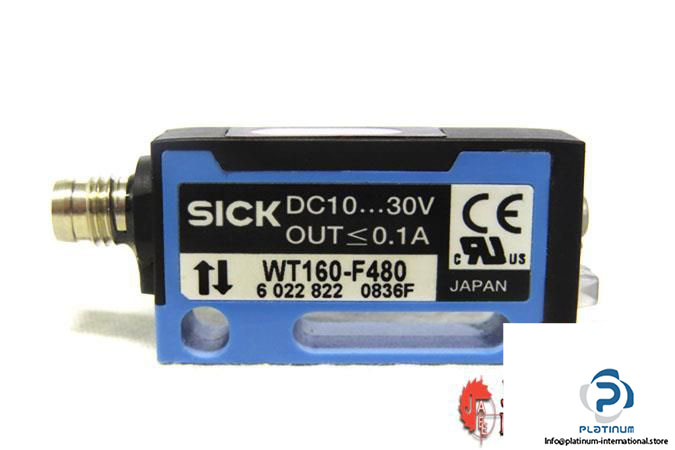

Sick WT160-F480 Photoelectric Proximity Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC PROXIMITY SENSOR, ENERGETIC

Model: WT160-F480

Part No: 6022822

Supply voltage: 10 … 30 V DC

Power consumption (without load): 25 mA

Output current max: ≤ 0.1 A

Ripple: ± 10 %

Switching output: PNP

Switching mode selector: Selectable via light/dark rotary switch

Switching mode: Light/dark switching

Sensing range max.: 0 … 1,000 mm

Sensing range: 0 … 800 mm

Response time (with resistive load): ≤ 0.5 ms

Wave length: 680 nm

Light source, type: LED, visible red light

Dimension (W X H X D): 11 X 38 X 23 mm

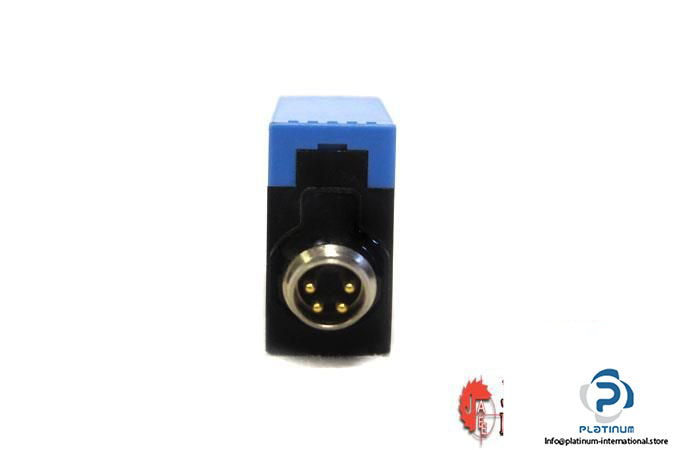

Connection type: Male connector M8, 4-pin

Ambient operating temperature: -25 … +55 °C

Enclosure rating: IP67

Condition: Used
