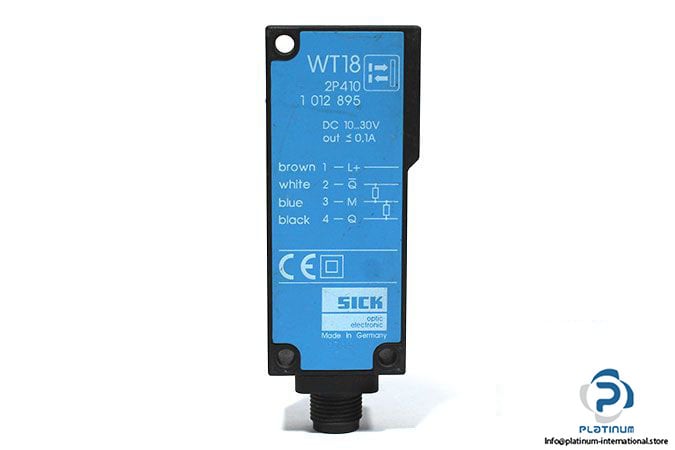

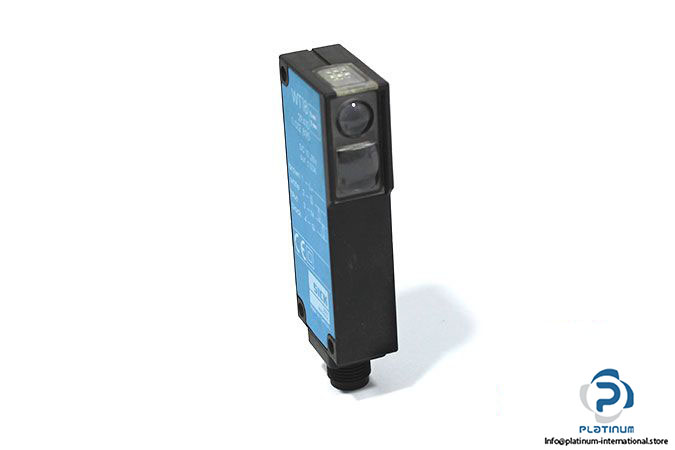

Sick WT18-2P410 Photoelectric Proximity Sensor

Manufacturer: SICK

Type: Photoelectric Proximity Sensor, Background Suppression

Model: WT18-2P410

Part No.: 1012895



Sensing Range Sn: 50 … 700 mm

Supply Voltage: 10 … 30 V DC

Output Current: 100 mA

Power Consumption: 25 mA

Switching Output: PNP

Switching Mode: Light / Dark Switching

Housing Design: Rectangular

Connection Type: Male Connector M12, 4-Pin

Ambient Operating Temperature: -40 … 60 °C

Enclosure Rating: IP65

Dimensions (W x H x D): 17 x 75 x 32.5 mm

Adjustment: Potentiometer

Housing Material: Plastic, ABS

Optics Material: Plastic, PMMA
