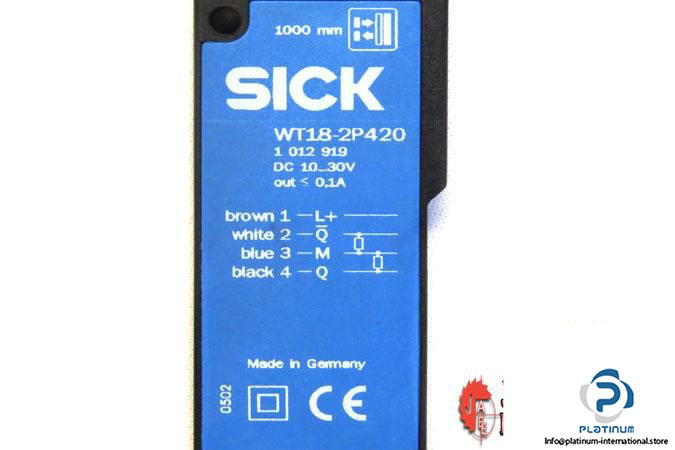

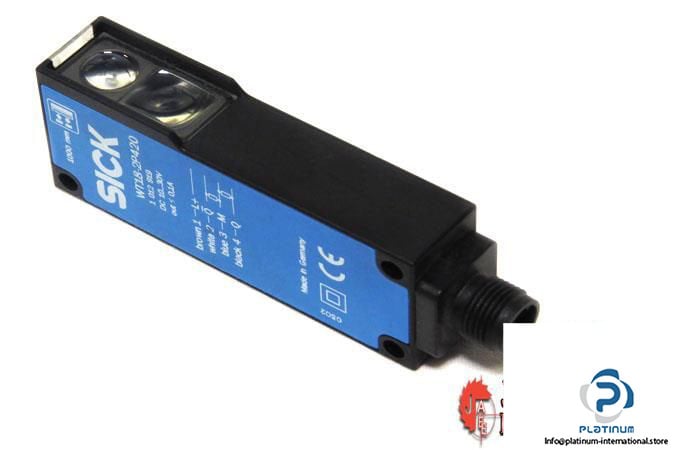

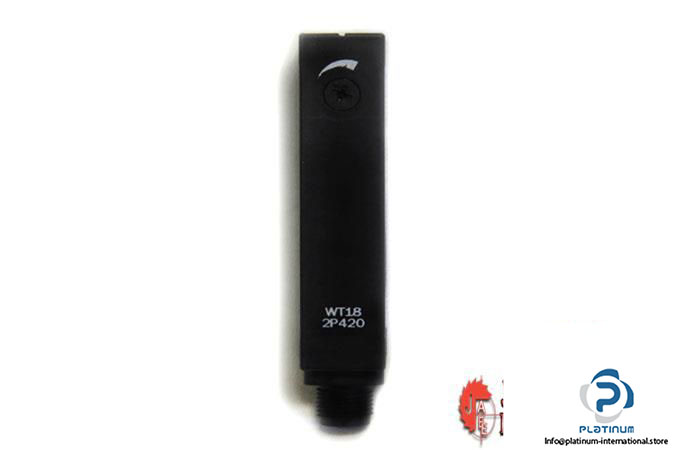

Sick WT18-2P420 Photoelectric Proximity Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC PROXIMITY SENSOR, BACKGROUND SUPPRESSION

Model: WT18-2P420

Part No.: 1012919

Supply voltage: 10 … 30 V DC

Power consumption (without load): ≤ 25 mA

Output current max.: ≤ 0.1 A

Ripple: ≤ 5 V_pp

Switching output: PNP

Switching mode: Light/dark switching

Sensing range max.: 50  … 1,000 mm

Response time (with resistive load): < 700 µs
Adjustment: Potentiometer

Light source, type: LED, infrared light

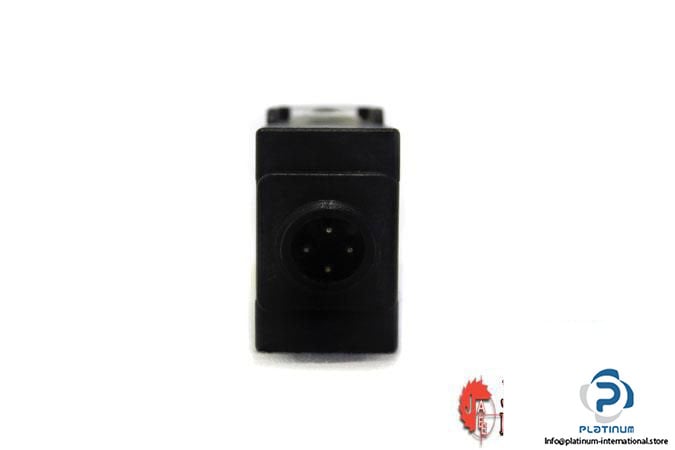

Connection type: Male connector M12, 4-pin

Dimensions (W X H X D): 17 X 75 X 32.5 mm

Ambient operating temperature: -40 … +60 °C

Enclosure rating: IP65

Condition: New
