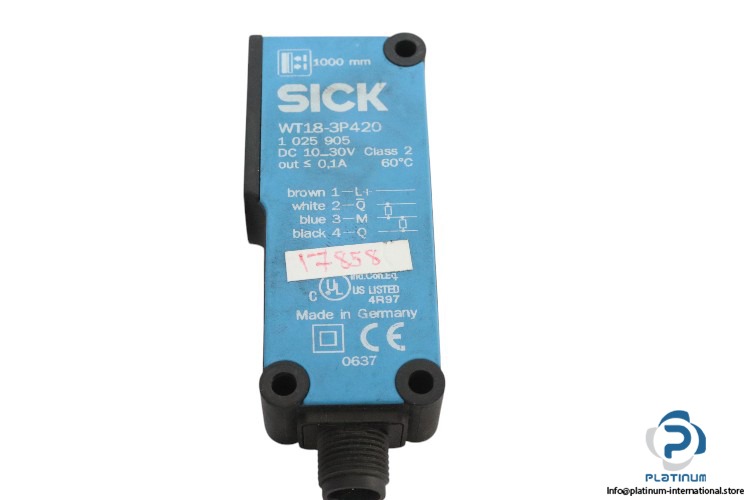

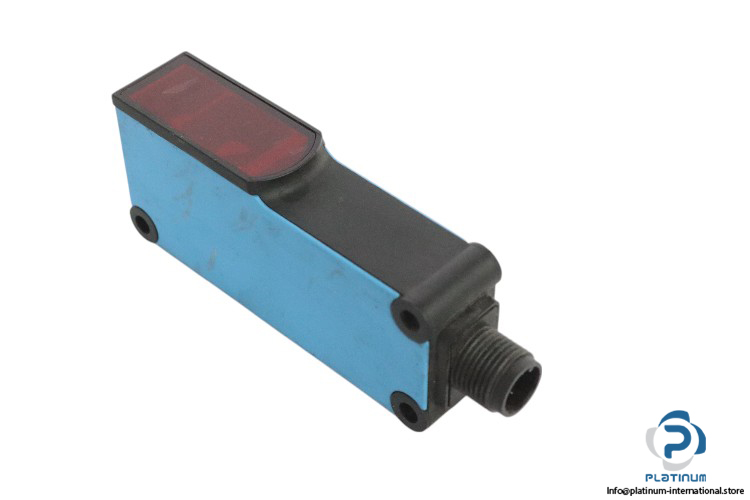

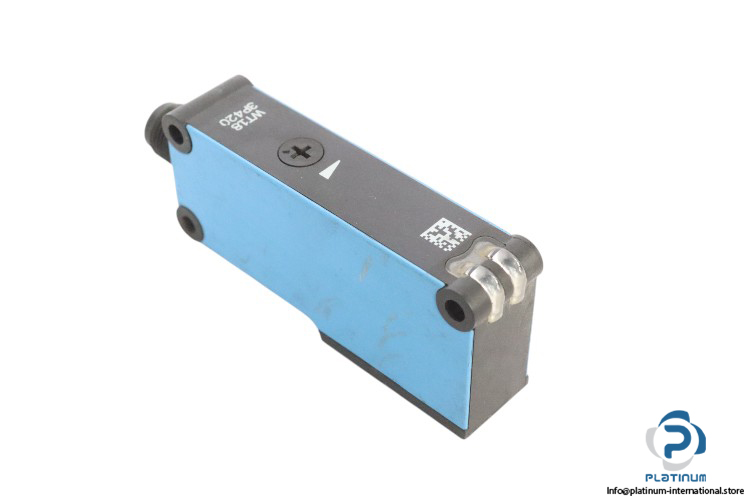

Sick WT18-3P420 Photoelectric Proximity Sensor
Used
In stock2 unitsReady to ship
Sick Photoelectric Proximity Sensor WT183P420 with a sensing range of 50 to 1,000 mm, infrared light, PNP output, and IP67 protection. Designed for reliable performance in industrial environments.
700AdjustableConnectorFrequencyHzIndustrialinfraredIP67LightLight/DarkM12ModeOutputPhotoelectricPNPPotentiometerProtectionProximityRangeresponseSensingSensorSickSwitchingTime
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Sick Photoelectric Proximity Sensor WT183P420
Sick Photoelectric Proximity Sensor WT183P420 is a reliable and high-performance sensor designed for precise detection in various industrial applications. Featuring a wide sensing range, fast response time, and rugged design, it provides accurate results under a variety of conditions.
- Manufacturer: Sick
- Type: Photoelectric Proximity Sensor
- Model: WT183P420
- Part No.: 1 025 905
Technical Data:
- Sensing Range Max.: 10 to 1,000 mm
- Sensing Range: 50 to 1,000 mm
- Supply Voltage: 10 to 30 V DC
- Current Consumption: 55 mA
- Switching Mode: Light/dark switching
- Output Current Imax: 100 mA
- Response Time: Max. 700 µs
- Switching Frequency: 700 Hz
- Connection Type: Male connector M12, 4-pin
- Switching Output: PNP
- Type of Light: Infrared light
- Wave Length: 870 nm
- Adjustment: Potentiometer, 4 turns
- Housing Design (Light Emission): Rectangular
- Housing Material: Plastic, ABS
- Optics Material: Plastic, PMMA
- Enclosure Rating: IP67
- Ambient Operating Temperature: -40 to +60 °C
- Dimensions: 17.6 x 75.5 x 33.5 mm
