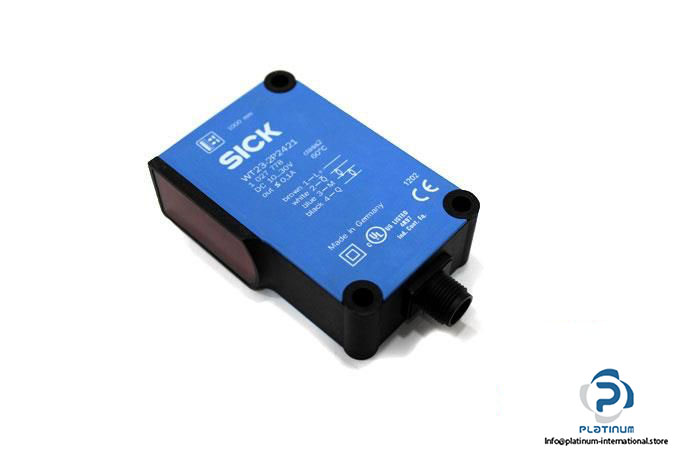

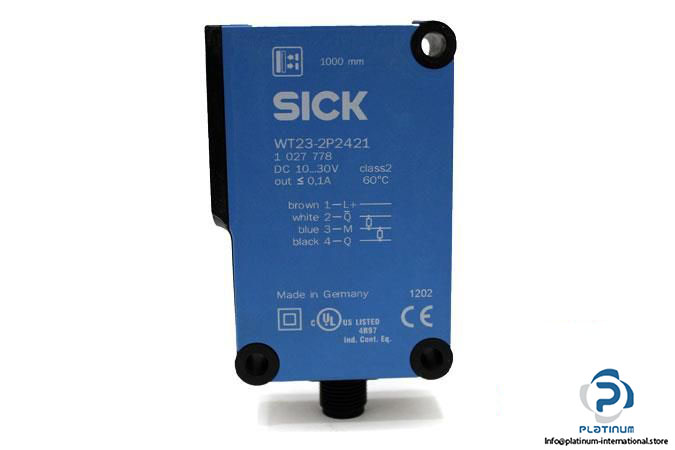

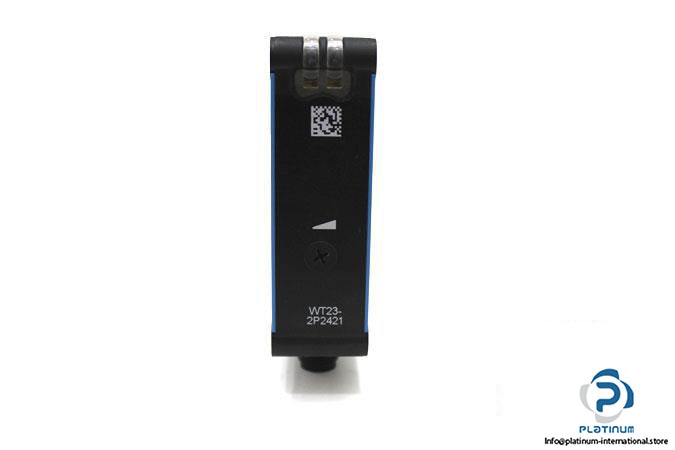

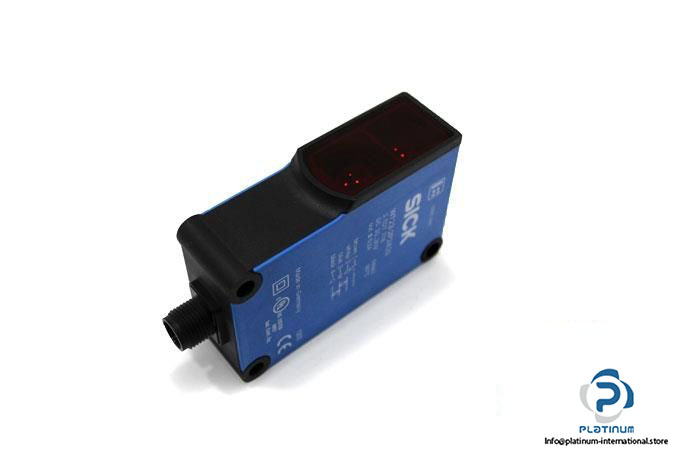

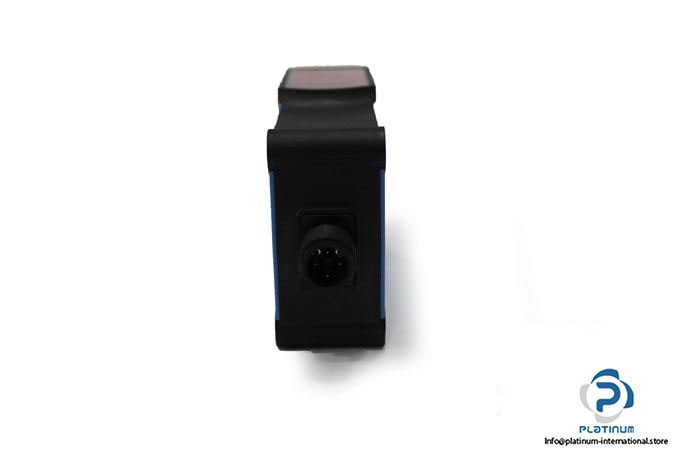

Sick WT23-2P2421 Photoelectric Proximity Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC PROXIMITY SENSOR, BACKGROUND SUPPRESSION

Model: WT23-2P2421

Part No.: 1027778

Sensing Range max.: 50 … 1000 mm

Sensing range: 100 … 1000 mm

Response time: ≤ 2.5 ms

Operating Voltage: 10 … 30 V DC

Ripple: ≤ 5 V_pp

Switching frequency: 200 Hz

Continuous current: 100 mA DC

Switching output: PNP

Output function: Complementary

Switching mode: Light/dark switching

Source, type of light: LED, infrared red light

Light spot size (distance): 50, 800 mm

Wave length: 880 nm

Adjustment: Potentiometer

Connector type: M12 Connector, 4-pin

Enclosure rating: IP67

Ambient Operating temperature: -25 … 50°C

Dimensions: 24.6 x 80.6 x 54 mm

Weight: 100 g

Housing: Rectangular

Housing material: Plastic

Optics material: PMMA

Weight: 75 g
