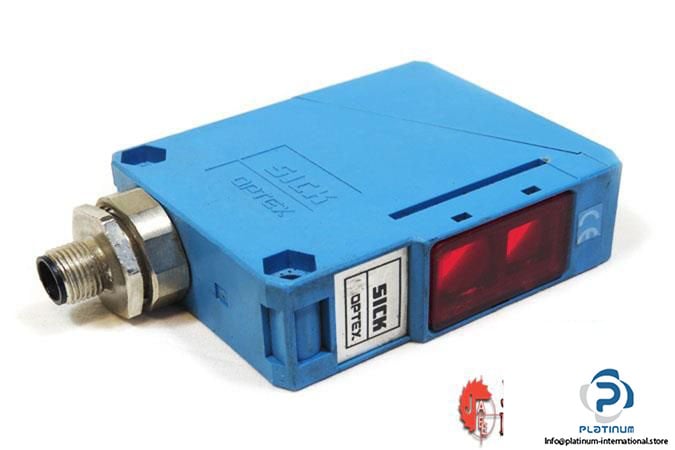

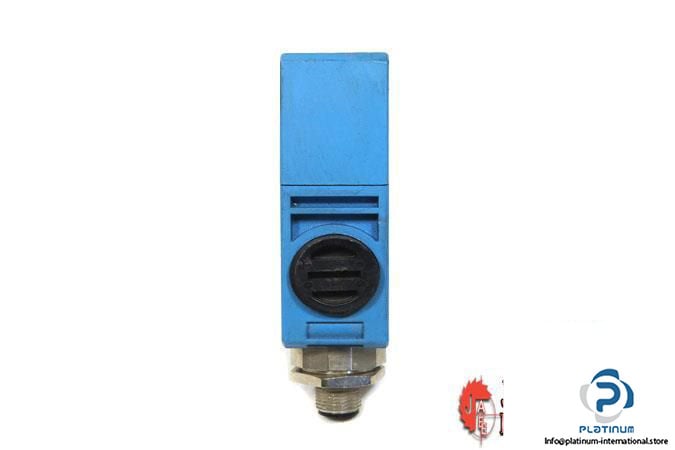

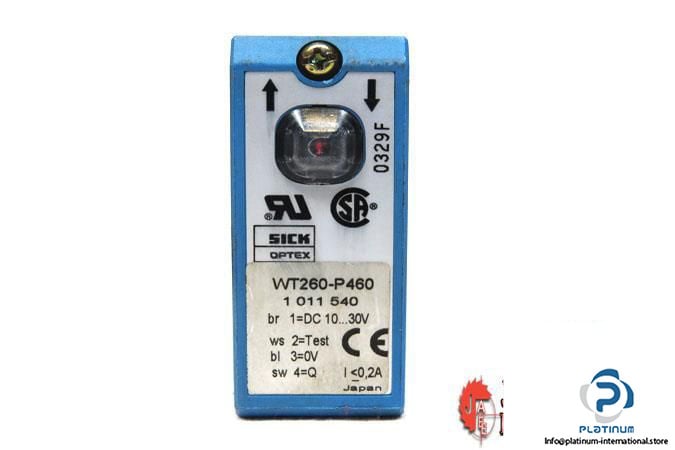

Sick WT260-P460 Photoelectric Proximity Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC PROXIMITY SENSOR, BACKGROUND SUPPRESSION

Model: WT260-P460

Part no.: 1011540

Supply voltage: 10 … 30 V DC

Power consumption: 35 mA

Output current max.: 100 mA

Switching output: PNP

Switching mode: Light/dark switching

Ripple: ≤ 5 V

Response time: ≤ 2 ms

Switching frequency: 250 Hz

Sensing range max.: 0 … 380 mm

Sensing range min.: 75 … 160 mm

Light source, type: LED, infrared light

Light spot size: 300 mm

Angle of dispersion: Approx. 1.5°

Adjustment: Potentiometer, 270°

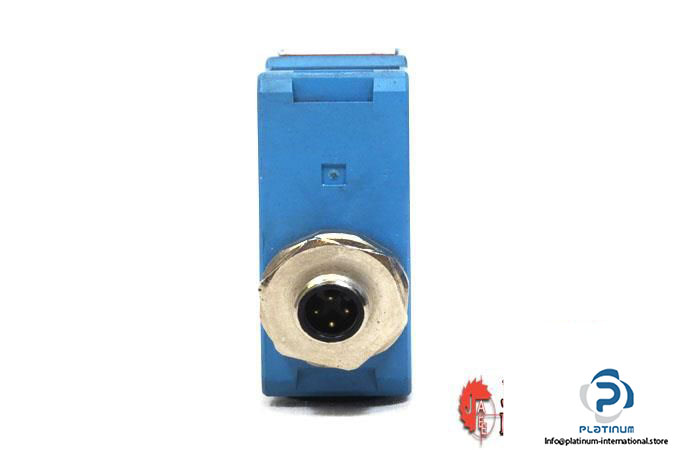

Connection type: Male connector M12, 4-pin

Enclosure rating: IP66

Ambient operating temperature: -25 … +55 °C

Dimensions (W X H X D): 25 X 77.8 X 63 mm

Weight: 120 g

Condition: Used
