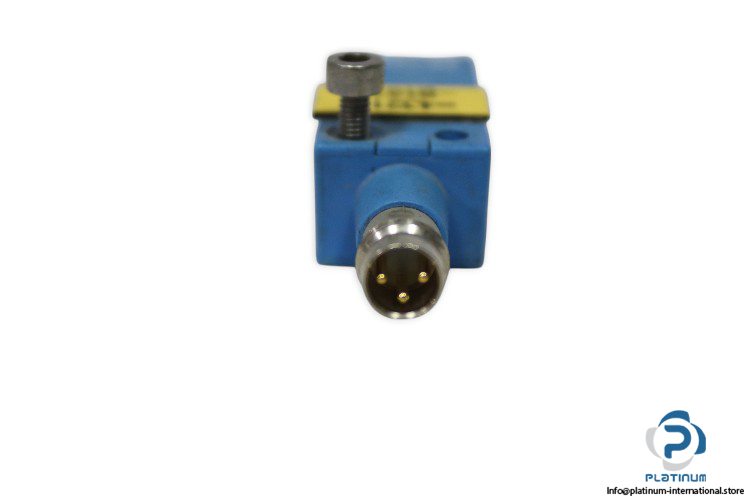

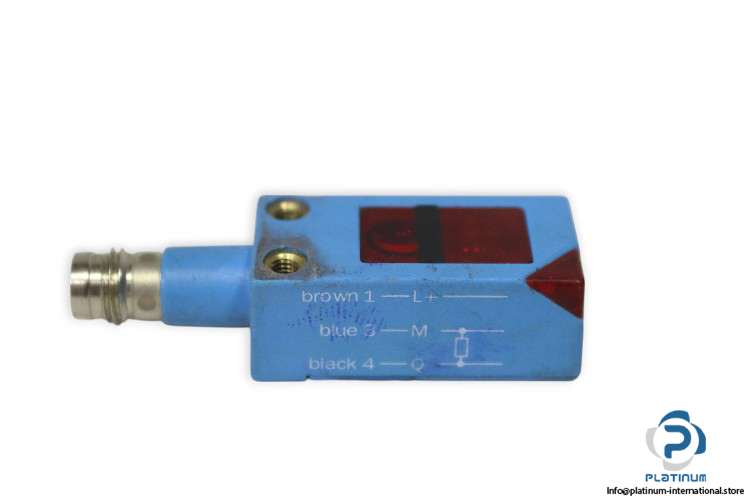

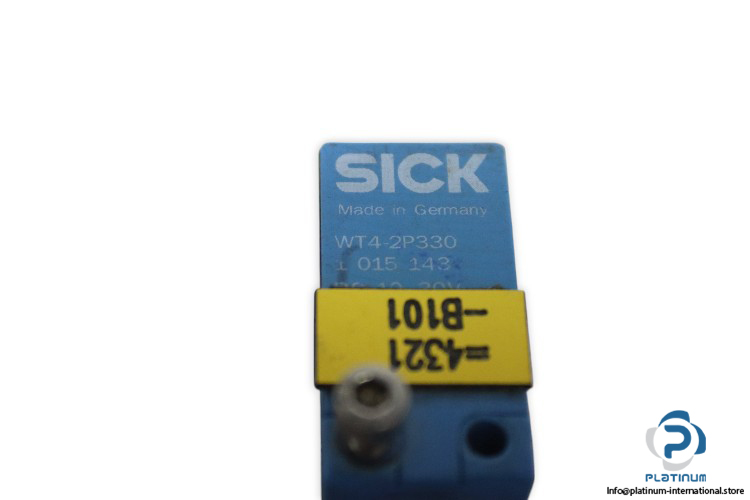

Sick WT4-2P330 Photoelectric Proximity Sensor
with PNP output, LED light source, and compact IP67-rated ABS housing. Ideal for precise object detection in industrial settings.
Manufacturer: SICK
Type: Photoelectric Proximity Sensor
Model: WT4-2P330
Part No.: 1 015 143
The SICK WT4-2P330 is a compact and reliable photoelectric proximity sensor designed for accurate object detection in industrial environments. With a robust IP67-rated ABS plastic housing and PMMA optics, it is well-suited for harsh conditions. The sensor features light switching mode and PNP switching output, making it ideal for integration into automated systems. Equipped with a single teach-in button and cable adjustment, it ensures fast setup and consistent performance. The LED light source provides reliable sensing, even in varying lighting conditions.
- Supply Voltage: 10 … 30 V DC
- Current Consumption: 20 mA
- Switching Output: PNP
- Switching Mode: Light Switching
- Housing Material: Plastic, ABS
- Optics Material: Plastic, PMMA
- Enclosure Rating: IP67
- Housing Design (Light Emission): Rectangular
- Light Source: LED
- Adjustment: Cable, Single Teach-In Button
- Ambient Operating Temperature: -40 °C … +60 °C
- Dimensions (W x H x D): 16 mm x 32 mm x 12 mm
