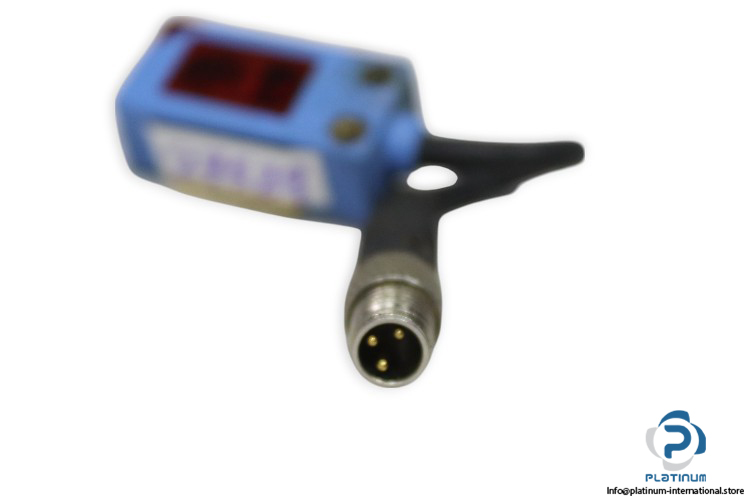

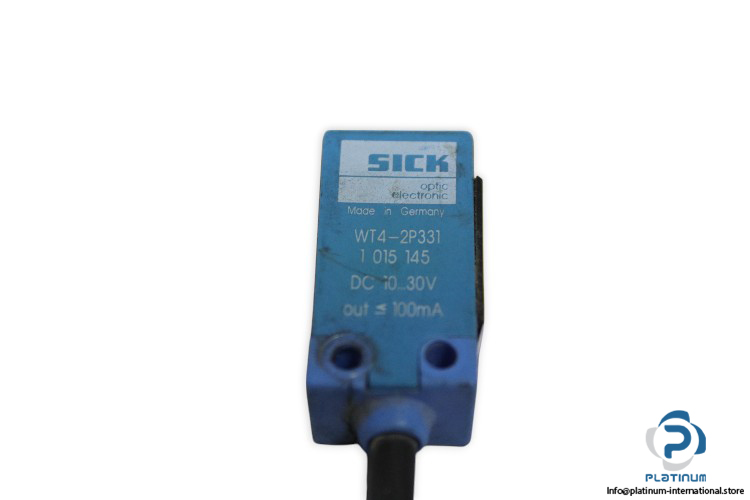

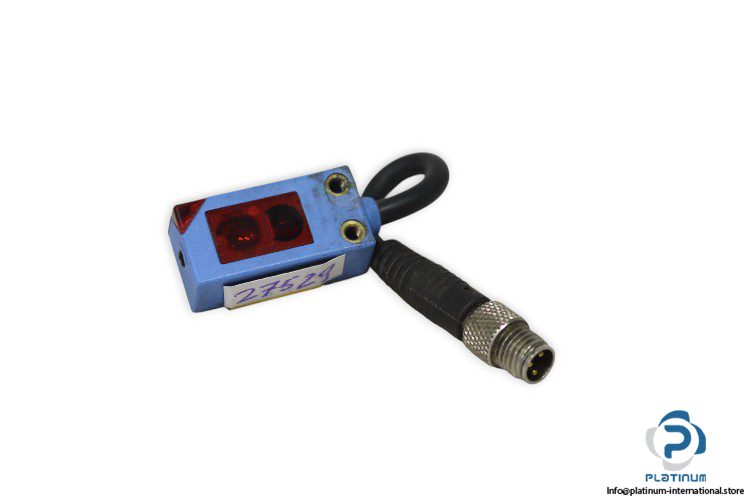

Sick WT4-2P331 Photoelectric Proximity Sensor
with LED light source and IP67 enclosure. PNP output, compact size, and reliable detection in industrial settings.
Manufacturer: SICK
Type: Photoelectric Proximity Sensor
Model: WT4-2P331
Part No.: 1015145
Supply Voltage: 10 … 30 V DC
Current Consumption: 20 mA
Switching Output: PNP
Switching Mode: Light Switching
Connection Type: Cable with Connector M8, 3-pin, 100 mm
Housing Material: Plastic, ABS
Optics Material: Plastic, PMMA
Housing Design (Light Emission): Rectangular
Light Source: LED
Adjustment: Cable, Single Teach-In Button
Enclosure Rating: IP67
Ambient Operating Temperature: -40 … 60 °C
Dimensions (W x H x D): 16 mm x 32 mm x 12 mm
The SICK WT4-2P331 is a compact and robust photoelectric proximity sensor ideal for precision object detection in harsh industrial environments. With a durable ABS housing, LED light source, and IP67 protection, it provides reliable operation even in dusty or wet conditions. Easy to install and configure via a teach-in button or cable adjustment, this sensor is well-suited for automation systems requiring fast and consistent detection with minimal power consumption.
