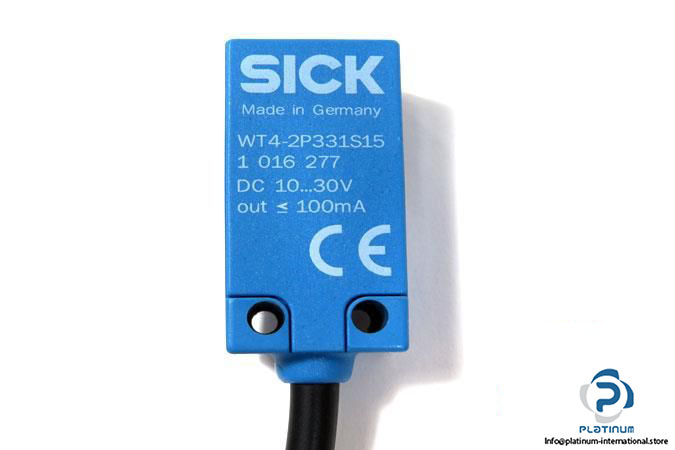

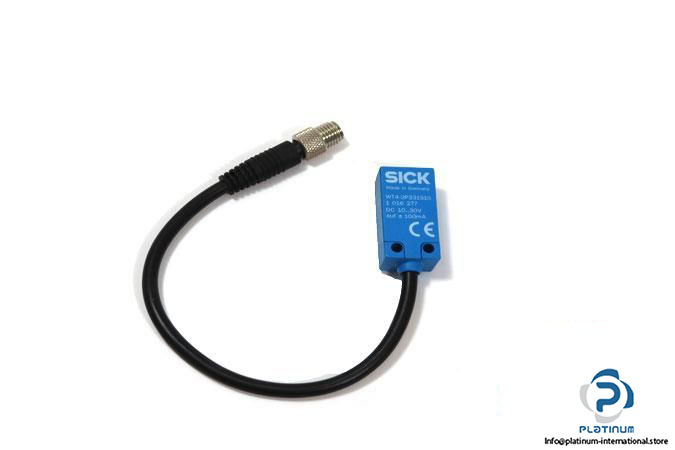

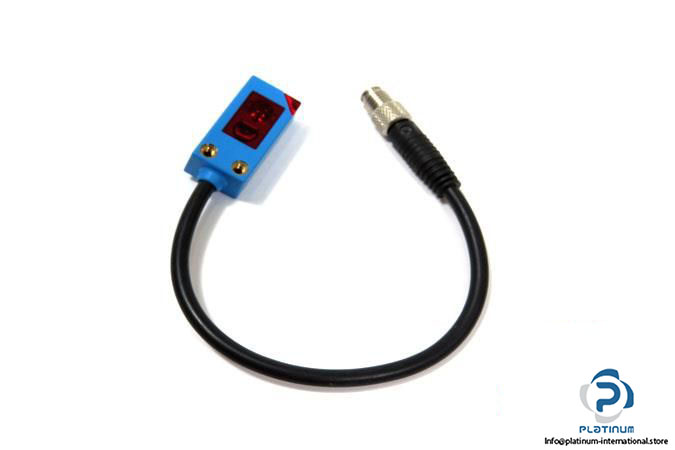

Sick WT4-2P331S15 Photoelectric Proximity Switch

Manufacturer: SICK

Type: PHOTOELECTRIC PROXIMITY SWITCH

Model: WT4-2P331S15

Part No.: 1016277

Sensing Range: 20 … 120 mm

Response time max.: 500 μs

Operating Voltage: 10 … 30 V DC

Switching frequency: 1000 /s

Rated operating current: 100 mA DC

Switching output: PNP

Light spot diameter/distance: 3 mm / 50 mm

Adjustment: Potentiometer

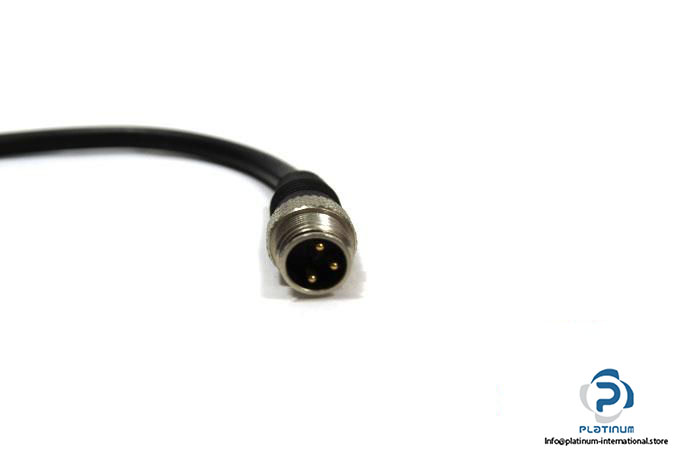

Connector type: M8 Connector, 3-pin

Protection class: III

Enclosure rating: IP67

Ambient Operating temperature: -40 … 60°C

Dimensions (W X H X D): 32 x 12 x 16 mm

Housing: Rectangular

Housing material: Plastic

Optics material: PMMA

Condition: New
