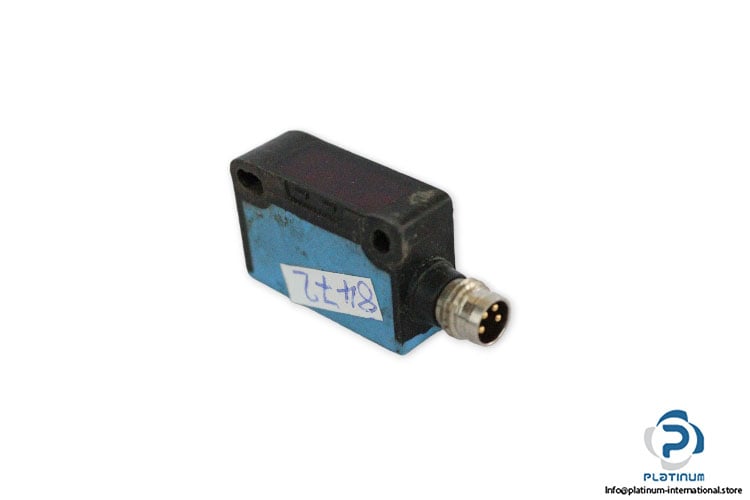

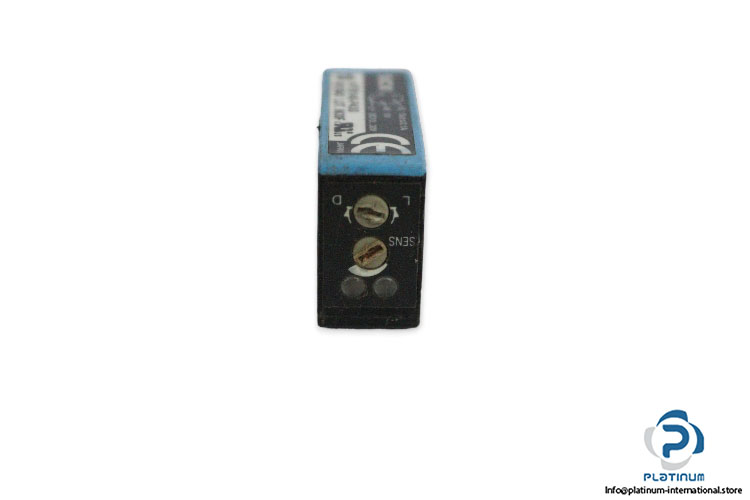

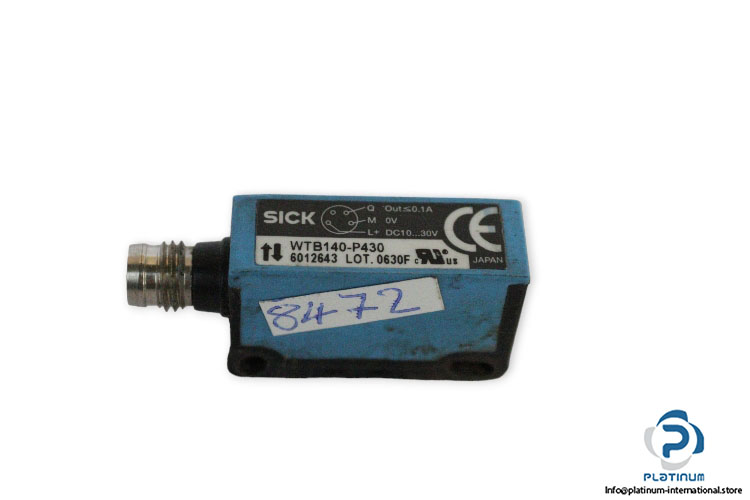

Sick WTB140-P430 Photoelectric Proximity Sensor
Manufacturer: SICK
Type: Photoelectric proximity sensor
Model: WTB 140-P430
Part No.: 6012643
Housing design (light emission): Rectangular
Sensing range max.: 2 mm … 500 mm
Sensing range: 15 mm … 500 mm
Type of light: Visible red light
Light source: LED
Supply voltage: 10 V DC … 30 V DC
Current consumption: 30 mA
Switching output: PNP
Switching mode: Light/dark switching
Switching mode selector: Selectable via light/dark rotary switch Response time: 0.5 ms
Connection type: Male connector M8, 4-pin
Housing material: Plastic
Enclosure rating: IP67
Dimensions (W x H x D): 11 mm x 31 mm x 20 mm
