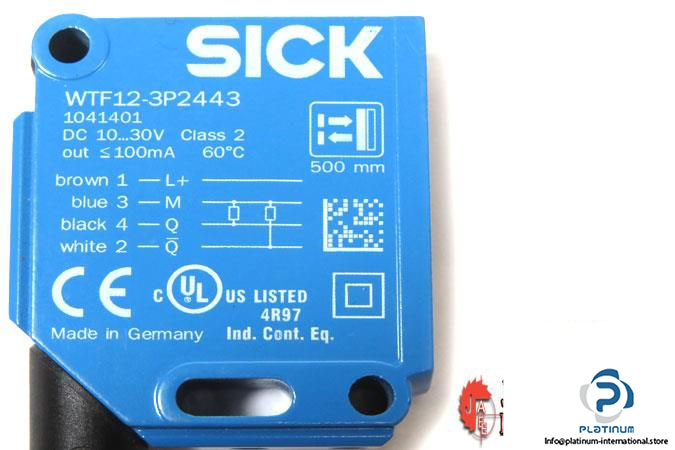

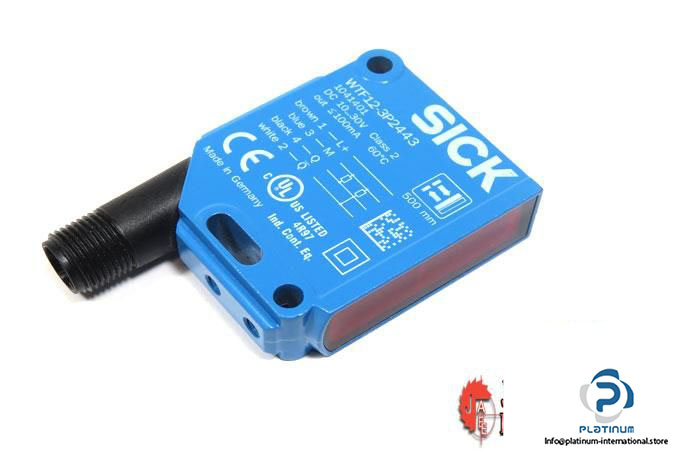

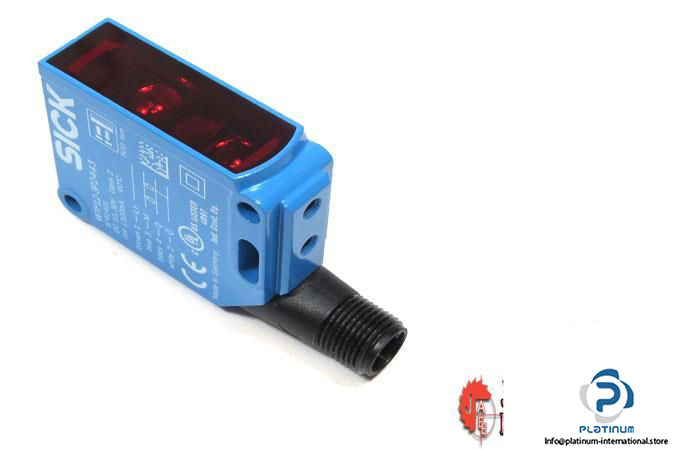

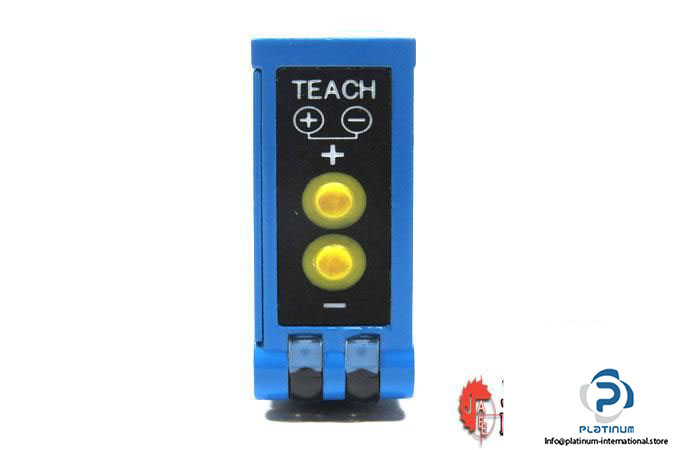

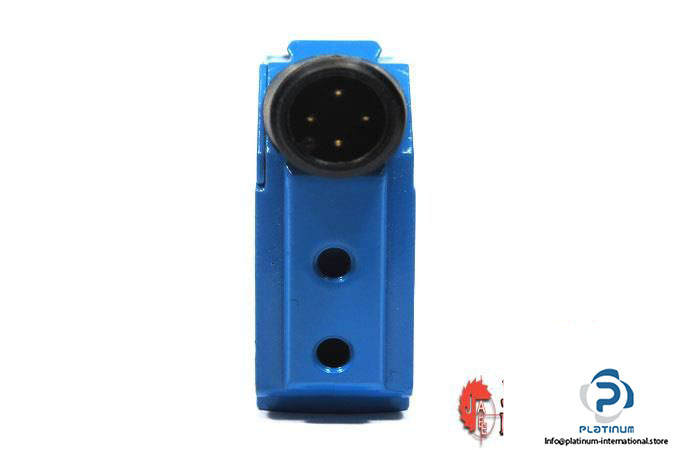

Sick WTF12-3P2443 Foreground Suppression Sensor
Manufacturer: SICK
Type: Foreground Suppression Sensor
Model: WTF123P2443
Part No.: 1041401
Sensing Range: 30 … 500 mm
Light Type: Visible Red Light
Wave Length: 640 nm
Light Source: LED
Light Spot Size: 7 mm
Operating Voltage: 10 … 30 V DC
Current Consumption: 45 mA
Switching Mode: Light/Dark Switching
Switching Output: PNP
Output Current Imax.: 100 mA
Connection Type: Male Connector M12, 4-Pin
Housing Material: Metal
Protection Class: IP66/67
Operating Temperature: -40 … 60 °C
Dimensions: 48.5 x 15.6 x 42 mm
