Sicod YMF3-800-824-B-B-CV-R-01 Incremental Encoder
Used
In stock1 unitReady to ship
The SICOD Incremental Encoder (Model: YMF3800824BBCVR01) offers 800 ppr resolution, a solid shaft with a 9.52 mm diameter, IP65 protection, and operates with a power supply of 8 / 24 V, supporting up to 6000 rpm rotation speed.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

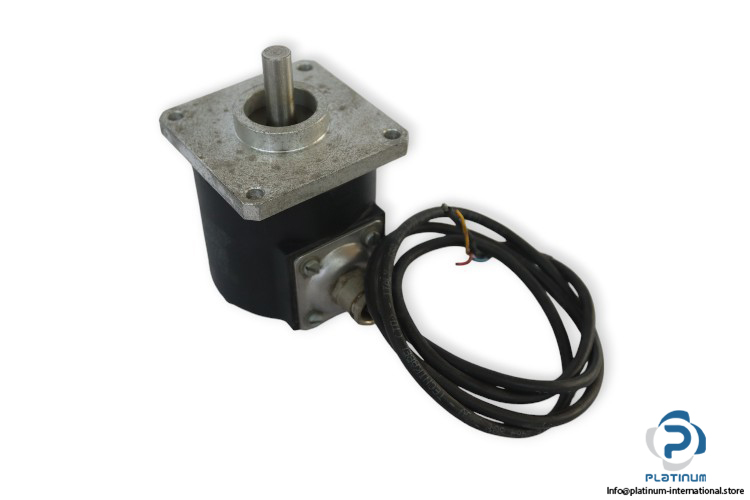

SICOD Incremental Encoder (Model: YMF3800824BBCVR01)
The SICOD Incremental Encoder (Model: YMF3800824BBCVR01) is designed for high-precision measurement in industrial applications. It operates with a power supply range of 8 / 24 V and offers a resolution of 800 ppr. This encoder features a solid shaft type with a shaft diameter of 9.52 mm and is enclosed in an IP65-rated housing for protection in harsh environments. It supports a maximum rotational speed of 6000 rpm and comes with a cable output (5 wires).
- Manufacturer: SICOD
- Type: Incremental Encoder
- Model: YMF3800824BBCVR01

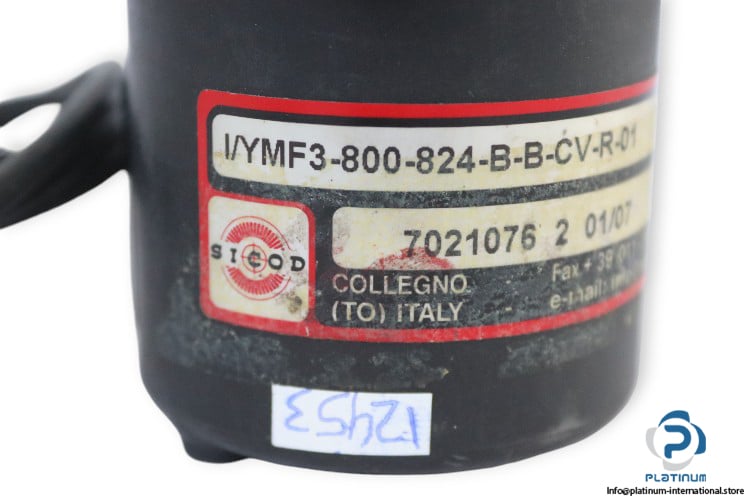

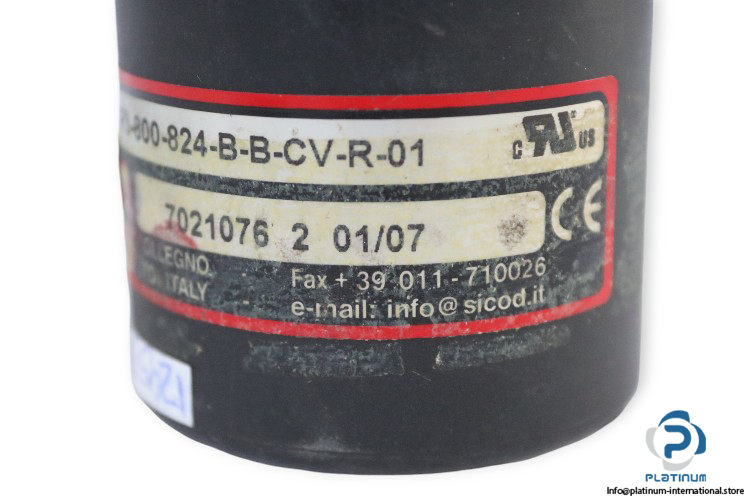

- Part No.: 7021076 2 01/07
- Power Supply: 8 / 24 V
- Principle of Operation: Incremental
- Shaft Type: Solid Shaft
- Resolution: 800 ppr
- Shaft Diameter: 9.52 mm
- Enclosure Rating: IP65
- Max Rotation Speed: 6000 rpm

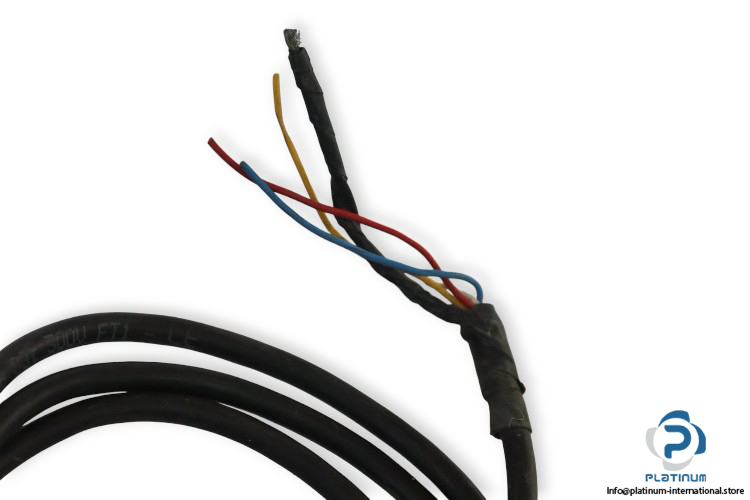

- Output Type: Cable (5 wires)
