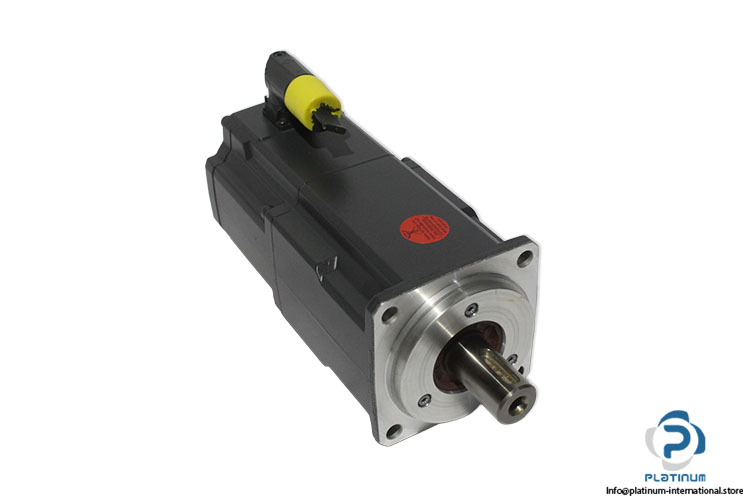

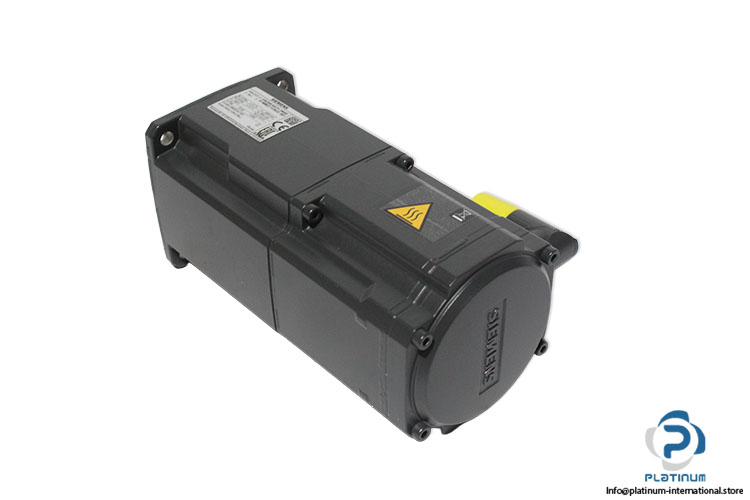

Siemens 1FK2104-5AF11-1MA0 Servo Motor
New
In stock1 unitReady to ship
Servo Motor Siemens SIMOTICS 1P servo motor engineered for precise motion control, smooth operation, and reliable industrial automation performance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

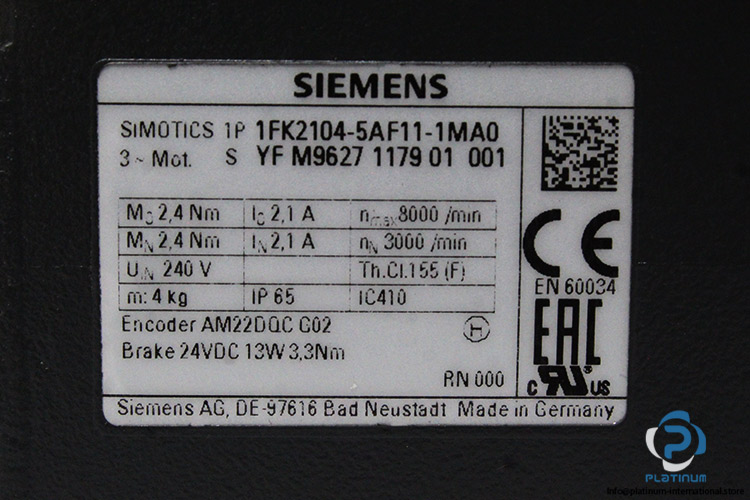

| MNR | 1FK2104-5AF11-1MA0 |
| S YF | M9627 1179 01 001 |
| Family | SIMOTICS 1P |
| Rated voltage | 240 v |
| Static torque | 2.40 Nm |
| Static current | 2.1 A |
| Maximum torque | 7.50 Nm |
| Maximum current | 7.6 A |
| Maximum speed | 8000 rpm |
| Rotor moment of inertia | 0.6500 kgcm² |
| Rated speed | 3,000 rpm |
| Rated torque | 2.40 Nm |
| Rated current | 2.1 A |
| Rated power | 0.75 kW |
| Encoder system | Encoder AM22DQC: Absolute encoder |
| 22 bit + 12 bit multiturn, Encoder system | Absolute encoder 20 bit + 12 bit multiturn |
| Connection type | OCC for S210 Connector size OCC M17 |
| Design acc. to Code I | IM B5 (IM V1, IM V3) |
| Vibration severity grade | Grade A |
| Shaft height | 40 |
| Flange size (AB) | 80 mm |
| Centering ring (N) | 70 mm |
| Hole circle (M) | 90 mm |
| Screw-on hole (S) | 6.5 mm |
| Overall length (LB) | 170 mm |
| Diameter of shaft (D) | 19 mm |
| Length of shaft (E) | 40 mm |
| Length of flange diagonal (P) | 105 mm |
| Shaft end | Fitted key |
| Color of the housing | Standard (Anthracite, similar to RAL |
| Holding torque | 3.30 Nm |
| Average dynamic torque | 3.30 Nm |
| Opening time | 50 ms |
| Closing time | 40 ms |
| Maximum single switching energy 1) | 270 J |
| Service life, operating energy | 120,000 J |
| Holding current2) | 0.2 A |
| Break-induced current for 500 ms2) | 1.2 A |
| Rated voltage, Brake | 24 V DC 10 % , Rated current 1.50 A,13 w |
| Connection | Circular connector |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100399 |
| Weight | 4,55 |
