Siemens 1FK7032-2AK71-1CG1 Servomotor
New
In stock1 unitReady to ship
1 999,99$

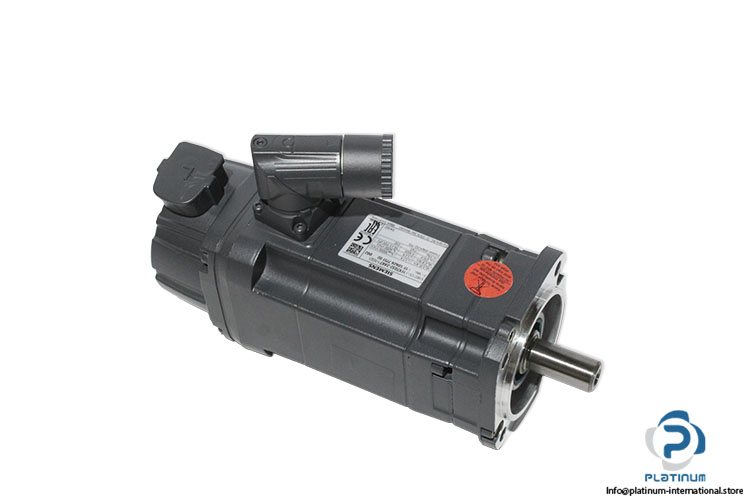

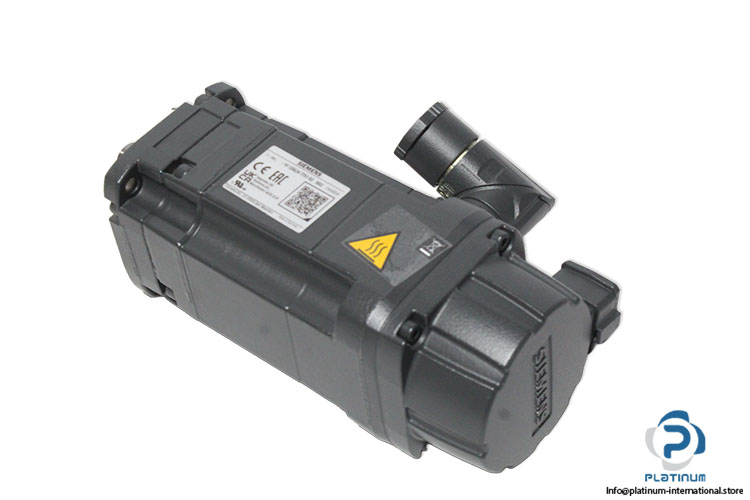

Synchronous Servo Motor The SIEMENS 1FK7032-2AK71-1CG1 is a high-efficiency permanent-magnet synchronous servo motor from the SIMOTICS 1FK7 series, delivering precise motion control, 6000 rpm speed, and reliable performance for industrial automation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Drive Family | SIMOTICS |
| Series | 1FK7 |

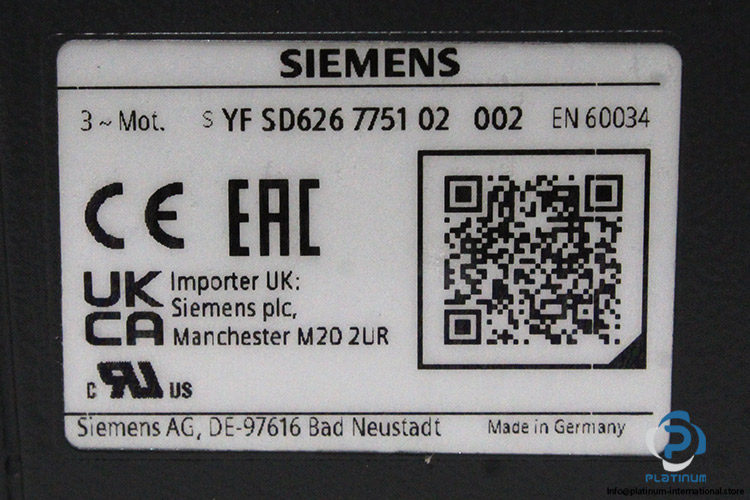

| YF.NO. | SD626 7751 02 002 |
| Code | A1010033 4521357637/000005/ 4500305284 |
| Encoder model | AM20DQI P55 |
| Rated Voltage | 270 v |
| Standard | EN 60034 |
| Rated speed (100 K) | 6,000 rpm |
| Number of poles | 6 |
| Rated torque (100 K) | 0.8 Nm |
| Rated current | 1.3 A |
| Static torque (60 K) | 0.95 Nm |
| Static torque (100 K) | 1.15 Nm |
| Stall current (60 K) | 1.40 A |
| Stall current (100 K) | 1.70 A |
| Moment of inertia | 0.650 kgcm² |
| Efficiency | 88.0 % |
| Torque constant | 0.67 Nm/A |
| Voltage constant at 20º C | 45.0 V/1000*min¯¹ |
| Shaft torsional stiffness | 6,000 Nm/rad |
| Motor type | Permanent-magnet synchronous motor |
| Shaft height | 36 |
| Cooling | Natural cooling |
| Radial runout tolerance | 0.035 mm |
| Concentricity tolerance | 0.08 mm |
| Axial runout tolerance | 0.08 mm |
| Vibration severity grade | Grade A |
| Degree of protection | IP65 |
| Design acc. to Code I | IM B5 (IM V1, IM V3) |
| Temperature monitoring | Pt1000 temperature sensor |

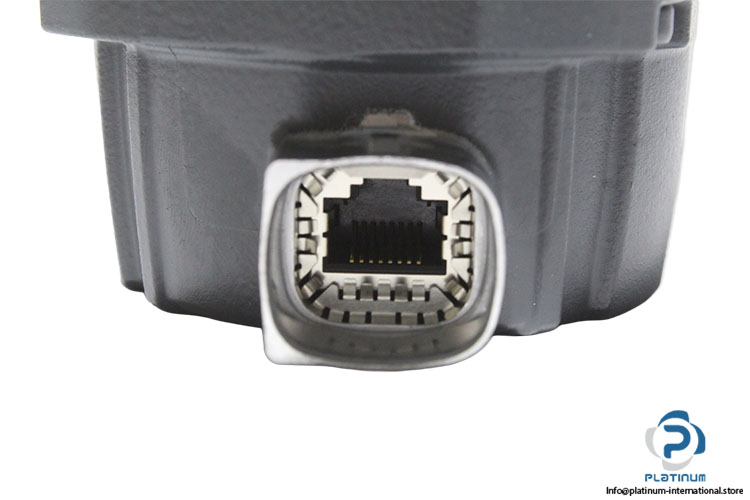

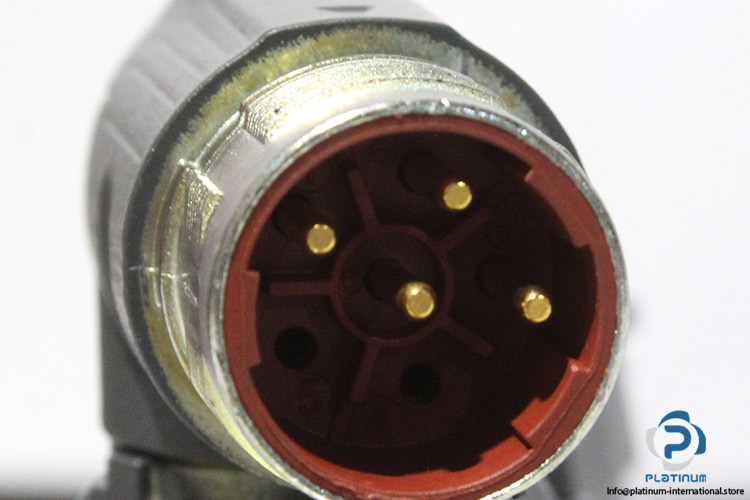

| Electrical connectors | circular connector power and RJ45 connector Encoder |
| Holding brake | without holding brake |
| Shaft end | Plain shaft |
| Encoder system | Encoder AM24DQI: absolute encoder 24 bits (resolution 16777216, encoder-internal 2048 S/R) + 12 bits multi-turn (traversing range 4096 revolutions) |
| Optimum speed 6,000 rpm Optimum power 0.5 kW Limiting data Max. permissible speed (mech.) 10,000 rpm Max. permissible speed (inverter) | 10,000 rpm |
| Maximum torque | 4.5 Nm |
| Maximum current | 7.0 A |
| Recommended Motor Module Rated inverter current | 3 A |
| Maximum inverter current | 9 A |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1096848 |
| Weight | 4,2 |
