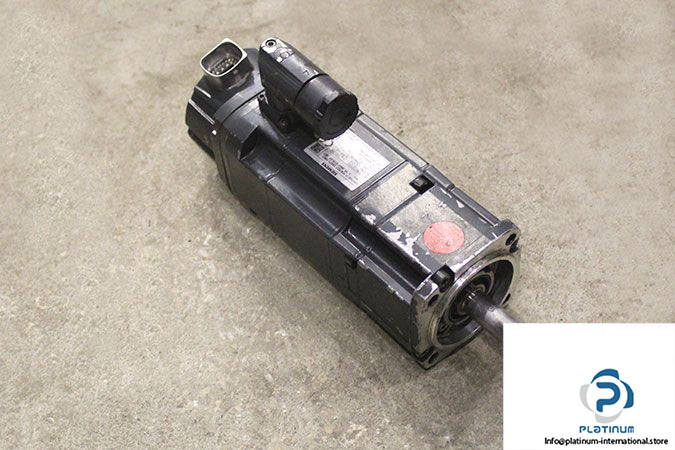

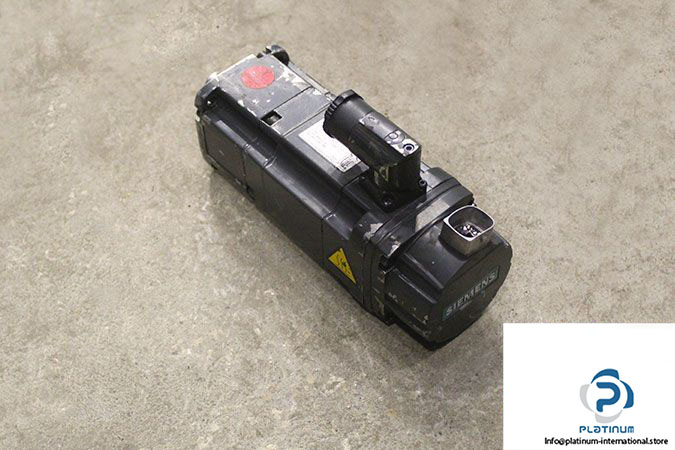

Siemens 1FK7032-2AK71-1RH1 Synchronous Servomotor
Used
In stock1 unitReady to ship
SYNCHRONOUS SERVO MOTOR
Siemens 1FK7032-2AK71-1RH1 SIMOTICS servo motor delivers 0.8 Nm rated torque at 6000 rpm, with a compact IP65-protected frame and integrated brake system. Engineered for high-efficiency motion control applications.AutomationBrakeCompactControlDriveforHighIndustrialIP65MotionmotorServoSiemensSimoticsSpeedSynchronousWith
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SIEMENS 1FK7032-2AK71-1RH1 SYNCHRONOUS SERVO MOTOR
Part of the high-efficiency SIMOTICS range, the Siemens 1FK7032-2AK71-1RH1 synchronous servo motor delivers powerful torque and high-speed operation for precision industrial automation. With compact frame size and integrated brake system, this motor is ideal for demanding motion control systems requiring performance and durability.
Manufacturer: Siemens
Type: Synchronous Servo Motors
Model: 1FK7032-2AK71-1RH1
Range: SIMOTICS
Series: 7
Frame Size: 03
Length: 2

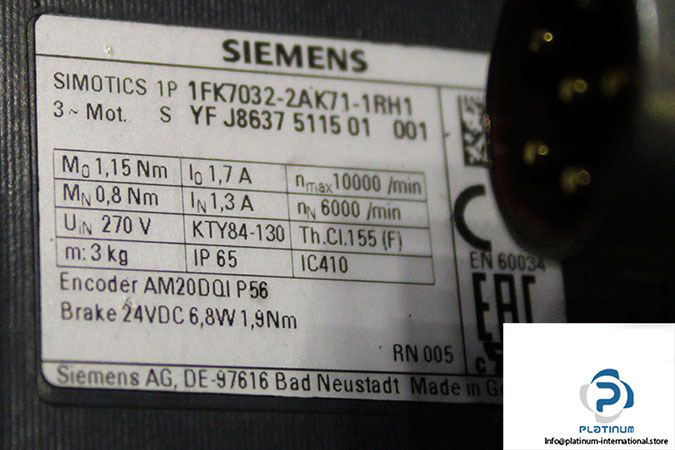

Reference No.: J8637 5115 01 001
| Rated Voltage | 270 V |
| Static Torque | 1.15 Nm |
| Rated Torque | 0.8 Nm |
| Rated Current | 1.3 A |
| Stall Current | 1.7 A |
| Rated Speed | 6000 rpm |
| Maximum Speed | 10000 rpm |
| Efficiency | 88.0% |
| Brake Voltage | 24 VDC |
| Brake Power | 6.8 W |
| Brake Torque | 1.9 Nm |
| Encoder | Am20DQIP56 |
| Protection Class | IP65 |
| Insulation Class | F |
