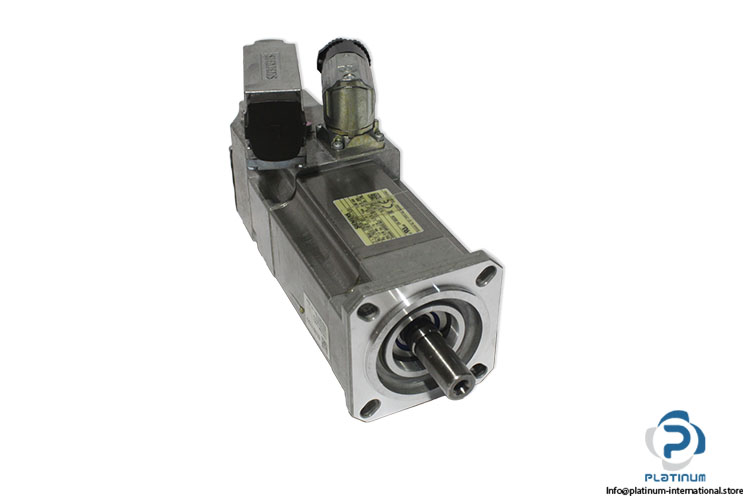

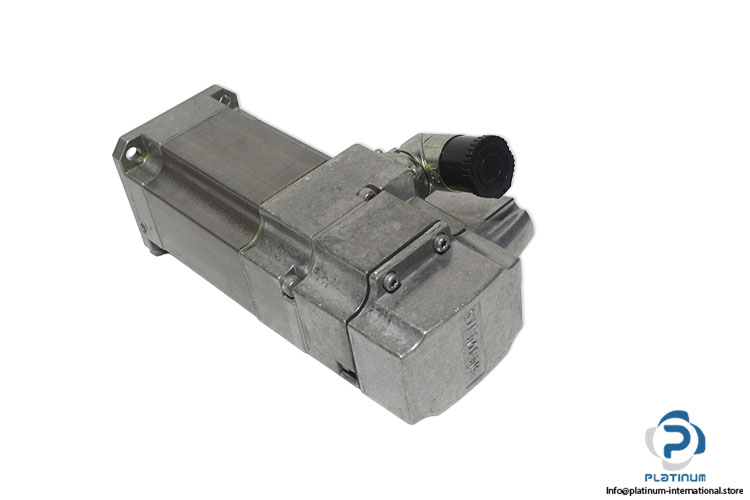

Siemens 1FK7034-5AK71-1LG0 Servo Motor
New
In stock1 unitReady to ship
Servo Motor Siemens engineered for precise motion control, smooth operation, and reliable industrial automation performance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

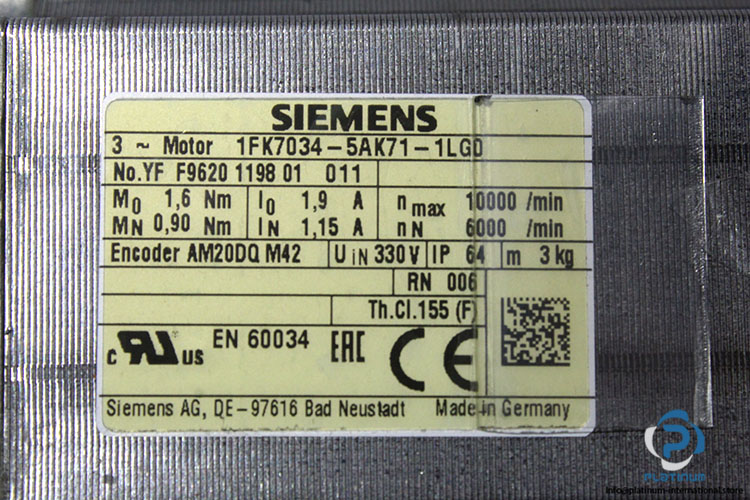

| No.YF | F9620 1198 01 011 |

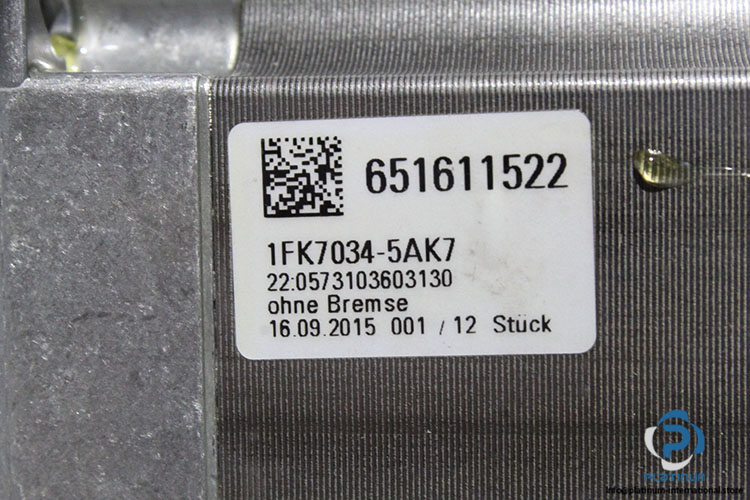

| Ref no | 651611522/22:0573103603130 |
| Rated speed (100 K) | 6,000 rpm |
| Number of poles | 6 |
| Rated torque (100 K) | 0.8 Nm |
| Rated current | 1.15 A |
| Static torque (60 K) | 0.85 Nm |
| Static torque (100 K) | 1.10 Nm |
| Stall current (60 K) | 1.40 A |
| Stall current (100 K) | 1.70 A |
| Moment of inertia | 0.610 kgcm² |
| Efficiency | 88.0 % |
| Torque constant | 0.67 Nm/A |
| Voltage constant at 20º C | 45 V/1000*min¯¹ |
| Winding resistance at 20º C | 5.20 ? |
| Rotating field inductance | 18.5 mH |
| Electrical time constant | 3.60 ms |
| Mechanical time constant | 2.20 ms |
| Thermal time constant | 25 min |
| Shaft torsional stiffness | 6500 Nm/rad |
| Motor type | Permanent-magnet synchronous |
| Shaft height | 36 |
| Cooling | Natural cooling |
| Radial runout tolerance | 0.035 mm |
| Concentricity tolerance | 0.08 mm |
| Axial runout tolerance | 0.08 mm |
| Vibration severity grade Grade | A |

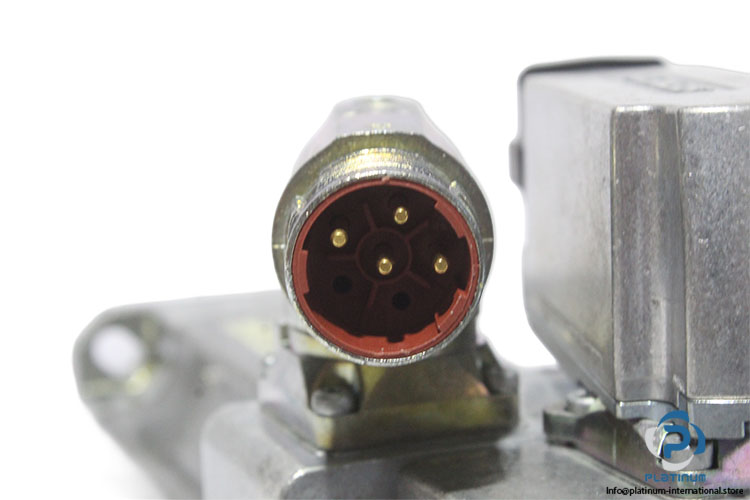

| Connector size | M23 |
| Degree of protection | IP64 |
| Design acc. to Code | I IM B5 (IM V1, IM V3) |
| Temperature monitoring | KTY84 temperature sensor in the |
| Input voltage | 330 V |
| Maximum current | 7.0 A |
| Rated inverter current | 3 A |
| Maximum inverter current | 6 A |
| Maximum torque | 3.90 Nm |
| Shaft end | Plain shaft |
| Encoder system | Encoder AM20DQ M42: absolute encoder 20 bits (resolution 1048576, encoder-internal 512 S/R) + 12 bits multi-turn (traversing range 4096 revolutions |

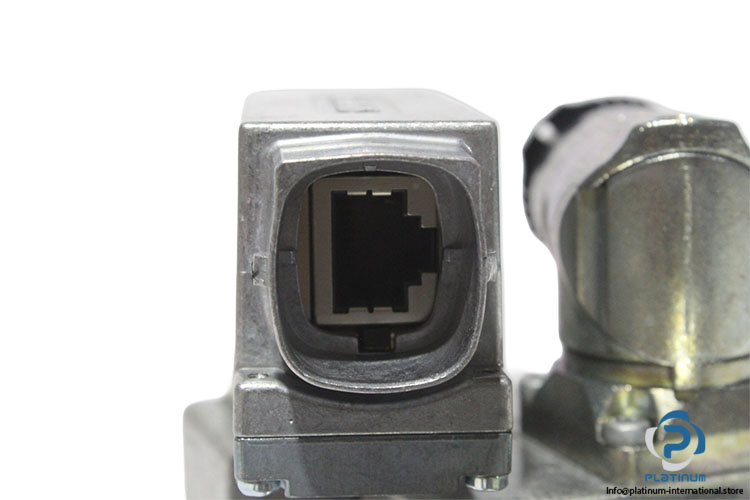

| Electrical connectors | Circular connector |

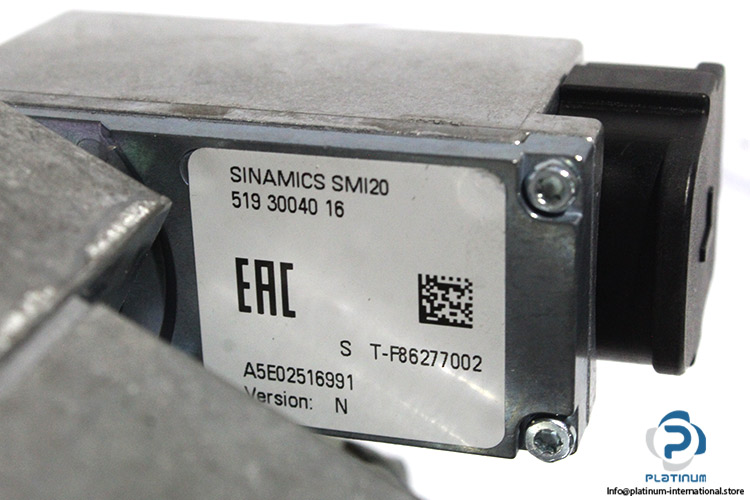

| Attached with | Siemens SINAMICS SMI20 Sensor Module (part numbers 519 30040 16 and A5E02516991) |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100406 |
| Weight | 4,4 |
