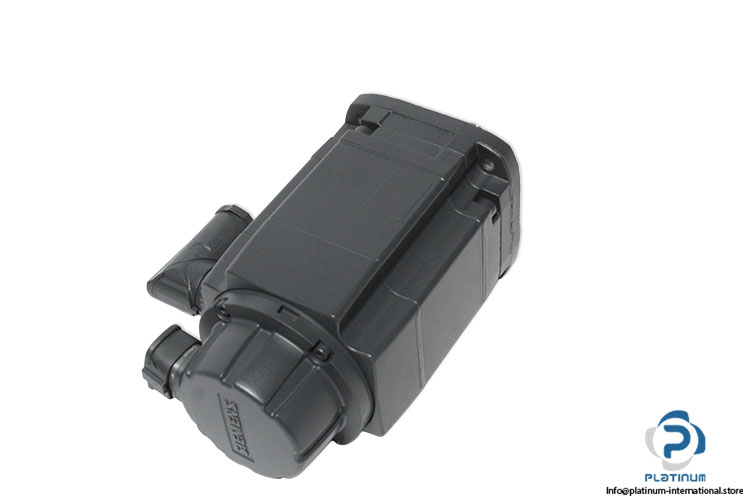

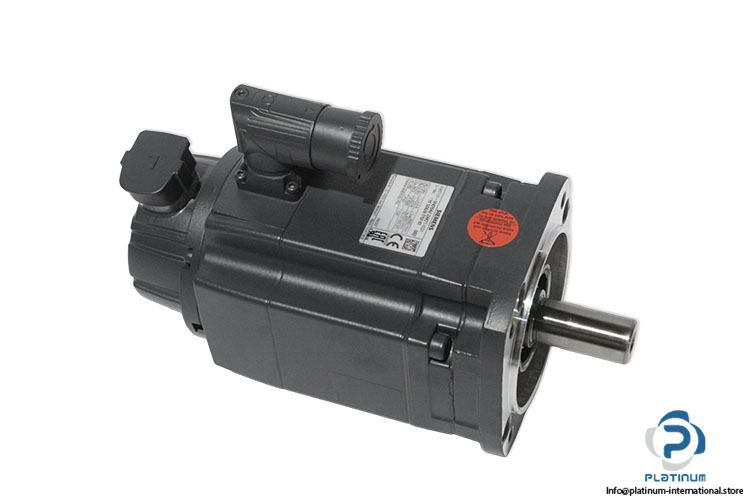

Siemens 1FK7042-2AK71-1CG1 Servomotor
New
In stock2 unitsReady to ship
2 444,44$
Synchronous Servo Motor The SIEMENS 1FK7042-2AK71-1CG1 is a compact permanent-magnet synchronous servo motor from the SIMOTICS 1FK7 series, delivering 6000 rpm speed, 1.5 Nm torque, and IP65 protection with high-precision encoder system.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Drive Family | SIMOTICS |
| Series | 1FK7 |

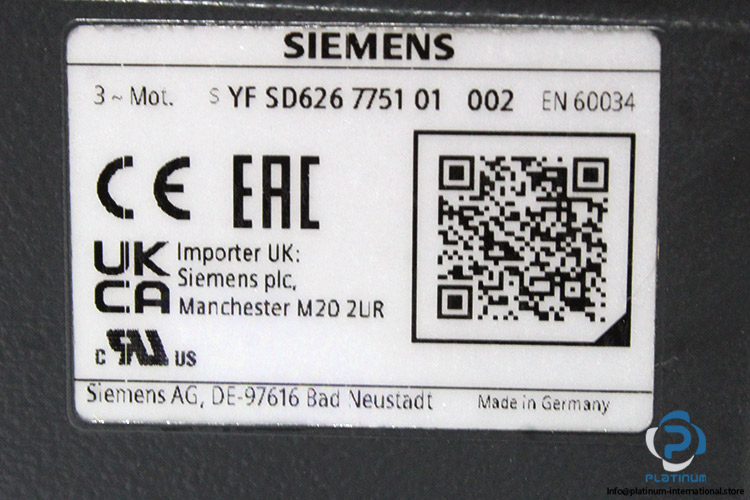

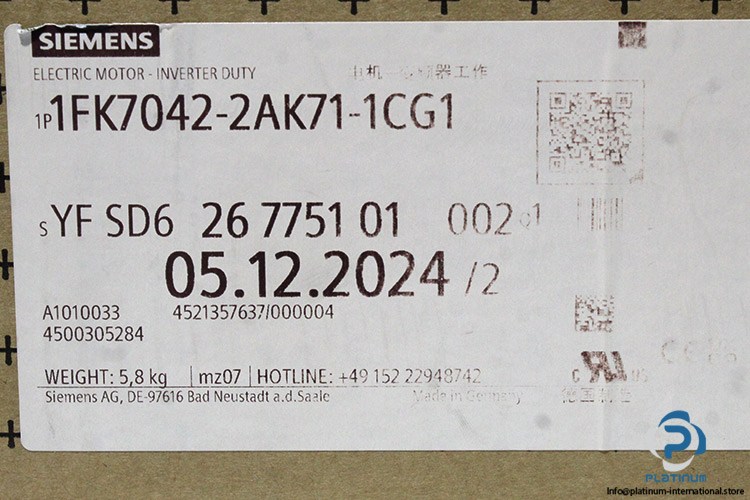

| YF.NO. | SD6 26 7751 01 002 |
| Code | A1010033 4521357637/000004/ 4500305284 |

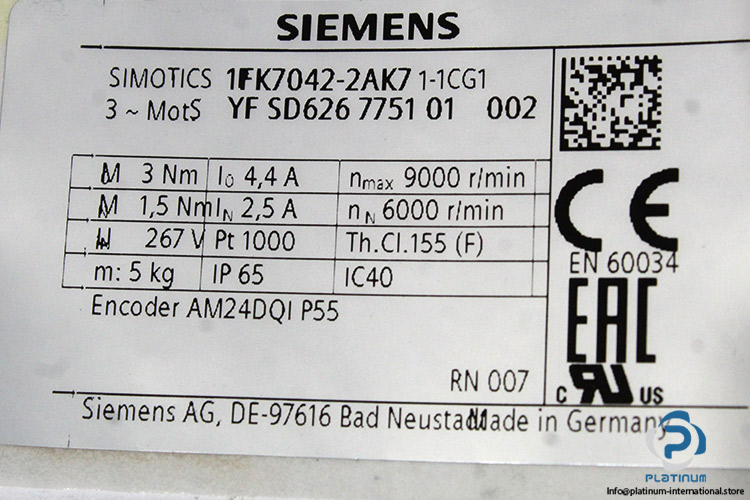

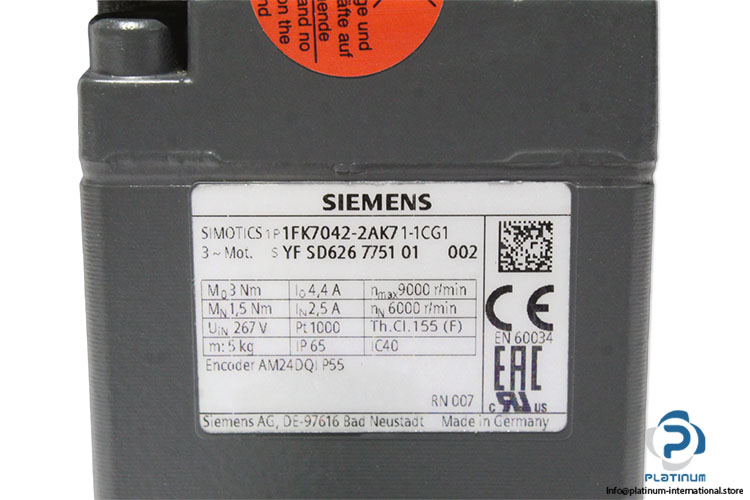

| Encoder model | AM20DQI P55 |
| Rated Voltage | 267 v |
| Standard | EN 60034 |
| Rated speed (100 K) | 6,000 rpm |
| Number of poles | 8 |
| Rated torque (100 K) | 1.5 Nm |
| Rated current | 2.5 A |
| Static torque (60 K) | 2.5 Nm |
| Static torque (100 K) | 3 Nm |
| Stall current (60 K) | 3.55 A |
| Stall current (100 K) | 4.4 A |
| Moment of inertia | 3.580 kgcm² |
| Torque constant | 0.68 Nm/A |
| Voltage constant at 20º C | 44.5 V/1000*min¯¹ |
| Shaft torsional stiffness | 15,500 Nm/rad |
| Motor type | Permanent-magnet synchronous motor |
| Shaft height | 48 |
| Cooling | Natural cooling |
| Vibration severity grade | Grade A |
| Degree of protection | IP65 |
| Design acc. to Code I | IM B5 (IM V1, IM V3) |
| Temperature monitoring | Pt1000 temperature sensor |

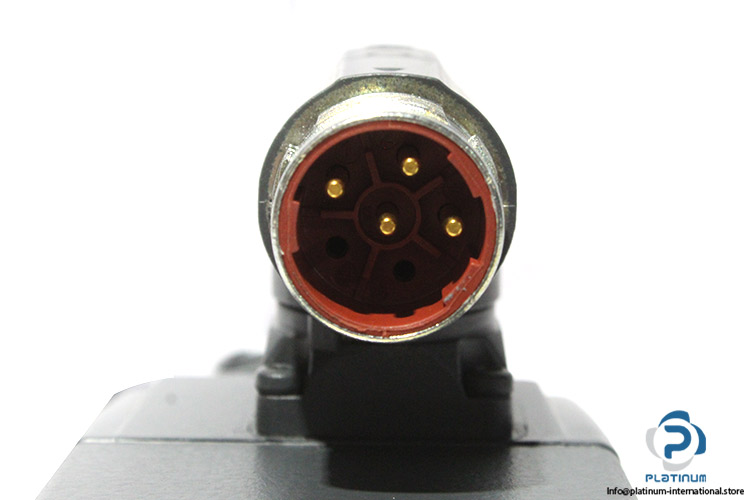

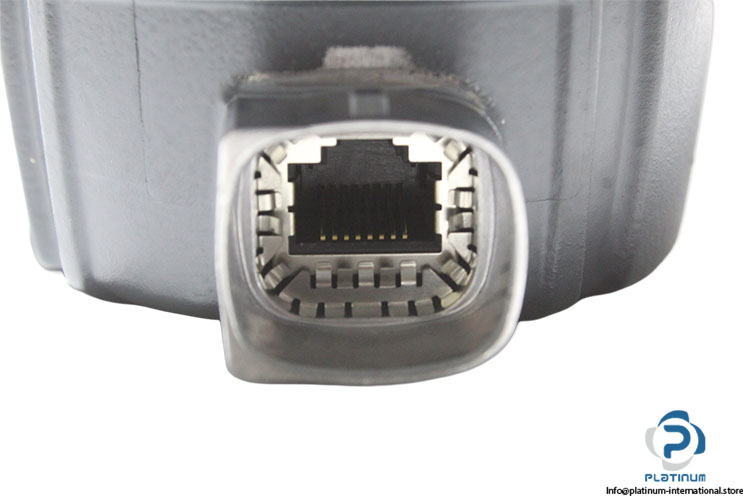

| Electrical connectors | circular connector power and RJ45 connector Encoder |
| Holding brake | without holding brake |
| Shaft end | Plain shaft |
| Encoder system | Encoder AM24DQI: absolute encoder 24 bits (resolution 16777216, encoder-internal 2048 S/R) + 12 bits multi-turn (traversing range 4096 revolutions) |
| Stock key | jo-004 |
| Condition | New |
| SKU | 1096849 |
| Weight | 6 |
